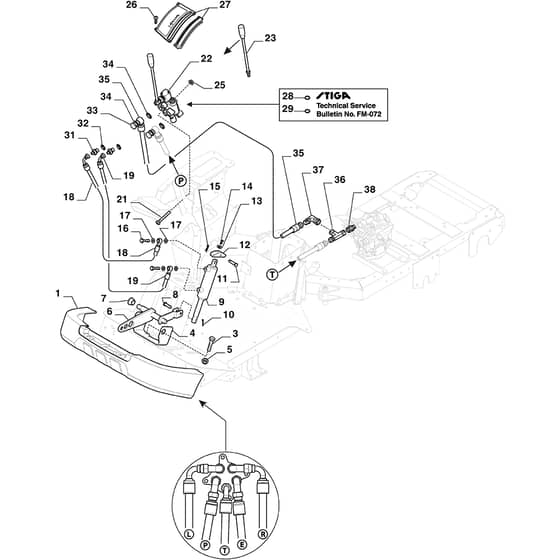

PARK PRO 540 IX - 2021 - 2F6430831/ST1P - Stiga Front Mower Hydraulic Lift Diagram

Description

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2021

Model Type - P 901 PH

Art.N - 2F6430831/ST1P

Engine Model - GXV630

	Part No.	Details
1	MO337502502/0 Available to backorder	Bumper	£40.82 £34.02
3	MO112794300/0 Available to backorder	Screw	£1.84 £1.53
4	MO337774007/0 Available to backorder	Fulcrum Clamp	£38.00 £31.67
5	MO112156602/0 In stock	Nut	£1.39 £1.16
6	MO387256051/0 Available to backorder	Lift Lever	£122.46 £102.05
7	MO1134-2684-01 Available to backorder	Bearing	£6.77 £5.64
8	MO1134-4817-01 Available to backorder	Pin	£12.67 £10.56
9	MO1137-0071-01 Available to backorder	Hydraulic Cylinder	£358.98 £299.15
10	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
11	MO1134-4816-01 Available to backorder	Pin	£13.15 £10.96
12	MO1134-4815-01 Available to backorder	Cylinder Bracket	£57.71 £48.09
13	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
14	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
14	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
16	MO1134-4826-01 Available to backorder	Banjo Bolt	£15.49 £12.91
17	MO1134-4947-01 Available to backorder	Washer	£5.34 £4.45
19	MO1137-0193-01 Available to backorder	Hydraulic Hose	£91.50 £76.25
21	MO112727799/0 Available to backorder	Screw	£1.84 £1.53
22	MO187145001/0 Available to backorder	Hand Operated Valve	£485.68 £404.73
23	MO187318253/0 Available to backorder	Operating Lever	£55.15 £45.96
25	MO112292102/0 In stock	Nut	£1.70 £1.42
26	MO112728706/0 In stock	Screw	£1.60 £1.33
27	MO387559003/0 Available to backorder	Plate	£39.42 £32.85
28	MO118870328/0 Available to backorder	O-Ring Service Bulletin FM-072	£5.06 £4.22
29	MO118870329/0 Available to backorder	O-Ring Service Bulletin FM-072	£5.06 £4.22
31	MO1134-4824-01 Available to backorder	Adapter	£11.54 £9.62
32	MO1134-4948-01 Available to backorder	Washer	£2.69 £2.24
33	MO1134-6323-01 Available to backorder	Banjo Bolt 3.8	£10.14 £8.45
34	MO1134-4948-02 Available to backorder	Washer	£2.11 £1.76
35	MO387869509/1 Available to backorder	Oil Hose	£90.08 £75.07
36	MO112375000/0 Available to backorder	Tube Connection	£14.99 £12.49
37	MO112000401/0 Available to backorder	Tube Connection	£12.53 £10.44
