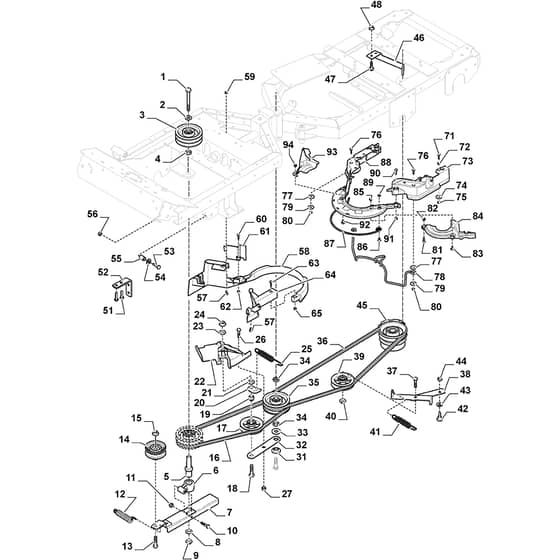

PARK PRO 540 IX - 2020-2021 - 2F6430831/ST1 - Stiga Front Mower PTO Diagram

Description

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2020-2021

Model Type - P 901 PH

Art.N - 2F6430831/ST1

Engine Model - GXV630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9997-1011-06 Available to backorder	Screw	£10.98 £9.15
2	MO9699-0030-02 In stock	Washer	£1.97 £1.64
3	MO387605002/0 Available to backorder	Centre Belt Pulley	£83.06 £69.22
4	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
5	MO1134-5663-01 Available to backorder	Shaft	£46.46 £38.72
6	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
7	MO1134-5660-01 Available to backorder	Tension Arm Assy	£45.04 £37.53
10	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
12	MO1134-5824-01 In stock	Spring	£5.48 £4.57
14	MO387605013/0 In stock	Tension Roller Assy	£42.23 £35.19
16	MO1134-9098-01 In stock	V-Belt Replaced by Service Code. 1134-9098-01	£25.24 £21.03
18	MO9997-1070-12 In stock	Screw	£3.52 £2.93
19	MO1134-1888-06 Available to backorder	Spacer	£8.94 £7.45
20	MO337546545/0 Available to backorder	Spring	£5.21 £4.34
21	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
22	MO337600001/2 Available to backorder	Protection	£9.28 £7.73
23	MO112521360/0 In stock	Washer	£1.55 £1.29
25	MO1134-5713-04 Available to backorder	Spring	£7.61 £6.34
26	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
31	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
32	MO1134-1730-02 In stock	Tensioning Wheel Arm	Was £40.10 £33.42 Special Price £24.55 £20.46
33	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
36	MO1134-9097-01 In stock	Drive Belt Service code for Belt. 9585-0147-01	£48.48 £40.40
37	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
38	MO1134-5742-01 Available to backorder	Tension Arm	£39.42 £32.85
39	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
40	MO9739-1031-22 In stock	Nut	£1.97 £1.64
41	MO1134-5713-03 Available to backorder	Spring	£13.81 £11.51
42	MO1134-0240-00 In stock	Screw	£8.80 £7.33
43	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO1134-5674-01 Available to backorder	Magnet Clutch	£450.47 £375.39
46	MO1134-6452-01 Available to backorder	Strut	£27.17 £22.64
47	MO9959-0820-16 In stock	Screw	£1.55 £1.29
48	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
51	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
52	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
53	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
54	MO112523050/0 In stock	Washer	£1.55 £1.29
55	MO1134-1565-14 Available to backorder	Spacer	£1.82 £1.52
57	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
58	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
94	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
