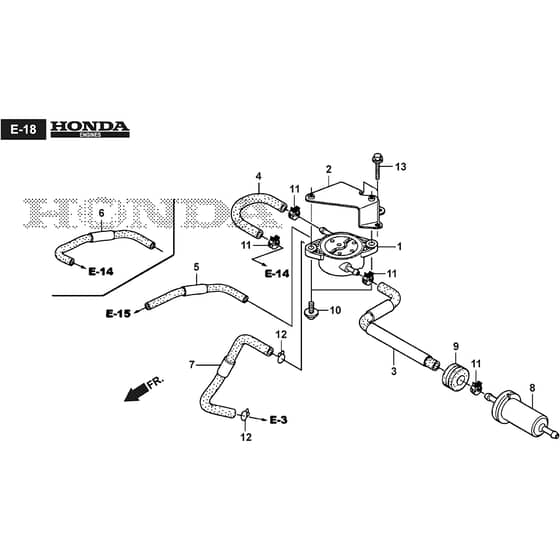

PARK PRO 540 IX - 2020-2021 - 2F6430831/ST1 - Stiga Front Mower Fuel Pump Diagram

Description

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2020-2021

Model Type - P 901 PH

Art.N - 2F6430831/ST1

Engine Model - GXV630

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16700-Z6L-003 Available to backorder	Pump Assy. Fuel	£61.96 £51.63
2	HP16711-Z6M-000 Available to backorder	Stay. Fuel Pump	£18.80 £15.67
3	HP16850-Z6L-020 Available to backorder	Tube Comp. A. Fuel (Fkm)	£27.44 £22.87
4	HP16861-Z6M-003 Available to backorder	Tube B. Fuel (Fkm)	£9.82 £8.18
5	HP16870-Z6M-000 Available to backorder	Tube Comp. Purge	£4.70 £3.92
7	HP16882-Z6M-000 Available to backorder	Tube. Diaphragm	£9.53 £7.94
8	HP16910-Z6L-003 In stock	Strainer Comp. Fuel	£13.31 £11.09
9	HP80152-958-680 Available to backorder	Rubber. Rr. Fender	£7.36 £6.13
10	HP90101-Z22-000 Available to backorder	Screw. Truss. 6X12	£1.56 £1.30
11	HP95002-4100008 Available to backorder	Clamp. Tube (D10)	£1.86 £1.55
12	HP95002-70000 Available to backorder	Clip. Tube (C11)	£1.04 £0.87
