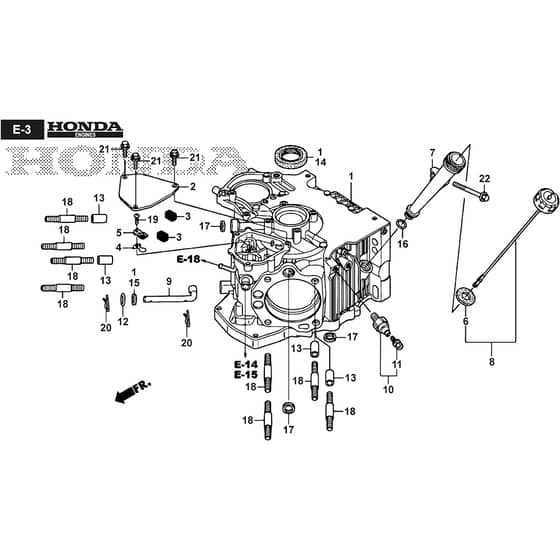

PARK PRO 540 IX - 2020-2021 - 2F6430831/ST1 - Stiga Front Mower Crankcase Diagram

Name: PARK PRO 540 IX - 2020-2021 - 2F6430831/ST1 - Stiga Front Mower Crankcase Diagram
SKU: park_pro_540_ix_2f6430831_st1_crankcase-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 540 IX - 2020-2021 - 2F6430831/ST1 - Stiga Front Mower Crankcase Diagram

Description

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2020-2021

Model Type - P 901 PH

Art.N - 2F6430831/ST1

Engine Model - GXV630

Be the first to review this product

0 product questions

	Part No.	Details
2	HP12356-Z6L-000 Available to backorder	Cover. Breather	£16.15 £13.46
3	HP12367-Z6M-000 Available to backorder	Filter. Breather	£8.34 £6.95
4	HP15571-ZM7-003 Available to backorder	Valve. Oil Outlet	£3.37 £2.81
5	HP15572-Z6L-000 Available to backorder	Plate. Stopper	£2.28 £1.90
6	HP15625-Z6L-000 Available to backorder	Packing. Oil Filler Cap	£7.30 £6.08
7	HP15631-Z6M-000 Available to backorder	Extension. Oil Filler	£27.52 £22.93
8	HP15650-Z6M-000 Available to backorder	Gauge Assy. Oil Level	£26.54 £22.12
9	HP16541-Z6L-010 Available to backorder	Shaft. Governor Arm	£41.75 £34.79
10	HP37240-ZG5-004 Available to backorder	Switch. Oil Pressure	£53.09 £44.24
11	HP90002-ZG5-004 Available to backorder	Screw-Washer. 4X8	£10.48 £8.73
12	HP90404-Z6L-000 Available to backorder	Washer. Plain (10mm)	£5.42 £4.52
13	HP90709-Z6L-000 Available to backorder	Dowel Pin. 12X20	£7.72 £6.43
14	HP91201-Z6L-003 Available to backorder	Oil Seal. 38X58X9	£11.33 £9.44
15	HP91203-Z6L-003 Available to backorder	Oil Seal. 10X16X5	£5.65 £4.71
16	HP91301-Z6L-003 Available to backorder	O-Ring. 14.8X2.4	£2.68 £2.23
17	HP91308-Z6L-003 Available to backorder	Packing. Oil Pass	£5.41 £4.51
18	HP92900-100400B Available to backorder	Bolt. Stud. 10X40	£2.76 £2.30
19	HP93500-030080A Available to backorder	Screw. Pan. 3X8	£1.50 £1.25
20	HP94251-10000 Available to backorder	Pin. Lock. 10mm	£1.66 £1.38
21	HP95701-0601400 Available to backorder	Bolt. Flange. 6X14	£0.92 £0.77
