PARK PRO 540 IX - 2020-2021 - 2F6430831/ST1 - Stiga Front Mower Body Diagram

Description

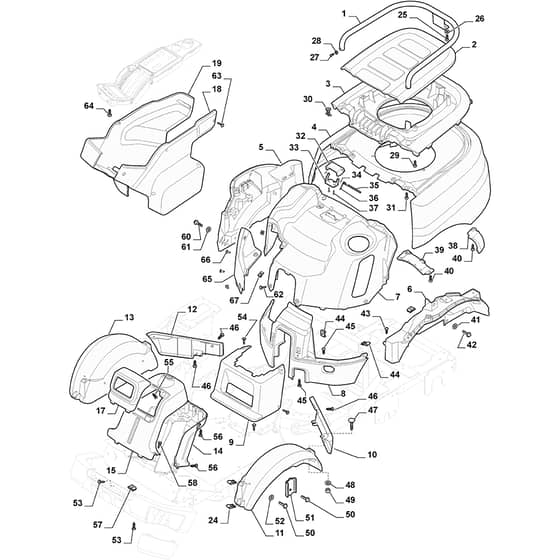

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2020-2021

Model Type - P 901 PH

Art.N - 2F6430831/ST1

Engine Model - GXV630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387594001/0 Available to backorder	Handle	£81.66 £68.05
2	MO337110302/0 Available to backorder	Engine Cover (Grey)	£43.64 £36.37
3	MO337110301/0 Available to backorder	Engine Cover (Grey)	£64.75 £53.96
4	MO337076801/0 Available to backorder	Engine Cover. Yellow	£190.04 £158.37
5	MO337110304/0 Available to backorder	Black Wheels Cover. Right	£128.82 £107.35
6	MO337110305/0 Available to backorder	Black Wheels Cover. Left	£116.84 £97.37
7	MO337110328/0 Available to backorder	Engine Front Cover From S.N 20CA1FMV000001	£78.84 £65.70
8	MO337502500/0 Available to backorder	Spoiler-Grey	£68.99 £57.49
9	MO337207100/0 Available to backorder	Cover	£24.22 £20.18
10	MO337110311/0 Available to backorder	Moulding-Left (Grey)	£14.35 £11.96
11	MO337491251/0 Available to backorder	Mud Guard. Front-Lh	£109.79 £91.49
12	MO337110312/0 Available to backorder	Moulding Right-Grey	£14.35 £11.96
13	MO337491250/0 Available to backorder	Mud Guard. Front-Rh	£115.43 £96.19
14	MO337110307/0 Available to backorder	Rear Cover. Grey	£19.70 £16.42
15	MO337110306/0 Available to backorder	Front Panel	£47.58 £39.65
17	MO337110308/0 Available to backorder	Lamp Holder	£8.74 £7.28
18	MO337110310/0 Available to backorder	Cover	£56.32 £46.93
19	MO337110309/0 Available to backorder	Cover	£63.35 £52.79
28	MO112521460/0 Available to backorder	Washer	£1.40 £1.17
29	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
30	MO125580020/2 In stock	Stake	£8.29 £6.91
31	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
32	MO337394200/0 Available to backorder	Handle	£3.67 £3.06
33	MO337785021/0 Available to backorder	Support	£15.90 £13.25
34	MO112000915/0 Available to backorder	Benzing Ring	£1.55 £1.29
35	MO137510300/0 Available to backorder	Pin	£5.64 £4.70
36	MO137430100/0 Available to backorder	Spring	£5.48 £4.57
38	MO337109532/0 Available to backorder	Cover	£3.94 £3.28
39	MO337109531/0 Available to backorder	Cover	£3.94 £3.28
47	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
48	MO112523040/0 In stock	Washer	£1.49 £1.24
49	MO112154510/0 In stock	Nut	£1.55 £1.29
51	MO1137-0088-01 Available to backorder	Support Plate	£2.26 £1.88
56	MO9943-0516-16 In stock	Screw	£1.22 £1.02
60	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
61	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
63	MO112727796/0 Available to backorder	Screw	£1.55 £1.29
64	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
65	MO337487520/0 Available to backorder	Cover	£13.31 £11.09
66	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
67	MO1134-4176-01 Available to backorder	Clip	£4.78 £3.98
