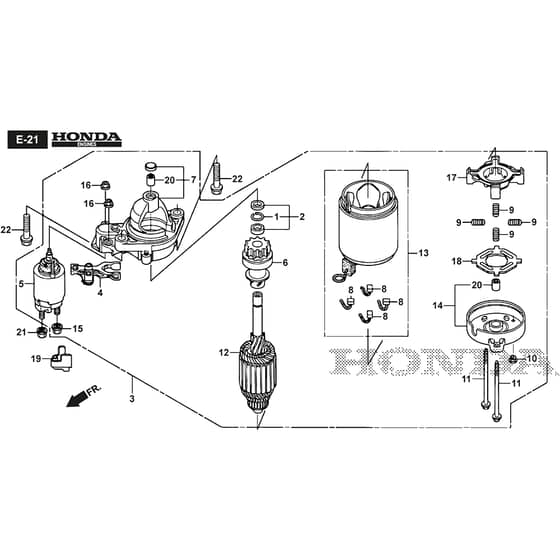

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2015-2019

Model Type - P 901 PH

Art.N - 13-6471-11

Engine Model - Honda GXV660

Be the first to review this product

0 product questions

	Part No.	Details
1	HP30201-PH9-004 Available to backorder	Ring. Snap (Denso)	£1.94 £1.62
2	HP30202-PZ1-003 Available to backorder	Collar Set. Clutch Stop	£18.59 £15.49
3	HP31200-Z6M-003 Available to backorder	Motor Assy. Starter	£408.00 £340.00
4	HP31203-PH9-004 Available to backorder	Lever. Pinion Drive	£26.39 £21.99
5	HP31204-Z6M-003 Available to backorder	Switch Assy. Magnet	£200.52 £167.10
6	HP31207-Z6M-003 Available to backorder	Clutch Comp. Overrunning	£162.24 £135.20
7	HP31208-Z6M-003 Available to backorder	Housing Comp. Drive Side	£160.92 £134.10
8	HP31211-PH9-004 Available to backorder	Brush	£15.23 £12.69
9	HP31212-PH9-004 Available to backorder	Spring. Brush	£5.56 £4.63
10	HP31213-P64-N01 Available to backorder	Cover	£6.88 £5.73
11	HP31214-PH9-004 Available to backorder	Bolt. Through	£9.31 £7.76
12	HP31217-Z0A-003 Available to backorder	Armature Comp.	£337.92 £281.60
13	HP31218-P64-N01 Available to backorder	Yoke Comp.	£268.92 £224.10
14	HP31219-Z6M-003 Available to backorder	Frame Comp. Commutator End	£91.38 £76.15
15	HP31220-PH9-004 Available to backorder	Nut. Hex. 8mm	£7.40 £6.17
16	HP31223-PA0-006 Available to backorder	Nut. Hex. (6mm)	£3.80 £3.17
17	HP31231-PH9-004 Available to backorder	Holder. Brush	£52.50 £43.75
18	HP31233-PH9-004 Available to backorder	Insulator. Brush Holder	£40.28 £33.57
19	HP31234-Z6L-000 Available to backorder	Cover. Terminal	£7.57 £6.31
20	HP91002-ZG4-801 Available to backorder	Bearing A	£12.42 £10.35
21	HP94070-08080 Available to backorder	Nut-Washer. 8mm	£3.22 £2.68
