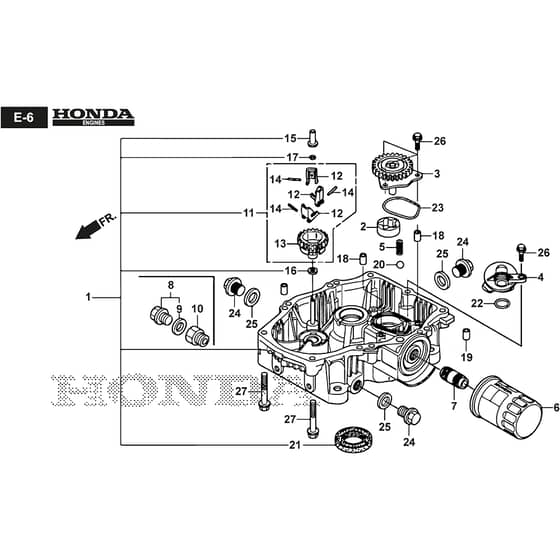

PARK PRO 540 IX - 2015-2019 - 13-6471-11 - Stiga Front Mower Oil Pan Diagram

Name: PARK PRO 540 IX - 2015-2019 - 13-6471-11 - Stiga Front Mower Oil Pan Diagram
SKU: park_pro_540_ix_13_6471_11_oil_pan-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 540 IX - 2015-2019 - 13-6471-11 - Stiga Front Mower Oil Pan Diagram

Description

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2015-2019

Model Type - P 901 PH

Art.N - 13-6471-11

Engine Model - Honda GXV660

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11300-Z6M-010 Available to backorder	Pan Assy. Oil	£673.20 £561.00
2	HP15133-Z6L-000 Available to backorder	Rotor. Oil Pump Outer	£28.10 £23.42
3	HP15140-Z6L-010 Available to backorder	Gear Comp. Oil Pump	£139.20 £116.00
4	HP15220-Z6M-000 Available to backorder	Strainer Comp. Oil	£43.63 £36.36
5	HP15232-Z6L-000 Available to backorder	Spring. Relief Valve	£2.81 £2.34

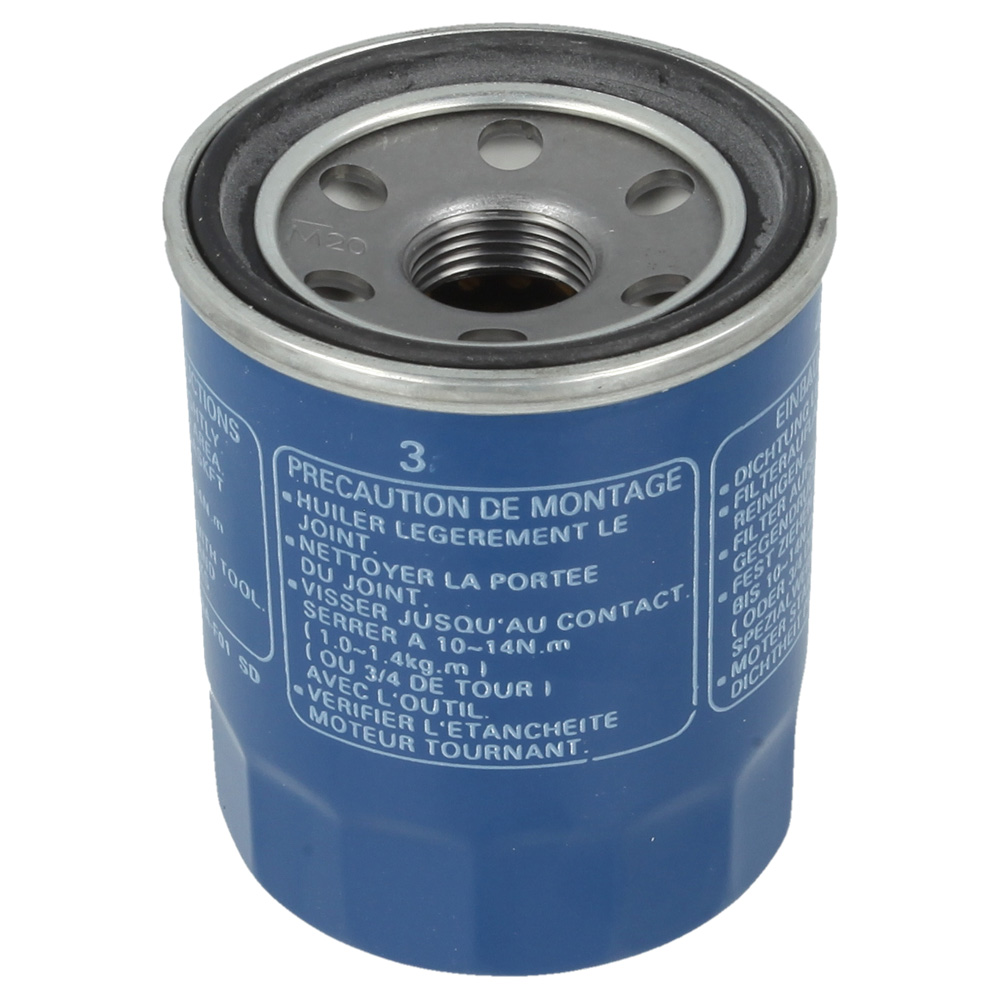

6	HP15400-RBA-F01 In stock	Cartridge. Oil Filter (Mahle Tennex)	£20.92 £17.43
7	HP15423-Z6L-000 Available to backorder	Holder. Oil Filter	£8.03 £6.69
8	HP15550-Z0A-810 Available to backorder	Cap Assy. Drain	£8.83 £7.36
9	HP15625-ZE1-003 Available to backorder	Packing. Oil Filler Cap	£4.57 £3.81
11	HP16510-Z6L-010 Available to backorder	Governor Assy.	£29.30 £24.42
12	HP16511-Z6L-310 Available to backorder	Weight. Governor	£7.00 £5.83
13	HP16512-Z6L-310 Available to backorder	Holder. Governor Weight	£14.62 £12.18
14	HP16513-Z6L-000 Available to backorder	Pin. Governor Weight	£3.01 £2.51
15	HP16531-Z6L-000 Available to backorder	Slider. Governor	£4.01 £3.34
16	HP90403-Z6L-000 Available to backorder	Washer. 6X16	£5.03 £4.19
17	HP90602-ZE1-000 Available to backorder	Clip. Governor Holder	£3.70 £3.08
18	HP90707-Z6L-000 Available to backorder	Dowel Pin. 8X10	£5.10 £4.25
19	HP90708-Z6L-000 Available to backorder	Dowel Pin. 8X14	£5.10 £4.25
20	HP90902-Z6L-000 Available to backorder	Ball. Steel. #15 (15.32)	£3.01 £2.51
21	HP91202-Z6L-003 Available to backorder	Oil Seal. 38X58X9	£11.33 £9.44
22	HP91301-Z6L-003 Available to backorder	O-Ring. 14.8X2.4	£2.68 £2.23
23	HP91302-Z6M-003 Available to backorder	O-Ring. Oil Pump	£5.60 £4.67
25	HP94109-20000 Available to backorder	Washer. Drain Plug. 20mm	£1.19 £0.99
26	HP95701-0602000 Available to backorder	Bolt. Flange. 6X20	£1.31 £1.09
