PARK PRO 540 IX - 2015-2019 - 13-6471-11 - Stiga Front Mower Fan Cover Diagram

Description

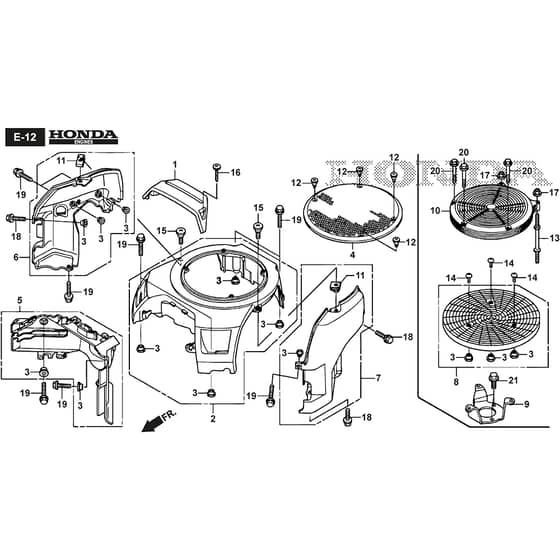

Stiga PARK PRO 540 IX Parts Diagram

Product Name - PARK PRO 540 IX

Model Year - 2015-2019

Model Type - P 901 PH

Art.N - 13-6471-11

Engine Model - Honda GXV660

	Part No.	Details
1	HP16715-Z6L-000 Available to backorder	Cover. Fuel Pump	£23.75 £19.79
2	HP19610-Z6M-000ZB Available to backorder	Cover Comp. Fan Nh1	£138.12 £115.10
2	HP19610-Z6M-000ZA Available to backorder	Cover Comp. Fan R280	£138.12 £115.10
3	HP19619-Z0A-300 Available to backorder	Collar. Fan Cover	£3.71 £3.09
5	HP19631-Z6M-000 Available to backorder	Shroud. Upper	£61.56 £51.30
6	HP19641-Z6L-000 Available to backorder	Shroud. R. Lower	£81.48 £67.90
7	HP19642-Z6L-000 Available to backorder	Shroud. L. Lower	£95.28 £79.40
8	HP28452-Z6L-800 Available to backorder	Grid. Screen	£38.30 £31.92
9	HP28454-Z6L-800 Available to backorder	Holder. Screen Grid	£45.30 £37.75
11	HP84601-HA7-670 Available to backorder	Nut. Fender Setting	£4.37 £3.64
14	HP90131-S0X-A00 Available to backorder	Screw. Truss. 6X16	£3.52 £2.93
15	HP90380-GM9-740 Out of stock	Screw. Special. 6X15	£3.94 £3.28
16	HP93913-25580 Available to backorder	Screw. Tapping. 5X20	£1.51 £1.26
18	HP95701-0601608 Available to backorder	Bolt. Flange. 6X16	£1.32 £1.10
19	HP95701-0602000 Available to backorder	Bolt. Flange. 6X20	£1.32 £1.10
