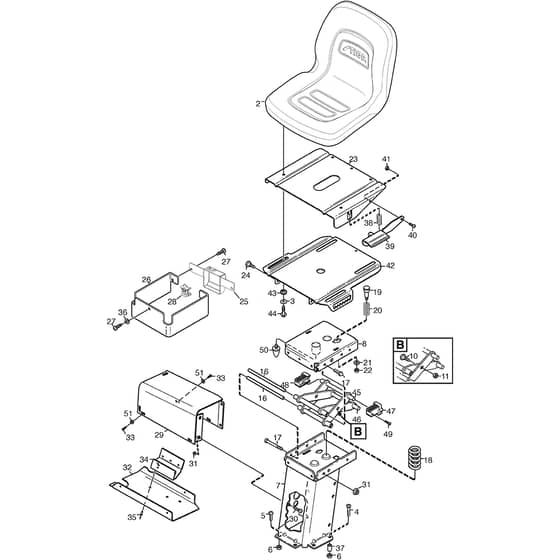

PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Seat Diagram

Name: PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Seat Diagram
SKU: park_pro_340_x_13_6269_31_seat-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Seat Diagram

Description

Stiga PARK PRO 340 X Parts Diagram

Product Name - PARK PRO 340 X

Model Year - 2015

Model Type - P 901 P

Art.N - 13-6269-31

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO137722602/1 Available to backorder	Seat	£422.32 £351.93
3	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
4	MO9897-0880-12 Available to backorder	Screw L . 80 mm	£1.97 £1.64
7	MO1137-0057-01 Available to backorder	Seat Bracket Assy	£121.07 £100.89
8	MO387773509/0 Available to backorder	Bracket	£89.11 £74.26
16	MO1137-0263-01 Available to backorder	Shaft	£9.28 £7.73
18	MO1134-4160-01 Available to backorder	Spring	£24.64 £20.53
19	MO137510304/0 Available to backorder	Push Pin	£16.19 £13.49
20	MO137430101/0 Available to backorder	Spring	£13.37 £11.14
21	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Nut	£1.55 £1.29
23	MO1134-6090-01 Available to backorder	Slide Plate-Upper	£98.54 £82.12
24	MO1134-0240-00 In stock	Screw	£8.80 £7.33
25	MO387602511/0 Available to backorder	Protection	£35.20 £29.33
26	MO1137-0038-01 Available to backorder	Cover	£39.42 £32.85
28	MO1134-3156-01 Available to backorder	Switch	£43.64 £36.37
29	MO1134-3990-01 Available to backorder	Attachment-Side Panel	£175.97 £146.64
30	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
31	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
32	MO1134-4130-01 Available to backorder	Cover Lower	£39.42 £32.85
33	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
34	MO1134-4135-01 Available to backorder	Relay Holder	£16.68 £13.90
35	MO9632-0522-00 Available to backorder	Pop Rivet	£2.12 £1.77
36	MO9699-0087-02 In stock	Washer	£2.12 £1.77
37	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
38	MO1134-3262-01 Available to backorder	Spring	£8.45 £7.04
39	MO1134-6073-01 Available to backorder	Handle Assy	£39.42 £32.85
40	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
41	MO112154510/0 In stock	Nut	£1.55 £1.29
42	MO387773513/0 Available to backorder	Bracket	£94.32 £78.60
43	MO1134-6078-01 Available to backorder	Flange Washer	£5.48 £4.57
44	MO112793301/0 In stock	Screw	£1.55 £1.29
45	MO1137-0260-01 Available to backorder	Link Assy A	£64.48 £53.73
46	MO1137-0261-01 Available to backorder	Link Assy B	£64.75 £53.96
47	MO1137-0033-01 Available to backorder	Block	£2.95 £2.46
48	MO1137-0033-02 Available to backorder	Block	£2.95 £2.46
49	MO112728697/0 In stock	Screw	£1.55 £1.29
50	MO1137-0064-01 Available to backorder	Rubber Cone	£40.54 £33.78
51	MO112521320/0 Available to backorder	Washer M5 5.3 X 10 X 1	£1.55 £1.29
