PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Pedal Lift Diagram

Description

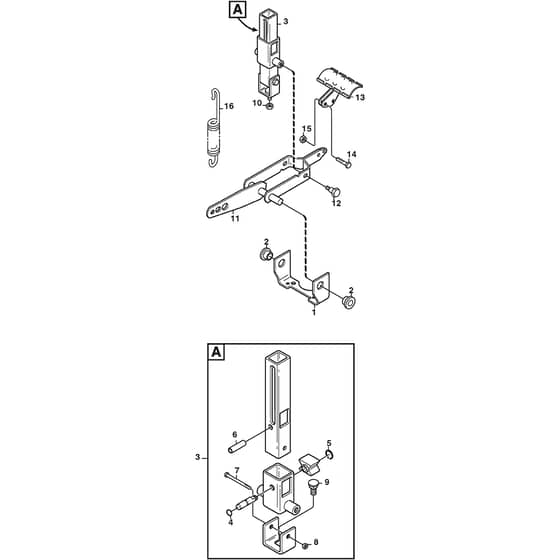

Stiga PARK PRO 340 X Parts Diagram

Product Name - PARK PRO 340 X

Model Year - 2015

Model Type - P 901 P

Art.N - 13-6269-31

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO1134-4117-01 Available to backorder	Bracket	£30.98 £25.82
2	MO1134-2684-01 Available to backorder	Bearing	£6.77 £5.64
3	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.96 £99.13
5	MO9650-0039-04 Available to backorder	Lock Ring	£2.11 £1.76
6	MO9595-0276-01 Available to backorder	Locating Pin	£3.10 £2.58
7	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
8	MO112154510/0 In stock	Nut	£1.55 £1.29
9	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
10	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO1134-0240-00 In stock	Screw	£8.80 £7.33
13	MO1134-4938-01 Available to backorder	Lift Pedal	£24.02 £20.02
14	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
15	MO112292102/0 In stock	Nut	£1.70 £1.42
16	MO4231-0013-00 In stock	Spring	£8.53 £7.11
