PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower KPL-10ALP Diagram

Description

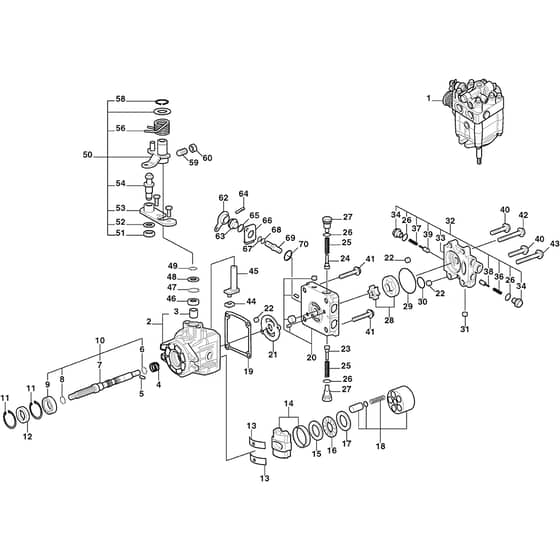

Stiga PARK PRO 340 X Parts Diagram

Product Name - PARK PRO 340 X

Model Year - 2015

Model Type - P 901 P

Art.N - 13-6269-31

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5700-01 Available to backorder	Hydraulic Pump	£3,042.18 £2,535.15
5	MO1139-1148-01 Available to backorder	Pin	£4.52 £3.77
6	MO1139-1021-01 Available to backorder	Snap Ring	£4.52 £3.77
12	MO1139-1396-01 Available to backorder	Seal	£23.34 £19.45
19	MO1139-1515-01 Available to backorder	Case Gasket	£16.20 £13.50
21	MO1139-1513-01 Available to backorder	Valve Plate	£107.40 £89.50
22	MO1139-1166-01 Available to backorder	Pin	£4.94 £4.12
23	MO1139-1368-01 Available to backorder	Check Valve F	£38.20 £31.83
31	MO1139-2682-01 Available to backorder	Plug (1.8)	£5.93 £4.94
46	MO1139-1365-01 Available to backorder	Oil Seal	£30.66 £25.55
52	MO1139-1102-01 Available to backorder	Washer	£5.76 £4.80
60	MO1139-1127-01 Available to backorder	Nut	£4.52 £3.77
65	MO1139-1115-01 Available to backorder	O-Ring	£4.52 £3.77
