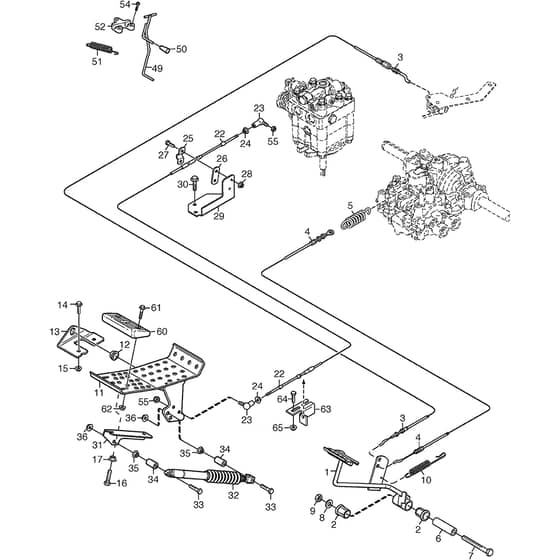

PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Foot Controls Diagram

Name: PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Foot Controls Diagram
SKU: park_pro_340_x_13_6269_31_foot_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Foot Controls Diagram

Description

Stiga PARK PRO 340 X Parts Diagram

Product Name - PARK PRO 340 X

Model Year - 2015

Model Type - P 901 P

Art.N - 13-6269-31

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5655-01 Available to backorder	Clutch Pedal	£57.71 £48.09
2	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.85 £16.54
3	MO137065318/0 Available to backorder	Cable	£35.20 £29.33
4	MO137065319/0 Available to backorder	Cable. Thread Engine Brake	£38.00 £31.67
5	MO1134-5989-01 Available to backorder	Spring	£10.27 £8.56
6	MO1134-5677-02 Available to backorder	Spacer	£11.12 £9.27
7	MO9997-1070-12 In stock	Screw	£3.52 £2.93
8	MO9699-0030-02 In stock	Washer	£1.97 £1.64
9	MO9739-1031-22 In stock	Nut	£1.97 £1.64
10	MO4231-0013-00 In stock	Spring	£8.52 £7.10
11	MO1134-6353-01 Available to backorder	Drive Pedal	£46.46 £38.72
12	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
13	MO1134-2700-01 Available to backorder	Bracket	£17.04 £14.20
14	MO9959-0820-16 In stock	Screw	£1.55 £1.29
16	MO9997-0835-16 Available to backorder	Screw	£1.90 £1.58
17	MO112154220/0 Available to backorder	Nut	£1.55 £1.29

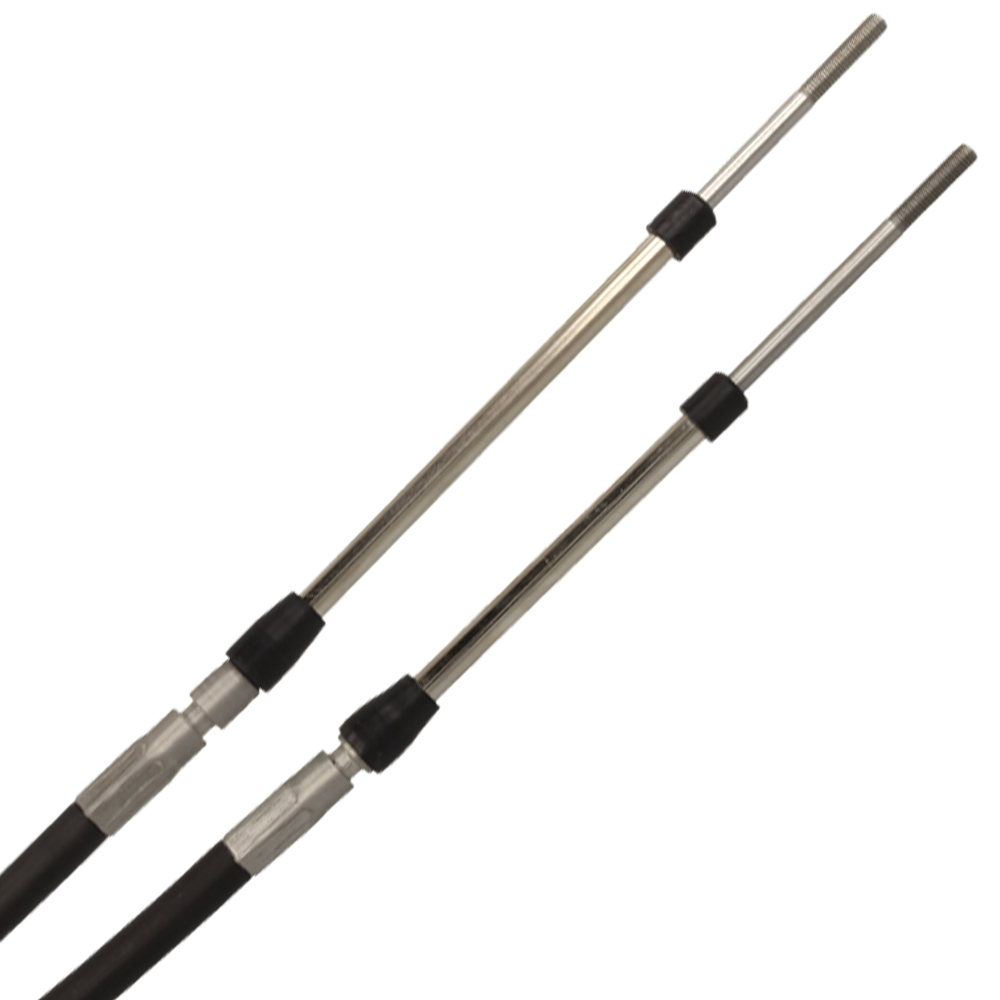

22	MO1134-2766-08 Available to backorder	Control Cable	£81.66 £68.05
23	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
25	MO1134-0266-00 Available to backorder	Attaching Clamp	£7.03 £5.86
26	MO325547443/0 Available to backorder	Clamp Plate	£6.05 £5.04
27	MO112789008/0 Available to backorder	Screw	£1.82 £1.52
28	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
29	MO1134-5689-01 Available to backorder	Cable Bracket	£18.79 £15.66
30	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
32	MO1134-4187-01 Available to backorder	Damper	£137.86 £114.88
33	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
34	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
36	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
50	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
51	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
52	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
54	MO112728697/0 In stock	Screw	£1.55 £1.29
55	MO112154330/0 In stock	Nut	£1.55 £1.29
60	MO1134-6340-02 Available to backorder	Foot Rest	£15.24 £12.70
63	MO1134-6317-01 Available to backorder	Wire Bracket	£8.45 £7.04
64	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
65	MO112292102/0 In stock	Use 112292102.0	£1.69 £1.41
