PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Body Works 02 Diagram

Description

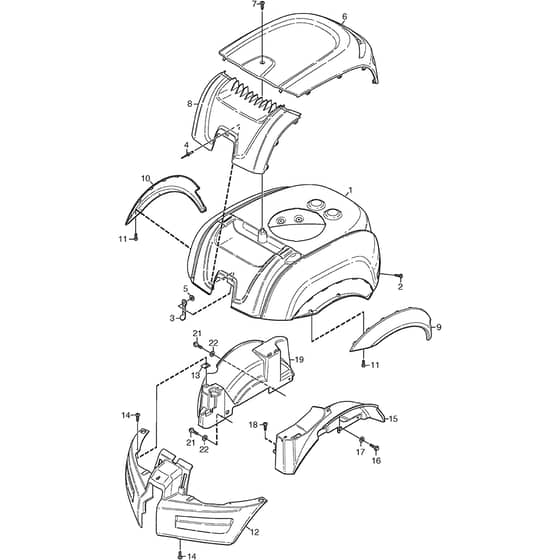

Stiga PARK PRO 340 X Parts Diagram

Product Name - PARK PRO 340 X

Model Year - 2015

Model Type - P 901 P

Art.N - 13-6269-31

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5634-01 Available to backorder	Engine Hood	£323.78 £269.82
3	MO1134-9028-01 Available to backorder	Rubber Strap (3 Pcs) Sats 3 st.kit if 3	£25.86 £21.55
4	MO9632-0513-00 Available to backorder	Pop Rivet	£1.39 £1.16
5	MO9699-0120-02 Available to backorder	Washer	£2.40 £2.00
6	MO1134-5636-01 Available to backorder	Engine Cover	£154.86 £129.05
8	MO1134-5635-01 Available to backorder	Engine Front Cover	£162.67 £135.56
9	MO1134-5638-01 Available to backorder	Wheel Arch Liner-Lh (Light Grey)	£24.05 £20.04
10	MO1134-5638-02 Available to backorder	Wheel Arch Liner-Rh (Dark Grey)	£24.05 £20.04
11	MO112728697/0 In stock	Screw	£1.55 £1.29
12	MO1134-5637-01 Available to backorder	Spoiler	£187.00 £155.83
13	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
15	MO1134-5647-01 Available to backorder	Inner Fender-Lh	£113.03 £94.19
18	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
19	MO1134-5647-02 Available to backorder	Inner Fender-Rh	£113.03 £94.19
21	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
22	MO112523060/0 Available to backorder	Washer M8 8.4 X 24 X 2	£1.55 £1.29
