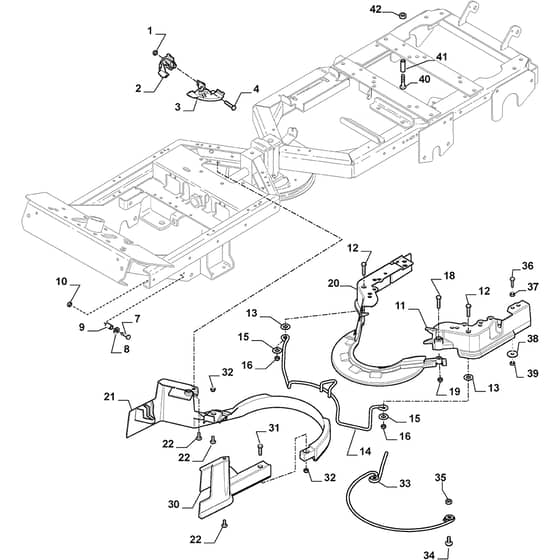

PARK PRO 340 X - 2015 - 13-6269-31 - Stiga Front Mower Belt Protection Diagram

Description

Stiga PARK PRO 340 X Parts Diagram

Product Name - PARK PRO 340 X

Model Year - 2015

Model Type - P 901 P

Art.N - 13-6269-31

Engine Model - B&S Vanguard 18

	Part No.	Details
2	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
3	MO337600011/0 Available to backorder	Protection	£3.92 £3.27
7	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
9	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
11	MO337060006/0 Available to backorder	Belt Cover	£7.87 £6.56
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO337785100/0 Available to backorder	Support	£56.32 £46.93
20	MO337060005/0 Available to backorder	Belt Cover	£8.72 £7.27
21	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
22	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
30	MO337060004/0 Available to backorder	Belt Cover	£10.21 £8.51
31	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
33	MO137294101/0 Available to backorder	Belt Guide	£13.81 £11.51
34	MO112727796/0 Available to backorder	Screw	£1.63 £1.36
35	MO112154330/0 In stock	Nut	£1.55 £1.29
36	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
37	MO112292102/0 In stock	Nut	£1.70 £1.42
38	MO112523050/0 In stock	Washer	£1.57 £1.31
39	MO112154510/0 In stock	Nut	£1.55 £1.29
40	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
41	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
42	MO112155015/0 Available to backorder	Self-Grip Nut M8	£1.70 £1.42
