PARK PRO 340 IX - 2021 - 2F6430621/ST1 - Stiga Front Mower Seat Diagram

Description

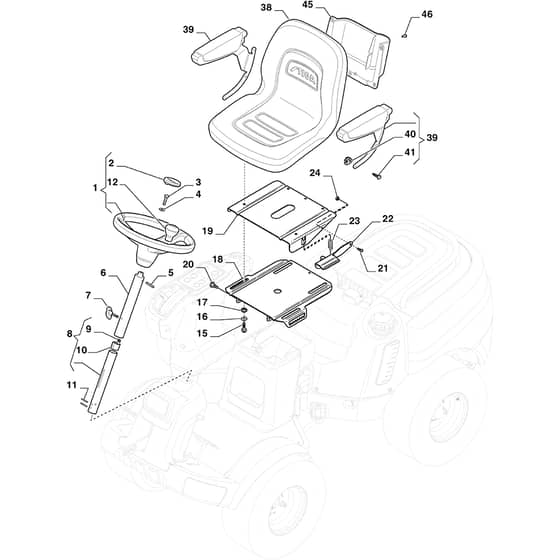

Stiga PARK PRO 340 IX Parts Diagram

Product Name - PARK PRO 340 IX

Model Year - 2021

Model Type - P 901 PH

Art.N - 2F6430621/ST1

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO337961200/0 Available to backorder	Steering Wheel	£344.90 £287.42
2	MO337580550/0 Available to backorder	Steering Plate	£8.72 £7.27
3	MO112793102/0 In stock	Screw	£1.55 £1.29
5	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
6	MO387520101/2 Available to backorder	Steering Column	£92.90 £77.42
7	MO337394201/0 Available to backorder	Wing Nut	£13.25 £11.04
8	MO387520105/1 Available to backorder	Steering Column	£112.62 £93.85
9	MO9710-0631-12 Available to backorder	Nut	£10.02 £8.35
10	MO1134-5177-01 Available to backorder	Slide	£13.15 £10.96
11	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
12	MO187593701/0 Available to backorder	Knob	£47.87 £39.89
15	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
16	MO112583500/0 In stock	Grower	£1.55 £1.29
17	MO1134-6078-01 Available to backorder	Flange Washer	£5.48 £4.57
18	MO1137-0055-01 Available to backorder	Slide Plate-Lower Assy	£97.14 £80.95
19	MO1134-6090-01 Available to backorder	Slide Plate-Upper	£98.56 £82.13
20	MO1134-0240-00 In stock	Screw	£8.80 £7.33
21	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
22	MO1134-6073-01 Available to backorder	Handle Assy	£39.42 £32.85
23	MO1134-3262-01 Available to backorder	Spring	£8.45 £7.04
24	MO112154510/0 In stock	Nut	£1.55 £1.29
38	MO137722601/1 Available to backorder	Seat	£422.32 £351.93
39	MO387185100/1 Available to backorder	Arm Rest Kit	£218.21 £181.84
40	MO1139-0011-01 Available to backorder	Nut	£3.10 £2.58
41	MO1139-0010-01 Available to backorder	Screw	£1.55 £1.29
45	MO337592350/0 Available to backorder	Tray	£27.04 £22.53
46	MO112727801/0 Available to backorder	Screw Tcb Torx M6 X 20	£1.63 £1.36
