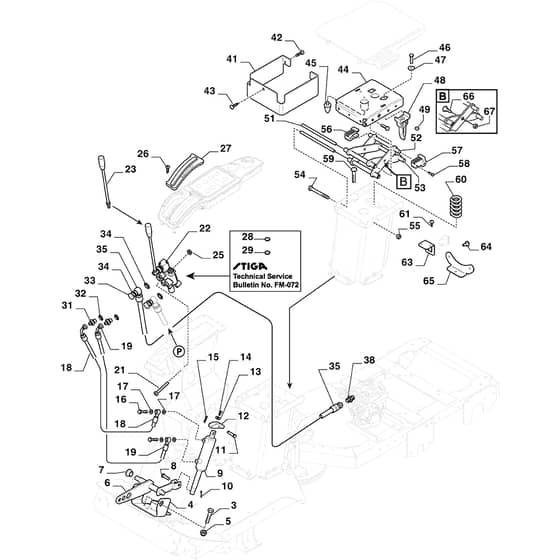

PARK PRO 340 IX - 2021 - 2F6430621/ST1 - Stiga Front Mower Hydraulic Lift Diagram

Description

Stiga PARK PRO 340 IX Parts Diagram

Product Name - PARK PRO 340 IX

Model Year - 2021

Model Type - P 901 PH

Art.N - 2F6430621/ST1

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
4	MO387773503/0 Available to backorder	Bracket	£78.28 £65.23
5	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
6	MO387256051/0 Available to backorder	Lift Lever	£122.46 £102.05
7	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
8	MO1134-4817-01 Available to backorder	Pin	£12.67 £10.56
9	MO1137-0071-01 Available to backorder	Hydraulic Cylinder	£358.98 £299.15
10	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
11	MO1134-4816-01 Available to backorder	Pin	£13.16 £10.97
12	MO1134-4815-01 Available to backorder	Cylinder Bracket	£57.71 £48.09
13	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
15	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
16	MO1134-4826-01 Available to backorder	Banjo Bolt	£15.48 £12.90
17	MO1134-4947-01 Available to backorder	Washer	£5.35 £4.46
19	MO1137-0193-01 Available to backorder	Hydraulic Hose	£91.51 £76.26
21	MO112727799/0 Available to backorder	Screw	£1.82 £1.52
22	MO187145001/0 Available to backorder	Hand Operated Valve	£485.66 £404.72
23	MO187318253/0 Available to backorder	Operating Lever	£55.16 £45.97
25	MO112292102/0 In stock	Nut	£1.69 £1.41
26	MO112728706/0 In stock	Screw	£1.55 £1.29
28	MO118870328/0 Available to backorder	O-Ring Service Bulletin FM-072	£5.05 £4.21
29	MO118870329/0 Available to backorder	O-Ring Service Bulletin FM-072	£5.05 £4.21
31	MO1134-4824-01 Available to backorder	Adapter	£11.53 £9.61
32	MO1134-4948-01 Available to backorder	Washer	£2.68 £2.23
33	MO1134-6323-01 Available to backorder	Banjo Bolt 3.8	£9.14 £7.62
34	MO1134-4948-02 Available to backorder	Washer	£2.12 £1.77
35	MO1137-0197-01 Available to backorder	Hydraulic Hose	£70.39 £58.66
38	MO1134-4282-01 Available to backorder	Hydraulic Nipple	£45.04 £37.53
41	MO1137-0038-01 Available to backorder	Cover	£39.42 £32.85
43	MO9943-0516-16 In stock	Screw	£1.22 £1.02
45	MO1137-0064-01 Available to backorder	Rubber Cone	£40.54 £33.78
46	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
47	MO112523040/0 In stock	Washer	£1.49 £1.24
49	MO112154510/0 In stock	Nut	£1.55 £1.29
51	MO1137-0263-01 Available to backorder	Shaft	£9.28 £7.73
52	MO1137-0260-01 Available to backorder	Link Assy A	£64.48 £53.73
53	MO1137-0261-01 Available to backorder	Link Assy B	£64.75 £53.96
56	MO1137-0033-02 Available to backorder	Block	£2.95 £2.46
57	MO1137-0033-01 Available to backorder	Block	£2.95 £2.46
58	MO112728697/0 In stock	Screw	£1.55 £1.29
59	MO9897-0880-12 Available to backorder	Screw	£1.97 £1.64
60	MO1134-4160-01 Available to backorder	Spring	£24.64 £20.53
64	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
66	MO1134-0240-00 Available to backorder	Screw	£8.80 £7.33
67	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
