PARK 900 WX - 2023-2024 - 2F6230845/ST2P - Stiga Front Mower Fuel Pump Diagram

Name: PARK 900 WX - 2023-2024 - 2F6230845/ST2P - Stiga Front Mower Fuel Pump Diagram
SKU: park_900_wx_2f6230845_st2p_fuel_pump-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

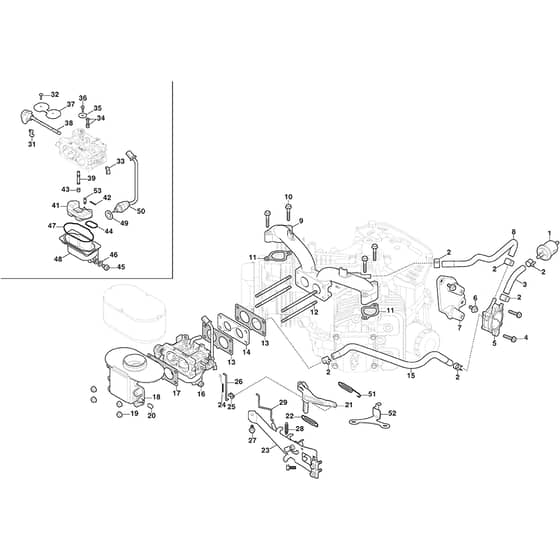

PARK 900 WX - 2023-2024 - 2F6230845/ST2P - Stiga Front Mower Fuel Pump Diagram

Description

Stiga PARK 900 WX Parts Diagram

Product Name - PARK 900 WX

Model Year - 2023-2024

Model Type - P 901 CH

Art.N - 2F6230845/ST2P

Engine Model - ST 650

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551572/0 In stock	Fuel Filter	£10.14 £8.45
2	MO118551612/0 Available to backorder	Hose Clamp	£2.95 £2.46
3	MO118552659/0 Available to backorder	Fuel Pipe 130 mm	£3.13 £2.61
5	MO118551578/0 Available to backorder	Fuel Pump	£61.93 £51.61
6	MO118551535/0 In stock	Bolt	£2.26 £1.88
7	MO118551579/0 Available to backorder	Clamp	£14.29 £11.91
8	MO118551604/0 Available to backorder	Breather Tube	£6.05 £5.04
9	MO118551592/0 Available to backorder	Intake Manifold	£87.98 £73.32
11	MO118551574/0 Available to backorder	Gasket	£1.69 £1.41
12	MO118551142/0 Available to backorder	Stud	£6.00 £5.00
13	MO118551576/0 Available to backorder	Gasket	£3.10 £2.58
14	MO118551577/0 Available to backorder	Spacer	£3.52 £2.93
15	MO118551606/0 Available to backorder	Fuel Pipe	£16.34 £13.62
16	MO118551573/0 Available to backorder	Carburetor	£168.92 £140.77
17	MO118551575/0 Available to backorder	Gasket	£3.94 £3.28
18	MO118551591/0 Available to backorder	Air Cleaner Base	£30.56 £25.47
20	MO118551613/0 Available to backorder	Protection	£2.68 £2.23
21	MO118551583/1 Available to backorder	Arm Governor Assy	£17.04 £14.20
22	MO118552500/0 Available to backorder	Spring	£1.40 £1.17
23	MO118552499/0 Available to backorder	Throttle Lever	£26.33 £21.94
24	MO118551582/0 Available to backorder	Spring	£1.55 £1.29
26	MO118551580/0 In stock	Governor Link	Was £4.22 £3.52 Special Price £2.69 £2.24
28	MO118551614/0 Available to backorder	Throttle Spring	£1.82 £1.52
29	MO118551585/0 In stock	Control Rod	Was £4.78 £3.98 Special Price £3.04 £2.53
31	MO118551588/0 Available to backorder	Retainer	£3.24 £2.70
32	MO118552286/0 Available to backorder	Screw	£1.82 £1.52
33	MO118552287/0 Available to backorder	Clip	£1.82 £1.52
34	MO118552288/0 In stock	Idle Jet	£2.40 £2.00
35	MO118552289/0 Available to backorder	Flat Washer	£1.82 £1.52
36	MO118552290/0 Available to backorder	Screw	£1.82 £1.52
37	MO118552291/0 Available to backorder	Choke Shutter	£2.68 £2.23
38	MO118552292/0 Available to backorder	Choke Shutter Shaft	£5.35 £4.46
39	MO118552293/0 Available to backorder	Jet Nozzle	£4.22 £3.52
41	MO118552294/0 Available to backorder	Float Set	£9.28 £7.73
42	MO118552295/0 Available to backorder	Pin	£1.69 £1.41
44	MO118552297/0 Available to backorder	Gasket	£1.82 £1.52
45	MO118552298/0 Available to backorder	Screw	£1.82 £1.52
46	MO118552299/0 Available to backorder	Flat Washer	£1.82 £1.52
47	MO118552300/0 Available to backorder	Gasket	£2.12 £1.77
48	MO118552301/0 Available to backorder	Chamber Set. Float	£9.00 £7.50
49	MO118552302/0 Available to backorder	Flat Washer	£1.69 £1.41
50	MO118552303/0 Available to backorder	Magnetic Valve	£32.38 £26.98
51	MO118552501/0 Available to backorder	Spring	£1.40 £1.17
52	MO118552502/0 Available to backorder	Support	£11.12 £9.27
53	MO118552549/0 Available to backorder		£4.07 £3.39
