PARK 740 WX - 2014-2015 - 13-6373-32 - Stiga Front Mower Belt Protection Diagram

Description

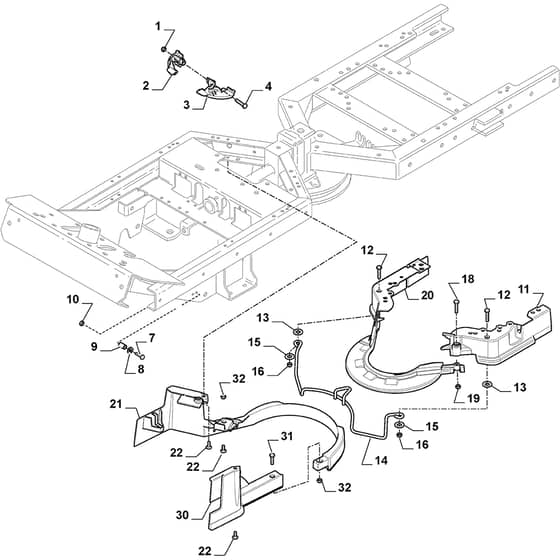

Stiga PARK 740 WX Parts Diagram

Product Name - PARK 740 WX (ISO)

Model Year - 2014-2015

Model Type - P 901 CH

Art.N - 13-6373-32

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO112154510/0 In stock	Nut	£1.55 £1.29
2	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
3	MO337600011/0 Available to backorder	Protection	£3.92 £3.27
4	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
7	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
8	MO112523050/0 In stock	Washer	£1.57 £1.31
9	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
11	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO337785100/0 Available to backorder	Support	£56.32 £46.93
15	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
20	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
21	MO337060002/0 Available to backorder	Belt Cover	£11.12 £9.27
22	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
30	MO337060004/0 Available to backorder	Belt Cover	£10.21 £8.51
31	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
