PARK 740 WX - 2014 - 13-6373-12 - Stiga Front Mower Transmission 01 Diagram

Name: PARK 740 WX - 2014 - 13-6373-12 - Stiga Front Mower Transmission 01 Diagram
SKU: park_740_wx_13_6373_12_transmission_01-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 740 WX - 2014 - 13-6373-12 - Stiga Front Mower Transmission 01 Diagram

Description

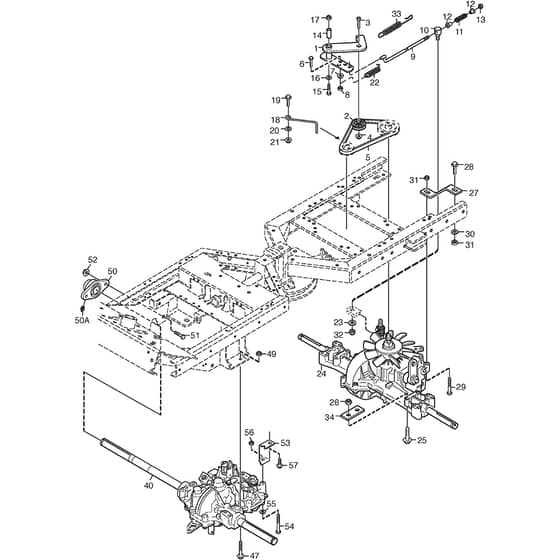

Stiga PARK 740 WX Parts Diagram

Product Name - PARK 740 WX

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6373-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
3	MO9924-1035-16 Available to backorder	Screw	£5.60 £4.67
4	MO112295200/0 In stock	Nut	£1.40 £1.17
5	MO1134-9058-01 In stock	Drive Belt Replaced by Service Code. 1134-9058-01	£21.67 £18.06
6	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
7	MO112292102/0 In stock	Nut	£1.69 £1.41
9	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
10	MO1134-4171-01 Available to backorder	Pivot Pin	£16.39 £13.66
11	MO1134-4183-01 Available to backorder	Spring	£8.23 £6.86
12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
13	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
14	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
15	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
17	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
18	MO1134-3289-02 Available to backorder	Belt Guide	£21.12 £17.60
19	MO9959-0820-16 In stock	Screw	£1.55 £1.29
20	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
21	MO112293201/0 In stock	Nut	£1.69 £1.41
22	MO1134-6414-01 In stock	Spring	£5.35 £4.46
23	MO112523040/0 In stock	Washer	£1.49 £1.24
27	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
28	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
29	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
33	MO4231-0013-00 In stock	Spring	£8.52 £7.10
34	MO1134-3376-01 Available to backorder	Spacer Plate	£16.12 £13.43
47	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
50	MO112379511/0 Available to backorder	Grease Dispenser (50A)	£1.55 £1.29
50	MO1134-5703-01 Available to backorder	Flange Bearing Unit	£29.56 £24.63
51	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
52	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
53	MO1134-5670-01 Available to backorder	Strut	£19.42 £16.18
54	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
55	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
57	MO9945-0816-16 Available to backorder	Screw M8 X 16	£2.26 £1.88
