PARK 740 PWX - 2021 - 2F6230625/ST1P - Stiga Front Mower Frame Diagram

Name: PARK 740 PWX - 2021 - 2F6230625/ST1P - Stiga Front Mower Frame Diagram
SKU: park_740_pwx_2f6230625_st1p_frame-group
Price: 1.05 GBP
Availability: InStock

Part No. park_740_pwx_2f6230625_st1p_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 740 PWX - 2021 - 2F6230625/ST1P - Stiga Front Mower Frame Diagram

Description

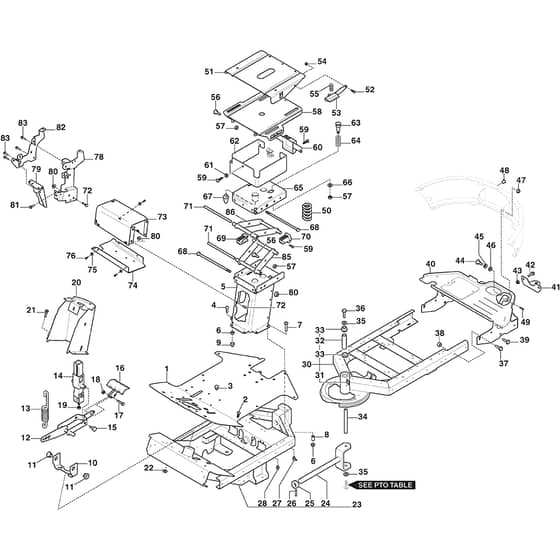

Stiga PARK 740 PWX Parts Diagram

Product Name - PARK 740 PWX

Model Year - 2021

Model Type - P 901 CH

Art.N - 2F6230625/ST1P

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO387507505/1 Available to backorder	Floor Plate	£183.01 £152.51
1	MO387507505/0 Available to backorder	Floor Plate	£183.01 £152.51
3	MO9403-0048-70 Available to backorder	Cover Plug	£9.28 £7.73
5	MO387785277/0 Available to backorder	Seat Bracket Assy	£104.86 £87.38
7	MO9897-0880-12 Available to backorder	Screw	£1.97 £1.64
8	MO1134-1565-08 Available to backorder	Spacer	£8.66 £7.22
9	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
10	MO1134-4117-01 Available to backorder	Bracket	£30.98 £25.82
11	MO1134-2684-01 Available to backorder	Bearing	£6.77 £5.64
12	MO387256055/0 Available to backorder	Lift Fork	£93.62 £78.02
13	MO4231-0013-00 In stock	Spring	£8.53 £7.11
14	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.96 £99.13
16	MO387500013/0 Available to backorder	Lift Pedal	£25.90 £21.58
17	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
18	MO112292102/0 In stock	Nut	£1.70 £1.42
20	MO387785243/0 Available to backorder	Steering Column Cover	£147.79 £123.16
23	MO387800039/0 Available to backorder	Frame-Front	£929.10 £774.25
24	MO1137-1119-02 Available to backorder	Fork	£168.91 £140.76
25	MO1134-0031-00 In stock	Pivot Shaft Stop	£24.36 £20.30
26	MO9595-0262-00 In stock	Locating Pin	£1.79 £1.49
27	MO9501-0505-01 Available to backorder	Grease Dispenser	£3.25 £2.71
31	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
32	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
33	MO9547-0001-00 In stock	Bearing	£29.56 £24.63
34	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
35	MO112521360/0 In stock	Washer	£1.55 £1.29
36	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
39	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
40	MO1134-5944-01 Available to backorder	Tank Shelf Assy	£274.51 £228.76
41	MO1134-5512-01 Available to backorder	Towing Plate	£20.40 £17.00
42	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
45	MO9665-0002-00 Available to backorder	Washer	£2.24 £1.87
46	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
48	MO1134-4100-01 Available to backorder	Plug	£4.37 £3.64
49	MO9943-0516-16 In stock	Screw	£1.26 £1.05
50	MO1134-4160-01 Available to backorder	Spring	£24.64 £20.53
51	MO1134-6090-01 Available to backorder	Slide Plate-Upper	£98.56 £82.13
52	MO1134-6073-01 Available to backorder	Handle Assy	£39.42 £32.85
54	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO1134-3262-01 Available to backorder	Spring	£8.45 £7.04
56	MO1134-0240-00 In stock	Screw	£8.80 £7.33
57	MO112155000/0 In stock	Nut	£1.55 £1.29
58	MO387773513/0 Available to backorder	Bracket	£94.32 £78.60
59	MO112728697/0 In stock	Screw	£1.55 £1.29
60	MO387602511/0 Available to backorder	Protection	£35.20 £29.33
61	MO9699-0087-02 In stock	Washer	£2.22 £1.85
62	MO387785267/0 Available to backorder	Cover	£40.69 £33.91
63	MO137510304/0 Available to backorder	Push Pin	£16.19 £13.49
64	MO137430101/0 Available to backorder	Spring	£13.38 £11.15
65	MO387773509/2 Available to backorder	Bracket	£93.62 £78.02
66	MO112523060/0 In stock	Washer	£1.55 £1.29
67	MO1137-0064-01 Available to backorder	Rubber Cone	£40.54 £33.78
69	MO1137-0033-02 Available to backorder	Block	£2.94 £2.45
70	MO1137-0033-01 Available to backorder	Block	£2.94 £2.45
71	MO1137-0263-01 Available to backorder	Shaft	£9.28 £7.73
72	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
73	MO387111515/0 Available to backorder	Cover	£89.39 £74.49
74	MO387547069/0 Available to backorder	Lower Cover	£42.18 £35.15
75	MO112523020/0 In stock	Washer	£1.55 £1.29
76	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
78	MO1134-4156-01 Available to backorder	Panel Bracket-Inner	£59.12 £49.27
79	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
80	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
82	MO1134-6327-01 Available to backorder	Front Plate	£21.47 £17.89
83	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
85	MO1137-0260-01 Available to backorder	Link Assy A	£64.48 £53.73
86	MO1137-0261-01 Available to backorder	Link Assembly B	£64.75 £53.96
