PARK 740 PWX - 2014-2015 - 13-6317-32 - Stiga Front Mower Wheel Diagram

Name: PARK 740 PWX - 2014-2015 - 13-6317-32 - Stiga Front Mower Wheel Diagram
SKU: park_740_pwx_13_6317_32_wheel-group
Price: 1.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 740 PWX - 2014-2015 - 13-6317-32 - Stiga Front Mower Wheel Diagram

Description

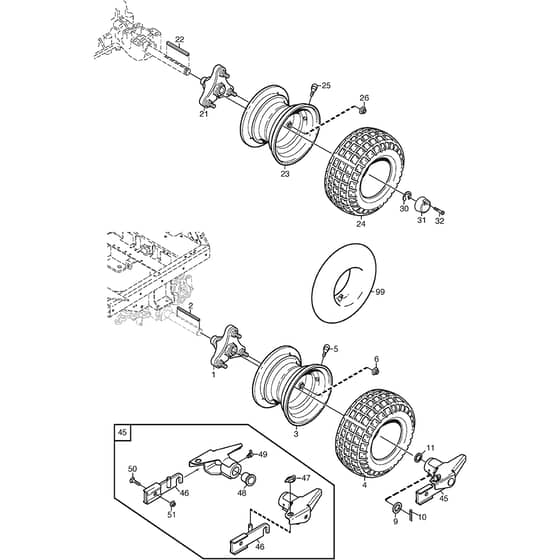

Stiga PARK 740 PWX Parts Diagram

Product Name - PARK 740 PWX (ISO)

Model Year - 2014-2015

Model Type - P 901 CH

Art.N - 13-6317-32

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4844-03 Available to backorder	Wheel Hub Assy	£57.43 £47.86
2	MO1134-3383-02 Available to backorder	Key	£8.94 £7.45
10	MO9599-0080-02 Available to backorder	Cotter Pin	£2.12 £1.77
11	MO1134-0341-01 Available to backorder	Washer	£6.62 £5.52
21	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
22	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
23	MO187000454/0 Available to backorder	Rim	£83.75 £69.79
24	MO9545-0116-00 In stock	Tyre 16 x 7.50 - 8	£85.16 £70.97
25	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
26	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
30	MO9653-0001-04 Available to backorder	Lock Ring	£2.26 £1.88
31	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
32	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
46	MO1134-7465-01 Available to backorder	Attachment Kit Inkl. Support RH + LH + pos 50-51	£63.35 £52.79
47	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
48	MO1134-5686-01 In stock	Bearing	£14.22 £11.85
49	MO9501-0502-00 Available to backorder	Grease Joint	£8.52 £7.10
50	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
51	MO9739-1031-22 In stock	Nut	£1.97 £1.64
99	MO9545-0203-00 Available to backorder	Inner Tube 16 X 6.50	£30.97 £25.81
