PARK 740 PWX - 2014-2015 - 13-6317-32 - Stiga Front Mower PTO 02 Diagram

Name: PARK 740 PWX - 2014-2015 - 13-6317-32 - Stiga Front Mower PTO 02 Diagram
SKU: park_740_pwx_13_6317_32_pto_02-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

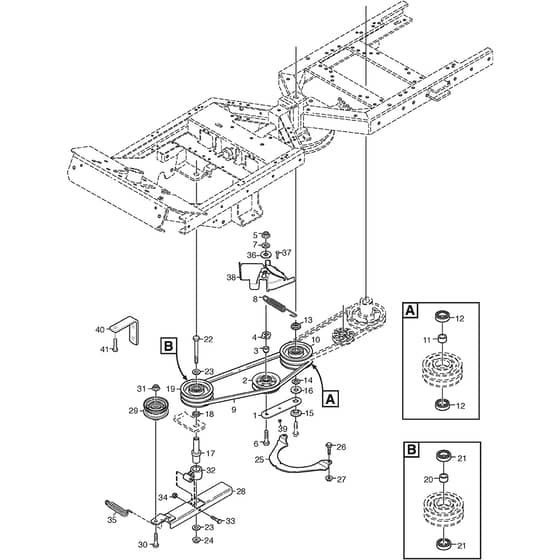

PARK 740 PWX - 2014-2015 - 13-6317-32 - Stiga Front Mower PTO 02 Diagram

Description

Stiga PARK 740 PWX Parts Diagram

Product Name - PARK 740 PWX (ISO)

Model Year - 2014-2015

Model Type - P 901 CH

Art.N - 13-6317-32

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-1730-02 In stock	Tensioning Wheel Arm	Was £40.10 £33.42 Special Price £24.55 £20.46
2	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
3	MO1134-1888-06 Available to backorder	Spacer	£8.94 £7.45
4	MO337546545/0 Available to backorder	Spring	£5.21 £4.34
5	MO9739-1031-22 In stock	Nut	£1.97 £1.64
6	MO112692395/2 In stock	Screw	£3.24 £2.70
7	MO112521360/0 In stock	Washer	£1.55 £1.29
8	MO1134-5713-04 Available to backorder	Spring	£7.61 £6.34
9	MO1134-9239-01 In stock	Drive Belt Service code for Belt. 135065702.0	£62.56 £52.13
13	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
15	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
16	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
17	MO1134-5663-01 Available to backorder	Shaft	£46.46 £38.72
18	MO1134-0052-00 Available to backorder	Spacer	£8.52 £7.10
19	MO387605002/0 Available to backorder	Centre Belt Pulley Pos 20-21 incl.	£83.06 £69.22
20	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
21	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
22	MO9997-1011-06 Available to backorder	Screw	£10.98 £9.15
23	MO9699-0030-02 In stock	Washer	£1.97 £1.64
25	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
26	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
27	MO112292102/0 In stock	Nut	£1.69 £1.41
28	MO1134-5660-01 Available to backorder	Tension Arm Assy	£45.04 £37.53
29	MO387605013/0 In stock	Tension Roller Assy	£42.23 £35.19
30	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
32	MO1134-6314-01 Available to backorder	Tension Arm Attachment	£8.34 £6.95
33	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
35	MO1134-5824-01 In stock	Spring	£5.48 £4.57
36	MO137038000/0 Available to backorder	Bush	£5.06 £4.22
37	MO112792410/0 Available to backorder	Screw	£1.55 £1.29
38	MO337600001/2 Available to backorder	Protection	£9.28 £7.73
39	MO112154510/0 In stock	Nut	£1.55 £1.29
40	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
41	MO9945-0816-16 Available to backorder	Screw M8 X 16	£2.26 £1.88
