PARK 740 PWX - 2014 - 13-6317-12 - Stiga Front Mower Wheel Diagram

Description

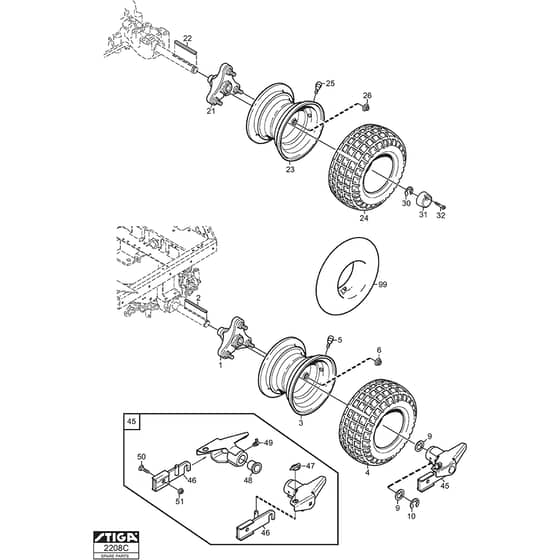

Stiga PARK 740 PWX Parts Diagram

Product Name - PARK 740 PWX

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6317-12

Engine Model -

	Part No.	Details
1	MO1134-4844-03 Available to backorder	Wheel Hub Assy	£57.42 £47.85
2	MO1134-3383-02 Available to backorder	Key	£8.94 £7.45
9	MO137670203/0 Available to backorder	Washer	£5.93 £4.94
10	MO9653-0002-04 Available to backorder	Lock Ring	£3.38 £2.82
21	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
22	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
23	MO1134-4558-01 Available to backorder	Rim	£106.27 £88.56
24	MO9545-0116-00 Available to backorder	Tyre 16 x 7.50 - 8	£85.15 £70.96
25	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
26	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
30	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
31	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
32	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
46	MO1134-7465-01 Available to backorder	Attachment Kit Inkl. Support RH + LH + pos 50-51	£63.34 £52.78
47	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
48	MO1134-5686-01 In stock	Bearing	£14.22 £11.85
49	MO9501-0502-00 Available to backorder	Grease Joint	£8.53 £7.11
50	MO9898-1035-16 Available to backorder	Screw	£2.82 £2.35
51	MO9739-1031-22 In stock	Nut	£1.97 £1.64
99	MO9545-0203-00 Available to backorder	Inner Tube 16 X 6.50	£30.98 £25.82
