PARK 740 PWX - 2014 - 13-6317-12 - Stiga Front Mower Engine Diagram

Description

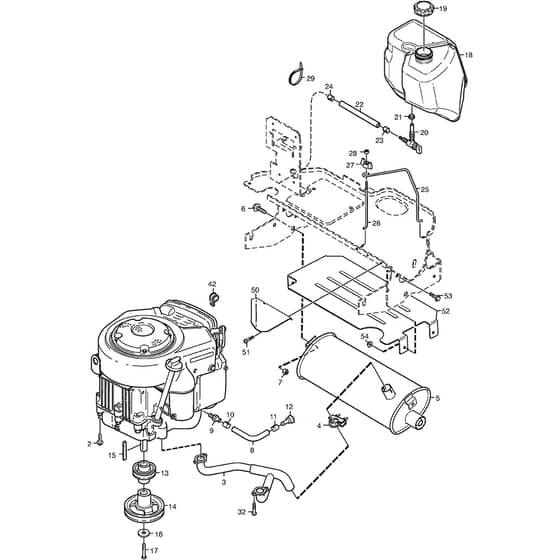

Stiga PARK 740 PWX Parts Diagram

Product Name - PARK 740 PWX

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6317-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118738277/0 Available to backorder	Exhaust Pipe	£153.44 £127.87
4	MO9578-0011-01 Available to backorder	Tube Clamp	£14.22 £11.85
5	MO187751507/0 Available to backorder	Muffler Assy	£344.89 £287.41
6	MO9959-0820-16 In stock	Screw	£1.55 £1.29
7	MO112293201/0 In stock	Nut	£1.69 £1.41
8	MO1134-5827-04 Available to backorder	Oil Drain Assy Inkl. pos 9 - 12	£33.79 £28.16
9	MO1134-5825-01 Available to backorder	Nipple	£70.39 £58.66
10	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
11	MO1134-3499-02 Available to backorder	Hose Clamp	£3.24 £2.70
12	MO1134-5826-01 Available to backorder	Plug	£23.86 £19.88
13	MO1137-0206-01 Available to backorder	Engine Pulley Ï . 85 mm	£32.38 £26.98
14	MO1137-0208-01 Available to backorder	Engine Pulley Ï . 139 mm	£43.64 £36.37
15	MO9600-0251-01 Available to backorder	Key	£6.47 £5.39
16	MO1134-5017-01 Available to backorder	Washer	£3.79 £3.16
17	MO9987-5332-16 Available to backorder	Screw	£2.12 £1.77
18	MO1134-5938-01 Available to backorder	Fuel Tank	£131.62 £109.68
19	MO125795001/1 In stock	Fuel Tank Cap	£7.96 £6.63
20	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
21	MO337260156/0 In stock	Grommet	£8.66 £7.22
22	MO9505-0001-01 Available to backorder	Fuel Tube Per meter	£9.43 £7.86
24	MO9578-0023-02 Available to backorder	Hose Clamp	£6.47 £5.39
25	MO1134-5942-01 Available to backorder	Tank Loop	£9.16 £7.63
26	MO1134-5996-01 Available to backorder	Tank Loop	£6.62 £5.52
27	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
28	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
29	MO9579-0003-00 Available to backorder	Cable Holder	£2.12 £1.77
30	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
32	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
42	MO1134-0994-02 Available to backorder	Tube Clamp	£6.76 £5.63
50	MO1134-6234-01 Available to backorder	Heat Deflector	£17.53 £14.61
51	MO9943-0516-16 In stock	Screw	£1.22 £1.02
52	MO1134-6251-01 Available to backorder	Heat Deflector	£38.00 £31.67
53	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
54	MO112292102/0 In stock	Use 112292102.0	£1.69 £1.41
