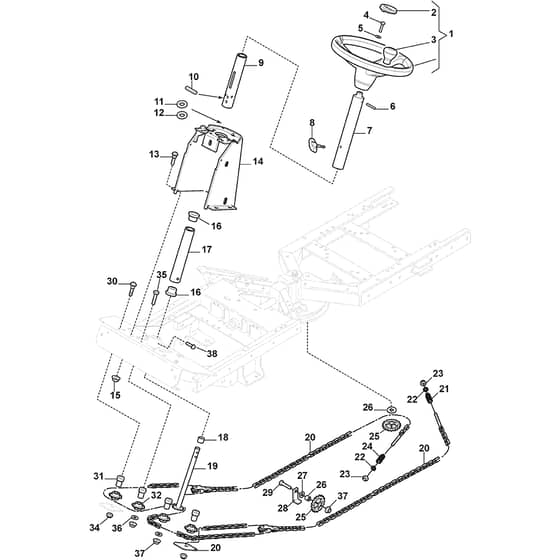

PARK 720 W - 2016-2018 - 2F6020621/S16 - Stiga Front Mower Steering Diagram

Name: PARK 720 W - 2016-2018 - 2F6020621/S16 - Stiga Front Mower Steering Diagram
SKU: park_720_w_2f6020621_s16_steering-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 720 W - 2016-2018 - 2F6020621/S16 - Stiga Front Mower Steering Diagram

Description

Stiga PARK 720 W Parts Diagram

Product Name - PARK 720 W

Model Year - 2016-2018

Model Type - P 901 CH

Art.N - 2F6020621/S16

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO337961200/0 Available to backorder	Steering Wheel	£344.89 £287.41
2	MO337580550/0 Available to backorder	Steering Plate	£8.74 £7.28
3	MO187593701/0 Available to backorder	Knob	£47.87 £39.89
4	MO112793102/0 Available to backorder	Screw	£1.55 £1.29
5	MO112583500/0 In stock	Grower	£1.55 £1.29
6	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
7	MO387520101/2 Available to backorder	Steering Column	£92.90 £77.42
8	MO337394201/0 Available to backorder	Wing Nut	£13.24 £11.03
9	MO387520119/0 Available to backorder	Steering Column.Lower	£76.02 £63.35
10	MO9595-0262-00 In stock	Locating Pin 0.5 mm	£1.69 £1.41
11	MO9699-0103-02 Available to backorder	Washer 1.0 mm	£2.12 £1.77
12	MO9699-0114-02 Available to backorder	Washer 1.0 mm	£1.97 £1.64
13	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
14	MO387785243/0 Available to backorder	Steering Column Cover	£147.80 £123.17
15	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
16	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
17	MO387520113/0 Available to backorder	Steering Column.Lower	£43.33 £36.11
18	MO1134-2837-03 Available to backorder	Spacer	£11.06 £9.22
19	MO1137-0120-02 Available to backorder	Steering Rod Assy	£218.70 £182.25
20	MO387106404/0 Available to backorder	Steering Chain Assy	£235.52 £196.27
21	MO1134-3817-02 Available to backorder	Spring L . 33 mm	£12.25 £10.21
22	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
25	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
26	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
28	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
29	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
30	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
31	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
32	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
34	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
35	MO112692395/2 In stock	Screw	£3.24 £2.70
36	MO112521360/0 In stock	Washer	£1.55 £1.29
37	MO9739-1031-22 In stock	Nut	£1.97 £1.64
38	MO9893-0616-16 Available to backorder	Screw M6 X 16	£2.12 £1.77
