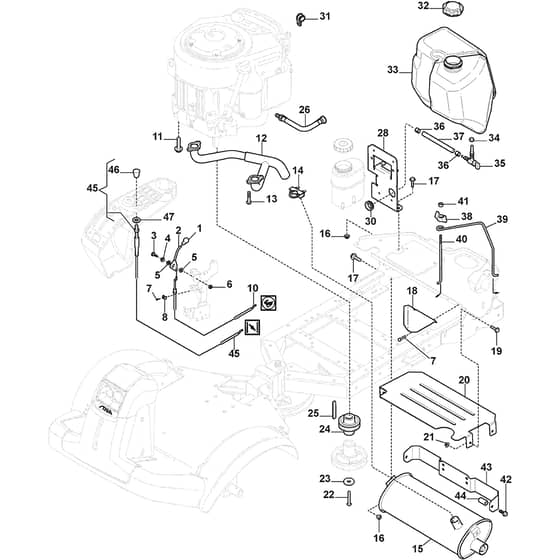

PARK 720 PW - 2016-2020 - 2F6220621/S16 - Stiga Front Mower Engine Diagram

Description

Stiga PARK 720 PW Parts Diagram

Product Name - PARK 720 PW

Model Year - 2016-2020

Model Type - P 901 CH

Art.N - 2F6220621/S16

Engine Model - B&S Vanguard 18

	Part No.	Details
1	MO1134-4078-01 Available to backorder	Knob	£5.47 £4.56
2	MO1134-4077-02 Available to backorder	Lever	£26.34 £21.95
3	MO1134-0240-00 In stock	Screw	£8.80 £7.33
4	MO9665-0002-00 Available to backorder	Washer	£2.24 £1.87
5	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
6	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MO9943-0516-16 In stock	Screw	£1.26 £1.05
8	MO1137-0115-01 Available to backorder	Wire Clamp	£2.24 £1.87

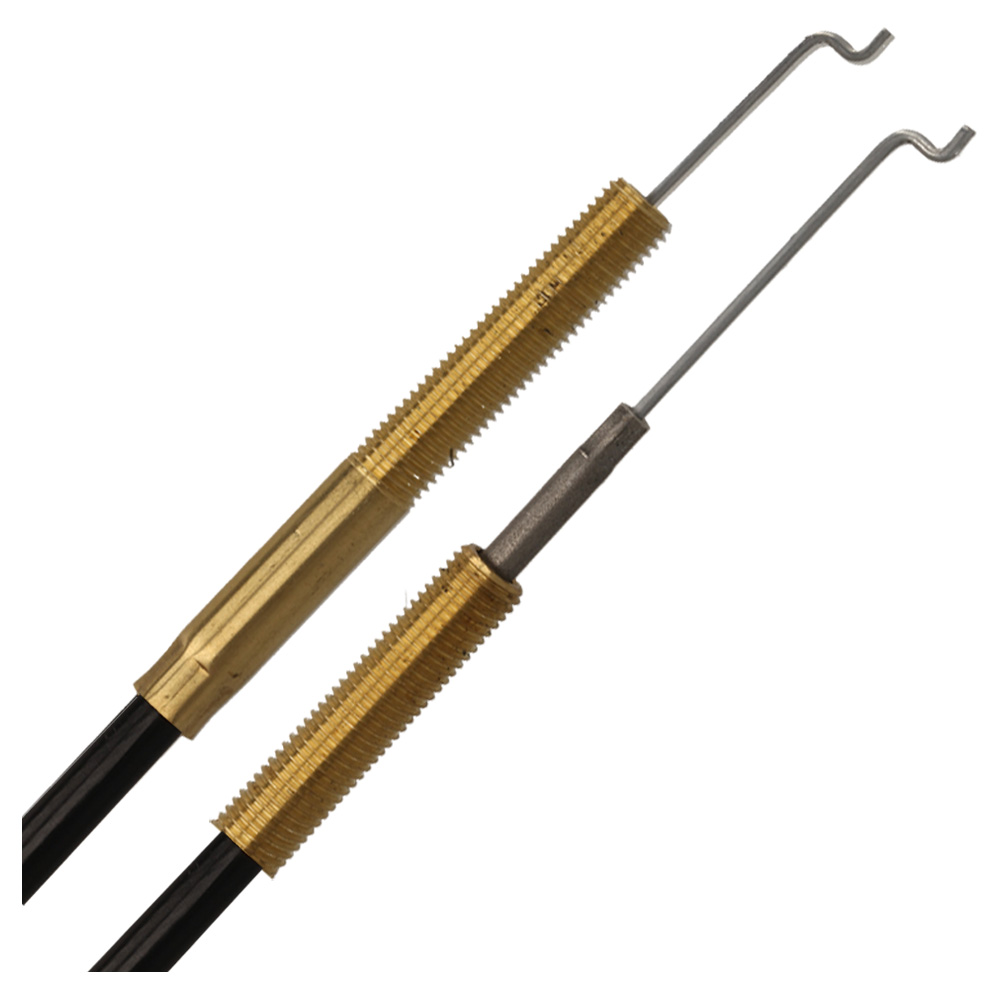

10	MO137065323/0 Available to backorder	Throttle Cable L1 . 1413 mm	£30.98 £25.82
11	MO112735108/1 In stock	Screw	£2.11 £1.76
12	MO118738277/0 Available to backorder	Exhaust Pipe	£153.44 £127.87
13	MO1134-4930-01 Available to backorder	Screw	£1.97 £1.64
14	MO9578-0011-01 Available to backorder	Tube Clamp	£14.22 £11.85
15	MO187751507/0 Available to backorder	Muffler Assy	£344.90 £287.42
16	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
17	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
18	MO1134-6234-01 Available to backorder	Heat Deflector	£17.54 £14.62
19	MO9959-0612-16 Available to backorder	Screw	£1.46 £1.22
20	MO1134-6251-01 Available to backorder	Heat Deflector	£38.00 £31.67
21	MO112292102/0 In stock	Nut	£1.70 £1.42
22	MO9987-5332-16 Available to backorder	Screw	£2.11 £1.76
23	MO1134-5017-02 Available to backorder	Washer	£2.82 £2.35
24	MO1137-0206-01 Available to backorder	Engine Belt Pulley	£32.38 £26.98
25	MO9600-0251-01 Available to backorder	Key	£6.46 £5.38
26	MO1134-5827-04 Available to backorder	Oil Drain Assy	£33.79 £28.16
30	MO1134-3203-01 Available to backorder	Grommet	£5.22 £4.35
31	MO1134-0994-02 Available to backorder	Tube Clamp	£6.77 £5.64
32	MO125795001/1 In stock	Cap	£7.97 £6.64
33	MO1134-5938-01 Available to backorder	Fuel Tank	£131.60 £109.67
34	MO337260156/0 In stock	Gasket	£9.01 £7.51
35	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
36	MO9578-0023-02 Available to backorder	Hose Clamp	£6.46 £5.38
37	MO1134-2975-15 Available to backorder	Fuel Tube Cutting length 1.1 mt	£16.10 £13.42
38	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
39	MO1134-5942-01 Available to backorder	Tank Loop	£9.17 £7.64
40	MO1134-5996-01 Available to backorder	Tank Loop	£6.64 £5.53
41	MO112154510/0 In stock	Nut	£1.55 £1.29
47	MO9699-0090-02 Available to backorder	Washer 8.4 X 18 X 1.5	£1.97 £1.64
