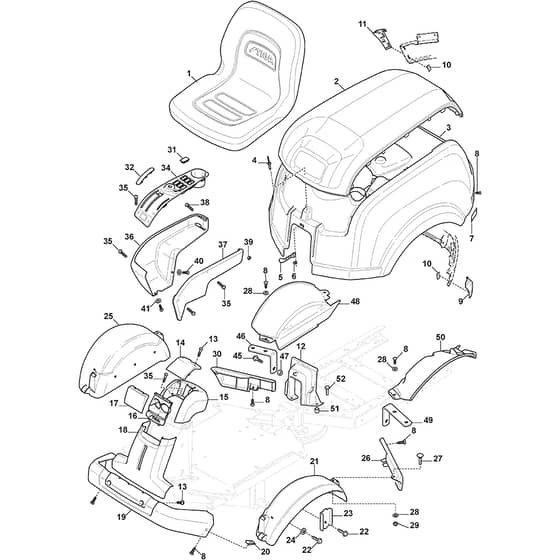

PARK 720 PW - 2016-2020 - 2F6220621/S16 - Stiga Front Mower Body Diagram

Description

Stiga PARK 720 PW Parts Diagram

Product Name - PARK 720 PW

Model Year - 2016-2020

Model Type - P 901 CH

Art.N - 2F6220621/S16

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO137722602/1 Available to backorder	Seat	£422.32 £351.93
2	MO337110334/0 Available to backorder	Engine Cover	£76.73 £63.94
3	MO337076805/0 Available to backorder	Engine Hood Yellow	£309.70 £258.08
4	MO9632-0513-00 Available to backorder	Pop Rivet	£1.39 £1.16
5	MO1134-9028-01 Available to backorder	Rubber Strap (3 Pcs) Sats 3 st.kit of 3	£25.86 £21.55
6	MO9699-0120-02 Available to backorder	Washer	£2.40 £2.00
7	MO337580302/0 Available to backorder	Plate	£7.19 £5.99
8	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
9	MO337110336/0 Available to backorder	Bumper End-Lh	£14.64 £12.20
10	MO1134-6310-01 Available to backorder	Clip	£1.90 £1.58
11	MO337110335/0 Available to backorder	Bumper End-Rh	£13.93 £11.61
12	MO1134-6241-01 Available to backorder	Hood Support	£42.23 £35.19
13	MO112728697/0 In stock	Screw	£1.55 £1.29
14	MO337110330/0 Available to backorder	Top Panel	£5.87 £4.89
15	MO1137-0051-01 Available to backorder	Front Panel-Upper	£22.57 £18.81

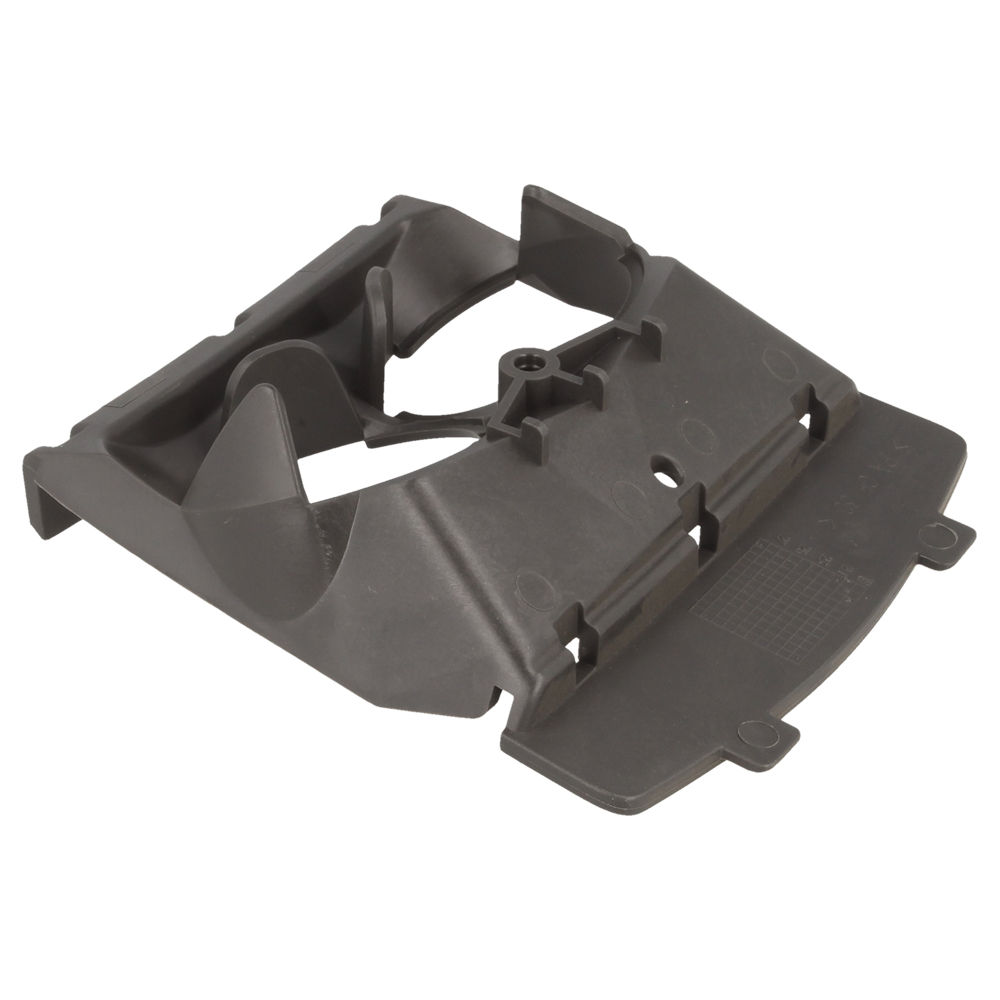

16	MO337110329/0 Available to backorder	Lamp Holder	£6.19 £5.16

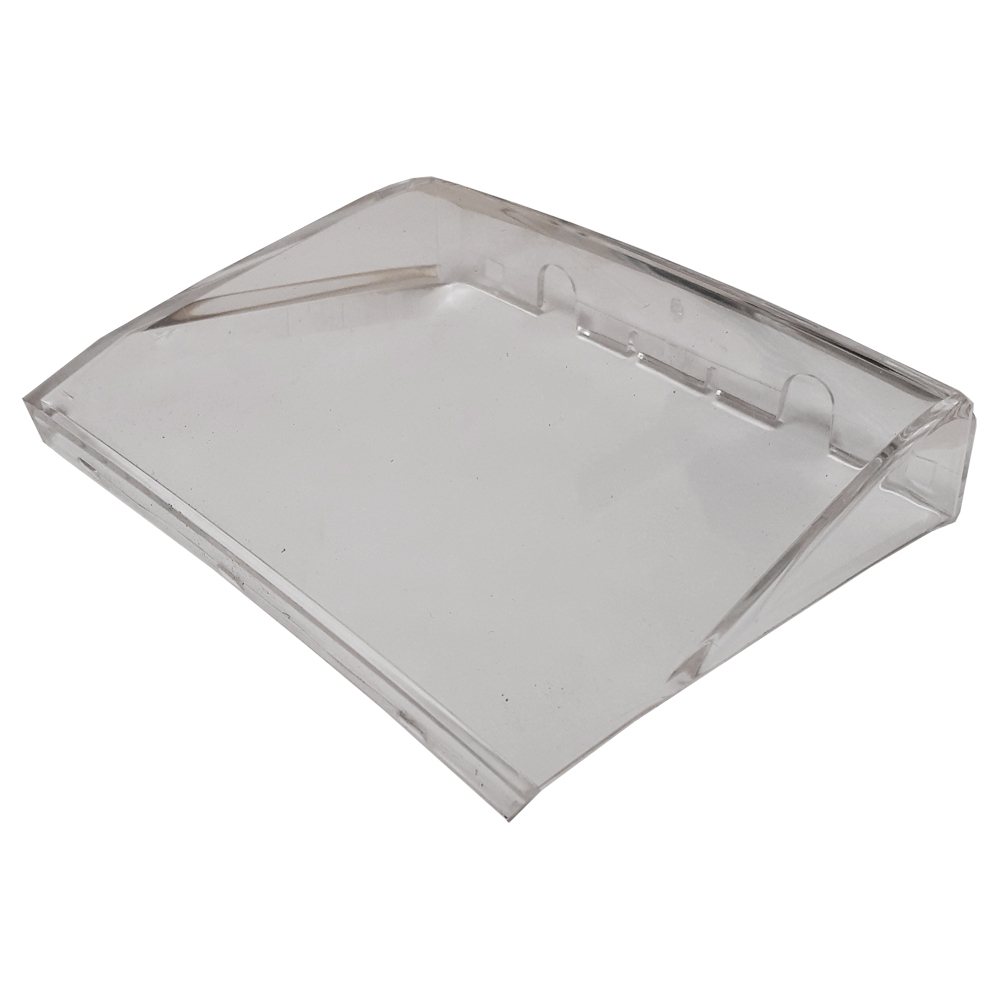

17	MO1137-0054-01 Available to backorder	Lamp Glass	£8.02 £6.68
18	MO1137-0050-01 Available to backorder	Front Panel-Lower	£109.21 £91.01
19	MO337502507/0 Available to backorder	Front Bumper	£43.64 £36.37
20	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
21	MO337491255/0 Available to backorder	Mudguard-Lh (Grey)	£113.32 £94.43
22	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
23	MO1137-0088-01 Available to backorder	Support Plate	£2.26 £1.88
24	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
25	MO337491254/0 Available to backorder	Mudguard-Rh (Grey)	£113.32 £94.43
26	MO337110331/0 Available to backorder	Moulding-Left (Grey)	£56.32 £46.93
27	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
28	MO112523040/0 In stock	Washer	£1.49 £1.24
29	MO112154510/0 In stock	Nut	£1.55 £1.29
30	MO337110332/0 Available to backorder	Moulding Right-Grey	£53.50 £44.58
31	MO1134-4129-01 Available to backorder	Cover	£5.76 £4.80
32	MO1134-4154-01 Available to backorder	Cover	£8.16 £6.80
34	MO1134-6096-02 Available to backorder	Dashboard	£113.32 £94.43
35	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
36	MO1134-3979-01 Available to backorder	Cover-Outer	£102.06 £85.05
37	MO1134-4360-01 Available to backorder	Cover-Inner	£64.75 £53.96
38	MO9950-0570-12 Available to backorder	Screw	£2.96 £2.47
39	MO112154330/0 In stock	Nut	£1.55 £1.29
40	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
41	MO9699-0099-02 Available to backorder	Washer	£1.82 £1.52
45	MO9959-0820-16 In stock	Screw	£1.55 £1.29
46	MO1134-4012-03 Available to backorder	Support. Right	£18.43 £15.36
47	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
48	MO337491256/0 Available to backorder	Inner Mud Guard-Rh (Park)	£104.18 £86.82
49	MO1134-4012-04 Available to backorder	Support. Left	£18.43 £15.36
50	MO337491257/0 Available to backorder	Inner Mud Guard-Lh (Park)	£104.18 £86.82
51	MO1137-0020-02 Available to backorder	Spacer	£5.21 £4.34
52	MO112735594/0 Available to backorder	Hex-Head Screw M6 X 30	£1.55 £1.29
