PARK 720 PW - 2015 - 2F6220620/S15 - Stiga Front Mower Transmission Diagram

Name: PARK 720 PW - 2015 - 2F6220620/S15 - Stiga Front Mower Transmission Diagram
SKU: park_720_pw_2f6220620_s15_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 720 PW - 2015 - 2F6220620/S15 - Stiga Front Mower Transmission Diagram

Description

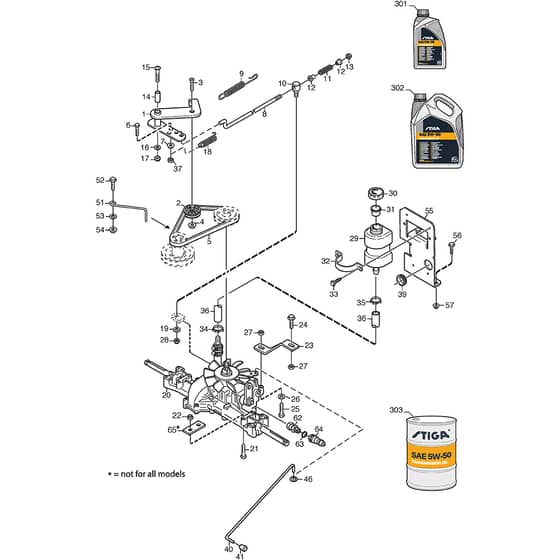

Stiga PARK 720 PW Parts Diagram

Product Name - PARK 720 PW

Model Year - 2015

Model Type - P 901 CH

Art.N - 2F6220620/S15

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
3	MO112794117/0 Available to backorder	Screw	£1.55 £1.29
4	MO112295200/0 In stock	Nut	£1.40 £1.17
5	MO1134-9058-01 In stock	Drive Belt Replaced by Service Code. 1134-9058-01	£21.67 £18.06
6	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
7	MO112292102/0 In stock	Nut	£1.69 £1.41
8	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
9	MO4231-0013-00 In stock	Spring	£8.52 £7.10
10	MO1134-4171-01 Available to backorder	Pivot Pin	£16.39 £13.66
11	MO1134-4183-01 Available to backorder	Spring	£8.23 £6.86
12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
14	MO1134-1565-08 Available to backorder	Spacer	£8.65 £7.21
15	MO112794988/0 Available to backorder	Screw	£6.20 £5.17
18	MO1134-6414-01 In stock	Spring	£5.35 £4.46
19	MO112523040/0 In stock	Washer	£1.49 £1.24
20	MO1137-0126-01 Available to backorder	Transaxle K57V Kanzaki K57V	£1,116.37 £930.31
21	MO9960-0860-12 Available to backorder	Screw L . 60 mm	£1.97 £1.64
23	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
24	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
25	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
26	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
27	MO112155000/0 In stock	Nut	£1.55 £1.29
29	MO1134-2765-02 Available to backorder	Oil Tank	£41.99 £34.99
30	MO1134-2777-02 Available to backorder	Filler Cap	£16.40 £13.67
31	MO1134-3734-01 Available to backorder	Vent Plug	£12.60 £10.50
32	MO1134-2778-01 Available to backorder	Band	£13.81 £11.51
33	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77
35	MO9578-0023-04 Available to backorder	Hose Clamp 15 x 8	£6.05 £5.04
35	MO9578-0036-01 Available to backorder	Hose Clamp	£3.67 £3.06
36	MO1134-2779-03 Available to backorder	Tube L . 290 mm	£9.30 £7.75
37	MO112154510/0 In stock	Nut	£1.55 £1.29
39	MO1134-3203-01 Available to backorder	Grommet	£5.21 £4.34
40	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
41	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
46	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
51	MO1134-3289-02 Available to backorder	Belt Guide	£21.12 £17.60
53	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
56	MO9959-0820-16 In stock	Screw	£1.55 £1.29
57	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
62	MO1134-7245-01 Available to backorder	Hydraulic Coupling-Straight	£13.51 £11.26
63	MO1134-4948-01 Available to backorder	Washer	£2.68 £2.23
64	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
64	MO1134-3376-01 Available to backorder	Spacer Plate Only for models with Vanguard 18	£16.12 £13.43
301	MO1111-9281-01 Available to backorder	Transmission Oil Sae 5W-50 1.4L	£29.47 £24.56
302	MO1111-9282-01 In stock	Transmission Oil Sae 5W-50 5L	£100.91 £84.09
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
