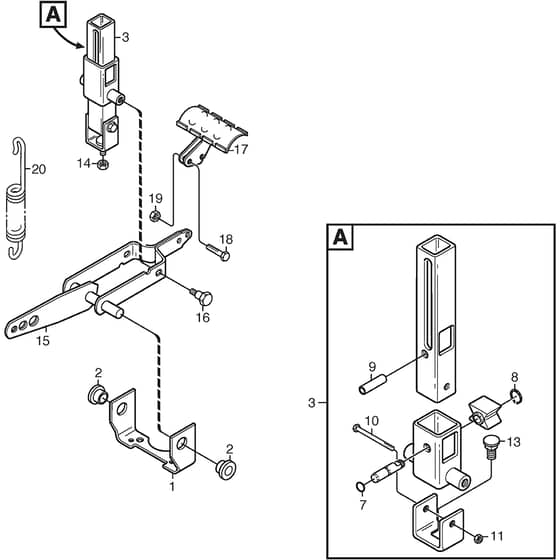

PARK 720 PW - 2015 - 2F6220620/S15 - Stiga Front Mower Pedal Lift Diagram

Description

Stiga PARK 720 PW Parts Diagram

Product Name - PARK 720 PW

Model Year - 2015

Model Type - P 901 CH

Art.N - 2F6220620/S15

Engine Model - B&S Vanguard 18

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4117-01 Available to backorder	Bracket	£30.97 £25.81
2	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
3	MO1134-4945-01 Available to backorder	Lift Catch Assy	£118.94 £99.12
8	MO9650-0039-04 Available to backorder	Lock Ring	£2.12 £1.77
9	MO9595-0276-01 Available to backorder	Locating Pin	£3.10 £2.58
10	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
11	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
15	MO112155000/0 In stock	Nut	£1.55 £1.29
16	MO1134-0240-00 In stock	Screw	£8.80 £7.33
17	MO1134-4938-01 Available to backorder	Lift Pedal	£24.01 £20.01
18	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
19	MO112292102/0 In stock	Nut	£1.69 £1.41
20	MO4231-0013-00 In stock	Spring	£8.52 £7.10
