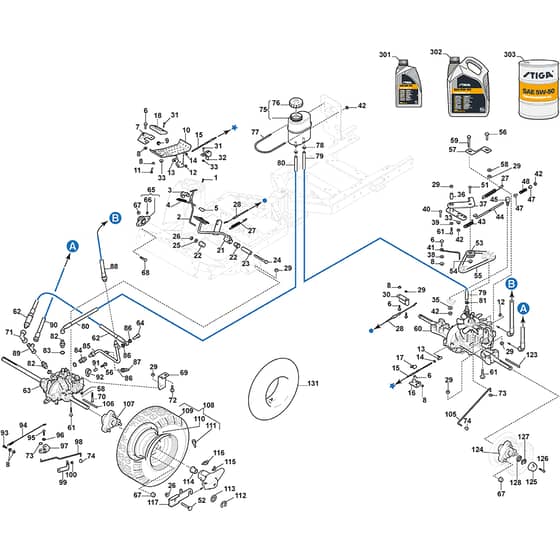

PARK 640 PWX - 2020 - 2F6230741/ST1 - Stiga Front Mower Transmission Diagram

Name: PARK 640 PWX - 2020 - 2F6230741/ST1 - Stiga Front Mower Transmission Diagram
SKU: park_640_pwx_2f6230741_st1_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 640 PWX - 2020 - 2F6230741/ST1 - Stiga Front Mower Transmission Diagram

Description

Stiga PARK 640 PWX Parts Diagram

Product Name - PARK 640 PWX

Model Year - 2020

Model Type - P 901 CH

Art.N - 2F6230741/ST1

Engine Model - ST 600

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728697/0 In stock	Screw	£1.55 £1.29
2	MO1134-5353-01 Available to backorder	Brake Rod	£51.62 £43.02
3	MO1134-4002-01 Available to backorder	Brake Rod Attachment	£11.96 £9.97
4	MO1131-1497-01 Available to backorder	Brake Spring	£10.20 £8.50
5	MO1134-2786-01 Available to backorder	Knob	£6.05 £5.04
6	MO9959-0820-16 In stock	Screw	£1.55 £1.29
7	MO1134-2700-01 Available to backorder	Bracket	£17.04 £14.20
8	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
9	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
10	MO1134-6353-01 Available to backorder	Drive Pedal	£46.46 £38.72
11	MO9997-0835-16 Available to backorder	Screw	£1.90 £1.58
12	MO112154330/0 In stock	Nut	£1.55 £1.29
13	MO9570-0001-00 In stock	Elbow Link	£19.57 £16.31
14	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
15	MO1134-2766-05 Available to backorder	Speed Control Cable	£75.31 £62.76
16	MO1134-3395-01 Available to backorder	Attachment	£29.28 £24.40
17	MO1134-2021-01 Available to backorder	Clamp	£7.03 £5.86
18	MO1134-6340-02 Available to backorder	Foot Rest	£15.24 £12.70
21	MO1134-5655-01 Available to backorder	Clutch Pedal	£57.71 £48.09
22	MO1134-9024-01 Available to backorder	Bearing Sats 4 st.kit of 4	£19.85 £16.54
23	MO1134-5677-02 Available to backorder	Spacer	£11.12 £9.27
24	MO9997-1070-12 In stock	Screw	£3.52 £2.93
25	MO9699-0030-02 In stock	Washer	£1.97 £1.64
26	MO9739-1031-22 In stock	Nut	£1.97 £1.64
27	MO4231-0013-00 In stock	Spring	£8.52 £7.10
28	MO187000211/1 In stock	Control Cable	£35.20 £29.33
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO1134-6467-01 Available to backorder	Cable Holder	£7.46 £6.22
31	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
32	MO1134-6317-01 Available to backorder	Wire Bracket	£8.45 £7.04
33	MO112292102/0 In stock	Nut	£1.69 £1.41
35	MO112523040/0 In stock	Washer	£1.49 £1.24
36	MO137038008/0 Available to backorder	Spacer	£8.65 £7.21
37	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
38	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
39	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
40	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
41	MO1134-3289-02 Available to backorder	Belt Guide	£21.12 £17.60
42	MO112154510/0 In stock	Nut	£1.55 £1.29
43	MO1134-6414-01 In stock	Spring	£5.35 £4.46
44	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
45	MO1134-4171-01 Available to backorder	Pivot Pin	£16.39 £13.66
47	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
48	MO1134-4183-01 Available to backorder	Spring	£8.23 £6.86
51	MO112794117/0 Available to backorder	Screw	£1.55 £1.29
52	MO9898-1035-16 Available to backorder	Screw	£2.81 £2.34
53	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
54	MO112295200/0 In stock	Nut	£1.40 £1.17
55	MO1134-9058-01 In stock	Drive Belt Replaced by Service Code. 1134-9058-01	£21.67 £18.06
56	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
57	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
58	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
59	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
60	MO1137-0125-01 Available to backorder	Transaxle K574F Kanzaki K574F (4-port)	£2,293.92 £1,911.60
61	MO9960-0860-12 Available to backorder	Screw	£1.97 £1.64
62	MO387869533/3 Available to backorder	Hydraulic Hose	£161.89 £134.91
63	MO118400996/1 Available to backorder	Front Motor Unit (Ktm 10M) Kanzaki KTM 10M	£1,019.52 £849.60
64	MO112320450/0 Available to backorder	Nut	£9.72 £8.10
65	MO1134-5703-01 Available to backorder	Flange Bearing Unit	£29.56 £24.63
66	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
67	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
68	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
69	MO387773551/0 Available to backorder	Strut	£30.89 £25.74
71	MO112146034/0 Available to backorder	Hydraulic Coupling	£38.09 £31.74
72	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
73	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
74	MO1134-4014-01 Available to backorder	Knob	£4.78 £3.98
75	MO387735257/1 Available to backorder	Hydraulic Oil Tank Assy	£119.18 £99.32
76	MO1137-0272-01 Available to backorder	Tank Cap	£32.38 £26.98
77	MO1134-5943-01 Available to backorder	Tank Loop	£7.31 £6.09
78	MO9578-0036-01 Available to backorder	Hose Clamp 14.6 - 17.8	£3.67 £3.06
79	MO1134-2779-03 Available to backorder	Tube L . 260 mm	£9.30 £7.75
80	MO387869523/1 Available to backorder	Hydraulic Hose L . 1400 mm	£81.66 £68.05
81	MO9578-0023-04 Available to backorder	Hose Clamp 15*8	£6.05 £5.04
82	MO1134-5810-01 Available to backorder	Hydraulic Coupling 3.4" x 9.16"	£17.53 £14.61
83	MO9404-0029-01 Available to backorder	O-Ring	£5.06 £4.22
84	MO1134-5875-01 Available to backorder	Hydraulic Coupling 3.4"	£63.23 £52.69
85	MO387869527/0 Available to backorder	Hydraulic Pipe Assy	£190.04 £158.37
86	MO1134-4948-01 Available to backorder	Washer 1.4"	£2.68 £2.23
87	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
88	MO1137-0212-01 Available to backorder	Hydraulic Hose L . 1210 mm	£85.16 £70.97
89	MO112140800/0 Available to backorder	Hydraulic Coupling	£83.81 £69.84
90	MO387869531/0 Available to backorder	Hydraulic Hose L . 1275 mm	£97.84 £81.53
91	MO1134-1565-09 Available to backorder	Spacer	£14.22 £11.85
92	MO9578-0028-01 Available to backorder	Tube Clamp	£9.43 £7.86
93	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
94	MO137065320/0 Available to backorder	Wire	£19.85 £16.54
95	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
96	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
97	MO337774119/0 Available to backorder	Bracket	£16.12 £13.43
98	MO1134-6083-01 Available to backorder	Control Rod	£7.19 £5.99
99	MO1134-6084-01 Available to backorder	Control Bracket	£9.72 £8.10
100	MO1134-2790-01 Available to backorder	Cable Protection	£6.47 £5.39
105	MO1134-4015-01 Available to backorder	Pull Rod	£11.27 £9.39
106	MO1134-3383-02 Available to backorder	Key	£8.94 £7.45
107	MO1134-4844-03 Available to backorder	Wheel Hub Assy	£57.43 £47.86
109	MO9545-0116-00 In stock	Tyre 16 x 7.50 - 8	£85.16 £70.97
110	MO187000454/0 Available to backorder	Rim	£83.75 £69.79
111	MO9545-0500-00 Available to backorder	Valve Assy.	£5.35 £4.46
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.29 £787.74
