PARK 620 PW - 2020 - 2F6220741/ST1 - Stiga Front Mower PTO Diagram

Description

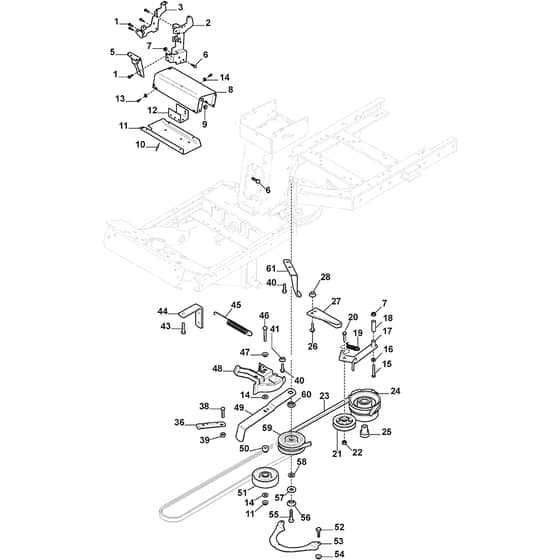

Stiga PARK 620 PW Parts Diagram

Product Name - PARK 620 PW

Model Year - 2020

Model Type - P 901 CH

Art.N - 2F6220741/ST1

Engine Model - ST 600

	Part No.	Details
2	MO1134-6327-01 Available to backorder	Front Plate	£21.47 £17.89
3	MO1134-6324-01 Available to backorder	Panel Bracket Assy	£56.32 £46.93
5	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
6	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
8	MO1134-3990-01 Available to backorder	Attachment-Side Panel	£175.97 £146.64
10	MO9632-0522-00 Available to backorder	Pop Rivet	£2.11 £1.76
11	MO1134-4130-01 Available to backorder	Cover Lower	£39.42 £32.85
12	MO1134-4135-01 Available to backorder	Relay Holder	£16.69 £13.91
13	MO9840-8013-16 Available to backorder	Screw	£1.55 £1.29
14	MO9699-0099-02 Available to backorder	Washer	£1.84 £1.53
15	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
16	MO112523060/0 In stock	Washer	£1.55 £1.29
17	MO1134-3658-02 Available to backorder	Tension Arm	£89.39 £74.49
18	MO1134-1565-10 Available to backorder	Spacer	£8.22 £6.85
19	MO1134-3379-01 In stock	Spring	£17.87 £14.89
20	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
21	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
22	MO9739-1031-22 In stock	Nut	£1.97 £1.64
23	MO1134-9047-01 In stock	V-Belt Replaced by Service Code. 1134-9047-01	£44.45 £37.04
24	MO1134-7526-01 Available to backorder	Magnet Clutch	£285.73 £238.11
25	MO1134-5016-01 Available to backorder	Bushing	£29.57 £24.64
26	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
27	MO387773575/0 Available to backorder	Bracket	£19.09 £15.91
28	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
36	MO337546547/0 Available to backorder	Plate	£6.77 £5.64
38	MO112793102/0 In stock	Screw	£1.55 £1.29
39	MO112293201/0 In stock	Nut	£1.70 £1.42
40	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
43	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
44	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
45	MO1134-5111-01 Available to backorder	Spring	£18.08 £15.07
46	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
47	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
48	MO337600000/1 Available to backorder	Protection	£7.62 £6.35
49	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
50	MO1134-1888-04 Available to backorder	Spacer	£9.01 £7.51
51	MO387605007/0 Available to backorder	Tension Roller Assy	£59.12 £49.27
52	MO9959-0612-16 Available to backorder	Screw	£1.46 £1.22
53	MO1134-3654-01 Available to backorder	Guard	£35.06 £29.22
54	MO112292102/0 In stock	Nut	£1.70 £1.42
55	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
56	MO1134-0222-00 Available to backorder	Washer	£16.88 £14.07
57	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
58	MO112521360/0 In stock	Washer	£1.55 £1.29
59	MO387605002/0 In stock	Centre Belt Pulley	£83.06 £69.22
60	MO1134-5548-01 In stock	Spacer	£13.94 £11.62
