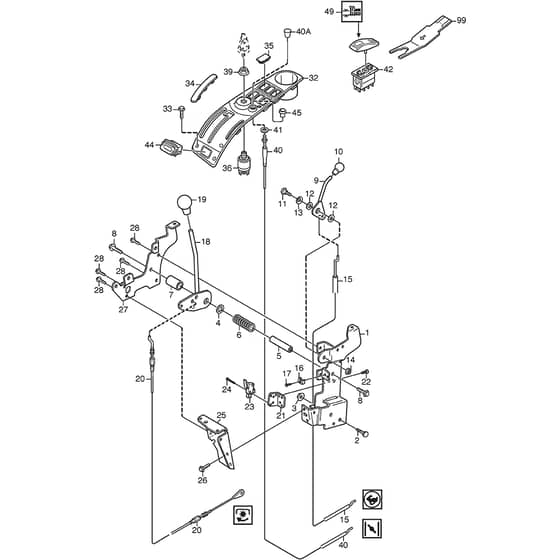

PARK 620 PW - 2014 - 13-6380-32 - Stiga Front Mower Hand Controls Diagram

Name: PARK 620 PW - 2014 - 13-6380-32 - Stiga Front Mower Hand Controls Diagram
SKU: park_620_pw_13_6380_32_hand_controls-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 620 PW - 2014 - 13-6380-32 - Stiga Front Mower Hand Controls Diagram

Description

Stiga PARK 620 PW Parts Diagram

Product Name - PARK 620 PW (ISO)

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6380-32

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4156-01 Available to backorder	Panel Bracket-Inner	£59.12 £49.27
2	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
5	MO1134-4065-01 Available to backorder	Control Shaft	£21.67 £18.06
6	MO1134-4079-01 Available to backorder	Spring	£8.45 £7.04
7	MO1134-4080-03 Available to backorder	Control Sleeve	£8.45 £7.04
8	MO9959-0820-16 In stock	Screw	£1.55 £1.29
9	MO1134-5465-02 Available to backorder	Throttle Cable	£17.17 £14.31
10	MO1134-4078-01 Available to backorder	Knob	£5.48 £4.57
11	MO1134-0240-00 In stock	Screw	£8.80 £7.33
12	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
13	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
14	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
16	MO9500-9991-00 Available to backorder	Wire Clamp	£7.03 £5.86
17	MO9943-0516-16 In stock	Screw	£1.22 £1.02
18	MO1134-4072-01 Available to backorder	Control Lever	£38.09 £31.74
19	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
20	MO1134-3573-03 Available to backorder	Pto Cable	£36.59 £30.49
21	MO1134-5358-01 Available to backorder	Switch Bracket	£29.56 £24.63
22	MO9852-8013-16 Available to backorder	Screw	£2.12 £1.77

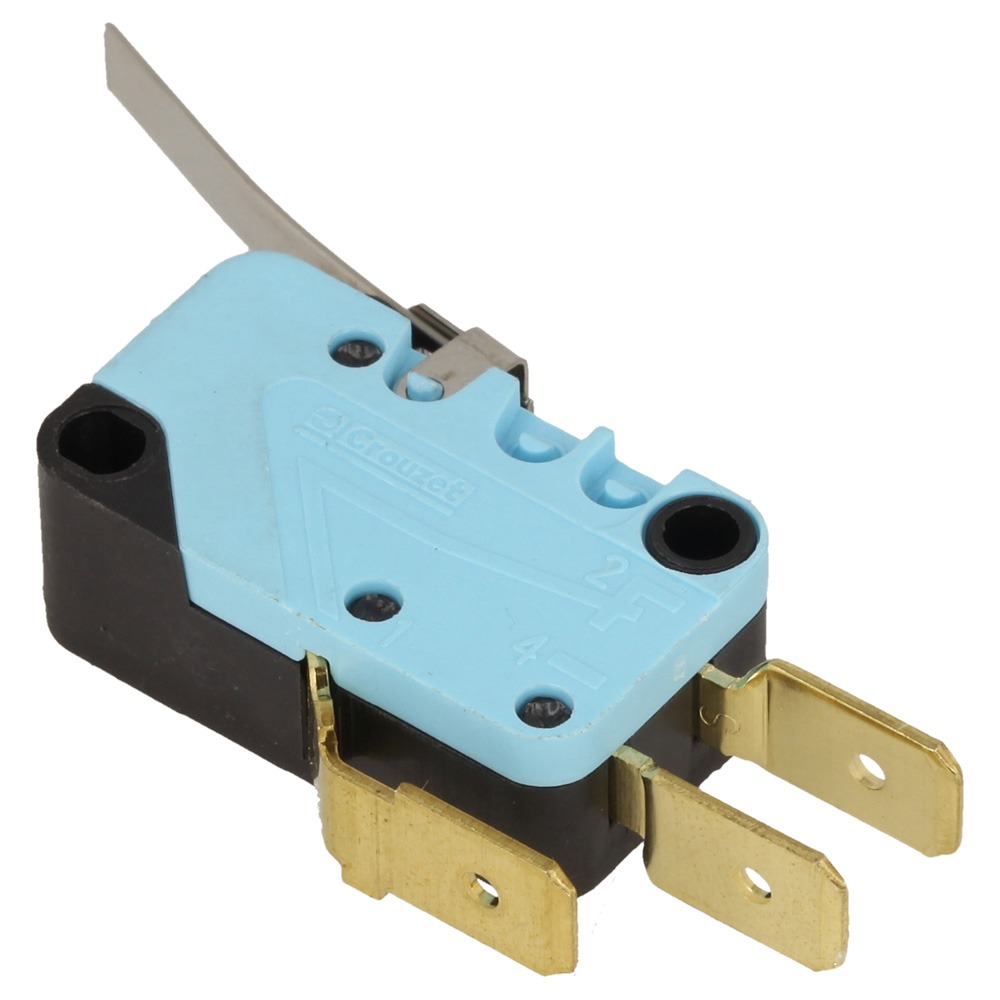

23	MO9400-0285-01 Available to backorder	Switch	£78.14 £65.12
24	MO9840-7716-16 Available to backorder	Screw L . 16 mm	£1.97 £1.64
25	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
27	MO1134-6327-01 Available to backorder	Front Plate	£21.47 £17.89
28	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
32	MO1134-6096-02 Available to backorder	Dashboard	£113.32 £94.43
33	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
34	MO1134-4154-01 Available to backorder	Cover	£8.16 £6.80
35	MO1134-4129-01 Available to backorder	Cover	£5.76 £4.80
36	MO1134-4093-01 Available to backorder	Ignition Switch	£64.75 £53.96
39	MO1134-4749-01 Available to backorder	Nut	£5.42 £4.52
40	MO1134-4338-01 Available to backorder	Control Button-Choke (40A)	£15.42 £12.85

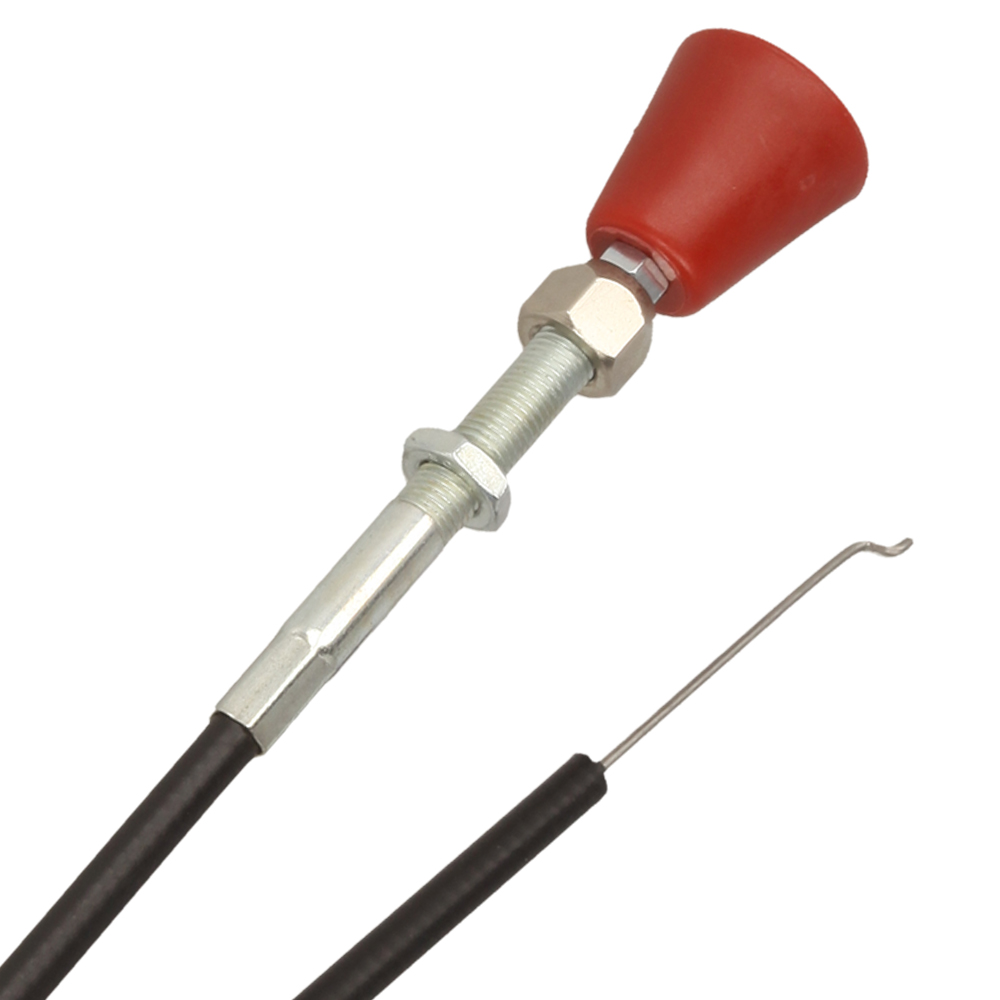

40	MO1134-2872-02 In stock	Choke Control	£60.54 £50.45
41	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
42	MO9400-0282-01 In stock	Switch	£75.31 £62.76
44	MO9400-0384-01 Available to backorder	Hour Meter	£83.81 £69.84
45	MO1134-4100-01 Available to backorder	Plug	£4.37 £3.64
49	MO9400-0280-03 Available to backorder	Switch Cover-Height Adjust	£17.87 £14.89
99	MO9400-0290-01 Available to backorder	Tool	£32.38 £26.98
