PARK 620 PW - 2014 - 13-6380-11 - Stiga Front Mower Steering Diagram

Name: PARK 620 PW - 2014 - 13-6380-11 - Stiga Front Mower Steering Diagram
SKU: park_620_pw_13_6380_11_steering-group
Price: 1.16 GBP
Availability: InStock

Part No. park_620_pw_13_6380_11_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 620 PW - 2014 - 13-6380-11 - Stiga Front Mower Steering Diagram

Description

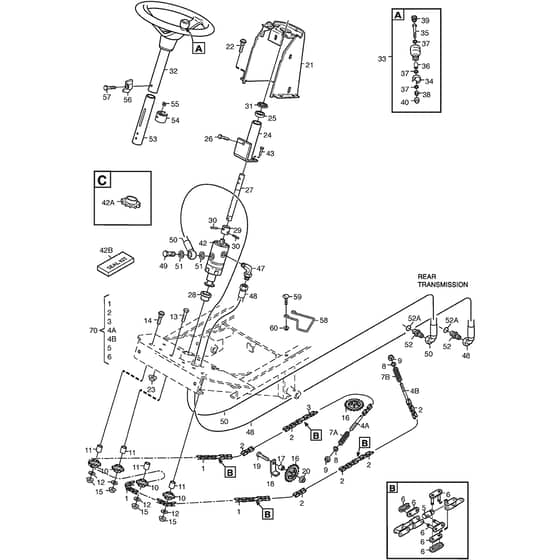

Stiga PARK 620 PW Parts Diagram

Product Name - PARK 620 PW

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6380-11

Engine Model -

	Part No.	Details
1	MO187000351/1 In stock	Chain	£35.20 £29.33
2	MO187000352/1 In stock	Chain 41 lõnk	£27.17 £22.64
3	MO187000354/1 Available to backorder	Chain 45 lõnk	£24.96 £20.80
4	MO1134-3550-02 Available to backorder	End Nipple L . 90 mm	£17.95 £14.96
4	MO1134-3550-01 Available to backorder	End Nipple L . 110 mm	£18.16 £15.13
5	MO137510324/1 Available to backorder	Connection Nipple	£6.64 £5.53
6	MO187060100/1 In stock	Chain Lock	£6.77 £5.64
7	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
7	MO1134-3817-02 Available to backorder	Spring L . 33 mm	£12.25 £10.21
10	MO1134-2816-01 In stock	Sprocket	£10.37 £8.64
11	MO1134-0041-02 In stock	Bushing	£9.73 £8.11
12	MO112521360/0 In stock	Washer	£1.55 £1.29
13	MO9997-1050-16 Available to backorder	Screw	£2.53 £2.11
14	MO9897-1040-12 Available to backorder	Screw	£3.25 £2.71
16	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
17	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
18	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
19	MO9997-1030-16 Available to backorder	Screw	£2.69 £2.24
20	MO9739-1031-22 In stock	Nut	£1.97 £1.64
21	MO1137-0066-01 Available to backorder	Steering Column Cover	£147.79 £123.16
22	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
23	MO112293201/0 In stock	Nut	£1.70 £1.42
24	MO1137-0044-01 Available to backorder	Steering Column Assy	£76.38 £63.65
25	MO9549-0017-00 Available to backorder	Ball Bearing	£11.82 £9.85
26	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
27	MO1137-0045-01 Available to backorder	Steering Rod	£50.69 £42.24
28	MO137038014/0 Available to backorder	Bushing	£12.38 £10.32
29	MO1134-4118-01 Available to backorder	Coupling	£22.10 £18.42
30	MO9595-0256-01 Available to backorder	Locating Pin	£2.11 £1.76
31	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
32	MO1134-5173-02 Available to backorder	Stering Wheel	£175.97 £146.64
34	MO1134-3769-01 Available to backorder	Knob Holder	£43.63 £36.36
35	MO9997-0870-16 Available to backorder	Screw	£2.11 £1.76
36	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
37	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
38	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
39	MO9403-0062-01 Available to backorder	Plug	£1.39 £1.16
40	MO118203854/0 Available to backorder	Ring Nut	£1.55 £1.29
42	MO1139-2124-01 Available to backorder	Seal Kit-Steering Booster	£161.89 £134.91
70	MO387106407/1 Available to backorder	Use 387106403.0	£302.66 £252.22
