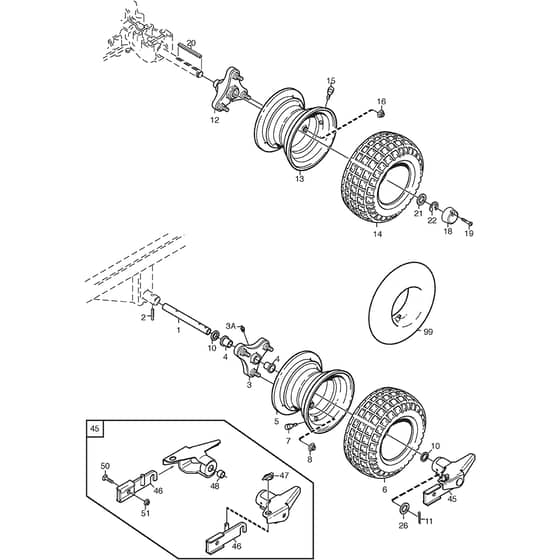

PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Wheel Diagram

Name: PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Wheel Diagram
SKU: park_620_ch_13_6310_12_wheel-group
Price: 1.29 GBP
Availability: InStock

Part No. park_620_ch_13_6310_12_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Wheel Diagram

Description

Stiga PARK 620 W Parts Diagram

Product Name - PARK 620 W

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6310-12

Engine Model -

	Part No.	Details
1	MO1134-0075-01 Available to backorder	Front Axle	£43.63 £36.36
2	MO112645710/0 In stock	Locating Pin	£2.11 £1.76
3	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
3	MO1134-4844-05 In stock	Wheel Hub Assy	£58.98 £49.15
4	MO137038009/0 In stock	Bushing	£5.76 £4.80
10	MO1134-0341-01 Available to backorder	Washer	£6.64 £5.53
11	MO9599-0080-02 Available to backorder	Cotter Pin	£2.11 £1.76
12	MO1134-4844-02 Available to backorder	Wheel Hub Assy	£56.16 £46.80
13	MO1134-5255-01 Available to backorder	Rim	£68.99 £57.49
13	MO1134-4558-01 Available to backorder	Rim	£106.27 £88.56
14	MO9545-0116-00 Available to backorder	Tyre 16 x 7.50 - 8	£85.15 £70.96
14	MO9545-0126-01 In stock	Tyre Compact 14	£71.09 £59.24
15	MO9545-0500-00 Available to backorder	Valve Assy.	£5.34 £4.45
16	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
18	MO1134-4796-01 Available to backorder	Hub Cap	£5.06 £4.22
19	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
20	MO1134-2471-01 Available to backorder	Key	£8.94 £7.45
22	MO9653-0001-04 Available to backorder	Lock Ring	£2.24 £1.87
26	MO9699-0042-02 Available to backorder	Washer	£6.64 £5.53
46	MO1134-7465-01 Available to backorder	Attachment Kit Inkl. Support RH + LH + pos 50-51	£63.34 £52.78
47	MO1137-0077-01 In stock	Locking Pin	£3.52 £2.93
99	MO9545-0203-00 Available to backorder	Inner Tube 16 X 6.50	£30.98 £25.82
