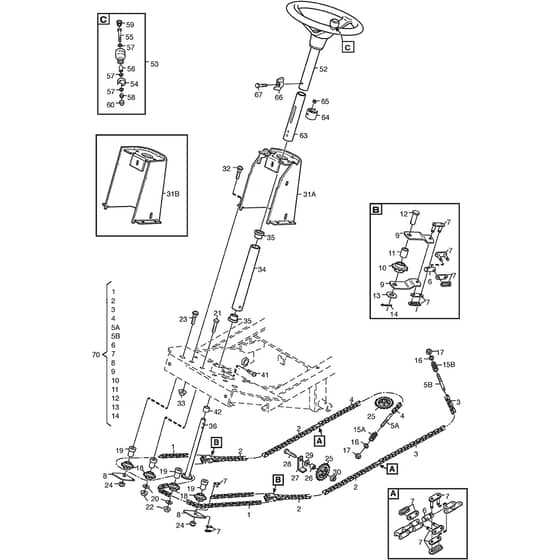

PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Steering 02 Diagram

Name: PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Steering 02 Diagram
SKU: park_620_ch_13_6310_12_steering_02-group
Price: 1.29 GBP
Availability: InStock

Part No. park_620_ch_13_6310_12_steering_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Steering 02 Diagram

Description

Stiga PARK 620 W Parts Diagram

Product Name - PARK 620 W

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6310-12

Engine Model -

	Part No.	Details
1	MO187000355/0 Available to backorder	Chain	£32.38 £26.98
2	MO1134-6374-09 Available to backorder	Chain 35 länk	£10.85 £9.04
3	MO187000352/1 In stock	Chain 41 länk	£27.17 £22.64
4	MO1134-6374-05 Available to backorder	Chain 47 länk	£15.28 £12.73
5	MO1134-3550-02 Available to backorder	End Nipple L . 90 mm	£17.95 £14.96
5	MO1134-3550-01 Available to backorder	End Nipple L . 110 mm	£18.16 £15.13
6	MO137510324/1 Available to backorder	Connection Nipple	£6.64 £5.53
7	MO187060100/1 In stock	Chain Lock	£6.77 £5.64
8	MO1134-5652-01 Available to backorder	Attachment	£5.06 £4.22
9	MO1134-5651-01 Available to backorder	Bracket	£12.19 £10.16
11	MO1134-0041-02 In stock	Bushing	£9.73 £8.11
12	MO1134-4817-01 Available to backorder	Pin	£12.67 £10.56
14	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
15	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
15	MO1134-3817-02 Available to backorder	Spring L . 33 mm	£12.25 £10.21
16	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
17	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
18	MO1134-2816-01 In stock	Sprocket	£10.37 £8.64
19	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
20	MO112521360/0 In stock	Washer	£1.55 £1.29
21	MO112692395/2 In stock	Screw	£3.25 £2.71
22	MO9739-1031-22 In stock	Nut	£1.97 £1.64
23	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
24	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
25	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
26	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
27	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
28	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
31	MO1137-0066-01 Available to backorder	Steering Column Cover	£147.79 £123.16
32	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
33	MO112293201/0 In stock	Nut	£1.70 £1.42
34	MO1134-1305-03 Available to backorder	Steering Column.Lower	£43.63 £36.36
35	MO1134-1901-01 Available to backorder	Bearing	£11.95 £9.96
36	MO1137-0120-02 Available to backorder	Steering Rod Assy	£218.70 £182.25
41	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
42	MO1134-2837-03 Available to backorder	Spacer	£11.06 £9.22
52	MO1134-5173-02 Available to backorder	Stering Wheel	£175.97 £146.64
53	MO1134-3769-01 Available to backorder	Steering Wheel Button Kit	£43.63 £36.36
70	MO387106404/0 Available to backorder	Steering Chain Assembly	£234.32 £195.27
