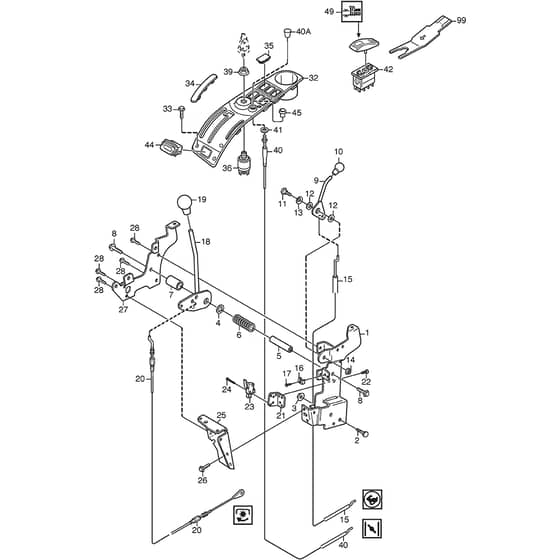

PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Hand Controls Diagram

Name: PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Hand Controls Diagram
SKU: park_620_ch_13_6310_12_hand_controls-group
Price: 1.05 GBP
Availability: InStock

Part No. park_620_ch_13_6310_12_hand_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 620 W - 2014 - 13-6310-12 - Stiga Front Mower Hand Controls Diagram

Description

Stiga PARK 620 W Parts Diagram

Product Name - PARK 620 W

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6310-12

Engine Model -

	Part No.	Details
2	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
3	MO112293201/0 In stock	Nut	£1.70 £1.42
4	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
5	MO1134-4065-01 Available to backorder	Control Shaft	£21.66 £18.05
6	MO1134-4079-01 Available to backorder	Spring	£8.45 £7.04
7	MO1134-4080-03 Available to backorder	Control Sleeve	£8.45 £7.04
8	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
9	MO1134-5465-02 Available to backorder	Throttle Cable	£17.17 £14.31
10	MO1134-4078-01 Available to backorder	Knob	£5.47 £4.56
11	MO1134-0240-00 In stock	Screw	£8.80 £7.33
12	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
13	MO9694-0001-00 Available to backorder	Washer	£1.63 £1.36
14	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
15	MO137065323/0 Available to backorder	Throttle Cable	£30.98 £25.82
16	MO9500-9991-00 Available to backorder	Wire Clamp	£7.03 £5.86
17	MO9943-0516-16 In stock	Screw	£1.26 £1.05
18	MO1134-4072-01 Available to backorder	Control Lever	£35.20 £29.33
19	MO1134-2551-01 Available to backorder	Knob	£11.20 £9.33
20	MO1134-3573-03 Available to backorder	Pto Cable	£36.59 £30.49
21	MO1134-5358-01 Available to backorder	Switch Bracket	£29.57 £24.64
22	MO9852-8013-16 Available to backorder	Screw	£2.11 £1.76
23	MO9400-0285-01 Available to backorder	Switch	£78.16 £65.13
24	MO9840-7716-16 Available to backorder	Screw L . 16 mm	£1.97 £1.64
25	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
27	MO1134-6327-01 Available to backorder	Front Plate	£21.47 £17.89
28	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
33	MO9946-0525-16 Available to backorder	Screw	£2.11 £1.76
34	MO1134-4154-01 Available to backorder	Cover	£8.16 £6.80
35	MO1134-4129-01 Available to backorder	Cover	£5.76 £4.80
36	MO1134-4093-01 In stock	Ignition Switch	£64.75 £53.96
39	MO1134-4749-01 Available to backorder	Nut	£5.65 £4.71
40	MO1134-4338-01 Available to backorder	Control Button-Choke (40A)	£15.42 £12.85
40	MO1134-2872-02 Available to backorder	Choke Control	£62.93 £52.44
41	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
42	MO9400-0282-01 In stock	Switch	£75.31 £62.76
44	MO9400-0384-01 Available to backorder	Hour Meter	£88.38 £73.65
45	MO1134-4100-01 Available to backorder	Plug	£4.37 £3.64
49	MO9400-0280-03 In stock	Switch Cover-Height Adjust	£17.87 £14.89
99	MO9400-0290-01 Available to backorder	Tool	£32.38 £26.98
