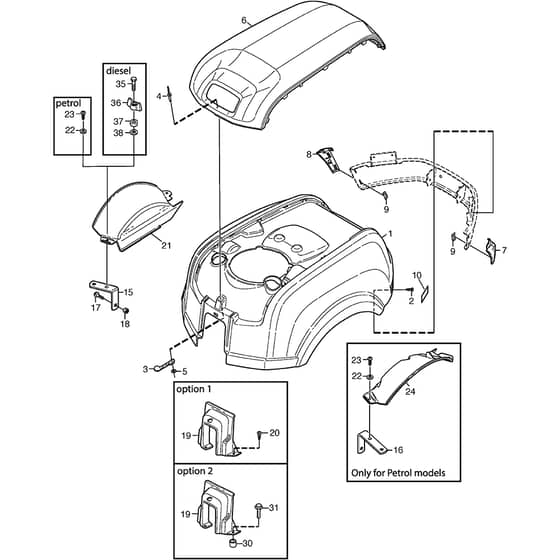

PARK 540 X - 2016-2017 - 2F6230625/S16 - Stiga Front Mower Body Works 02 Diagram

Name: PARK 540 X - 2016-2017 - 2F6230625/S16 - Stiga Front Mower Body Works 02 Diagram
SKU: park_540_x_2f6230625_s16_body_works_02-group
Price: 1.29 GBP
Availability: InStock

Part No. park_540_x_2f6230625_s16_body_works_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 540 X - 2016-2017 - 2F6230625/S16 - Stiga Front Mower Body Works 02 Diagram

Description

Stiga PARK 540 X Parts Diagram

Product Name - PARK 540 X

Model Year - 2016-2017

Model Type - P 901 CH

Art.N - 2F6230625/S16

Engine Model - B&S Intek 4185 AVS

	Part No.	Details
1	MO337076805/0 Available to backorder	Engine Hood	£309.68 £258.07
3	MO1134-9028-01 Available to backorder	Rubber Strap (3 Pcs) Sats 3 st.kit of 3	£26.88 £22.40
5	MO9699-0120-02 Available to backorder	Washer	£2.40 £2.00
6	MO337110334/0 Available to backorder	Engine Cover	£76.74 £63.95
7	MO337110336/0 Available to backorder	Bumper End-Lh	£14.64 £12.20
8	MO337110335/0 Available to backorder	Bumper End-Rh	£13.94 £11.62
9	MO1134-6310-01 Available to backorder	Clip	£1.97 £1.64
10	MO337580302/0 Available to backorder	Plate	£7.18 £5.98
15	MO1134-4012-03 Available to backorder	Support. Right	£18.43 £15.36
16	MO1134-4012-04 Available to backorder	Support. Left Not for Diesel models	£18.43 £15.36
17	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
19	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
21	MO337491256/0 Available to backorder	Inner Mud Guard-Rh (Park)	£104.18 £86.82
22	MO112523040/0 In stock	Washer Not for Diesel models	£1.55 £1.29
23	MO9893-0616-16 Available to backorder	Screw Not for Diesel models	£2.22 £1.85
24	MO337491257/0 Available to backorder	Inner Mud Guard-Lh (Park) Not for Diesel models	£104.18 £86.82
30	MO1137-0020-02 Available to backorder	Spacer	£5.22 £4.35
35	MO112791500/0 Available to backorder	Screw Te M6X25 Uni 5739 Acc.8.8	£1.63 £1.36
