Stiga PARK 540 LPX Parts Diagram

Product Name - PARK 540 LPX (ISO)

Model Year - 2014-2015

Model Type - P 901 CH

Art.N - 13-6381-31

Engine Model - B&S Intek 4185 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO187000351/1 In stock	Chain	£35.20 £29.33

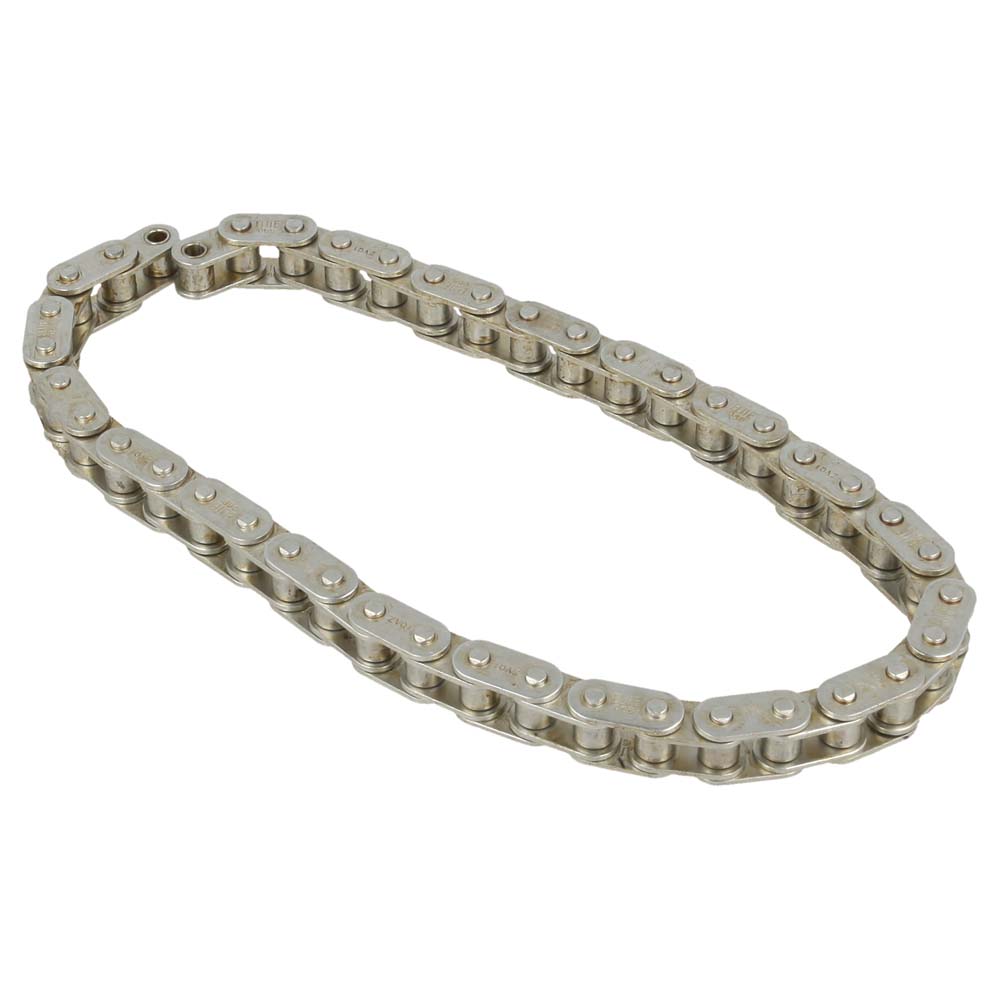

2	MO187000352/1 In stock	Chain 41 links	£27.17 £22.64

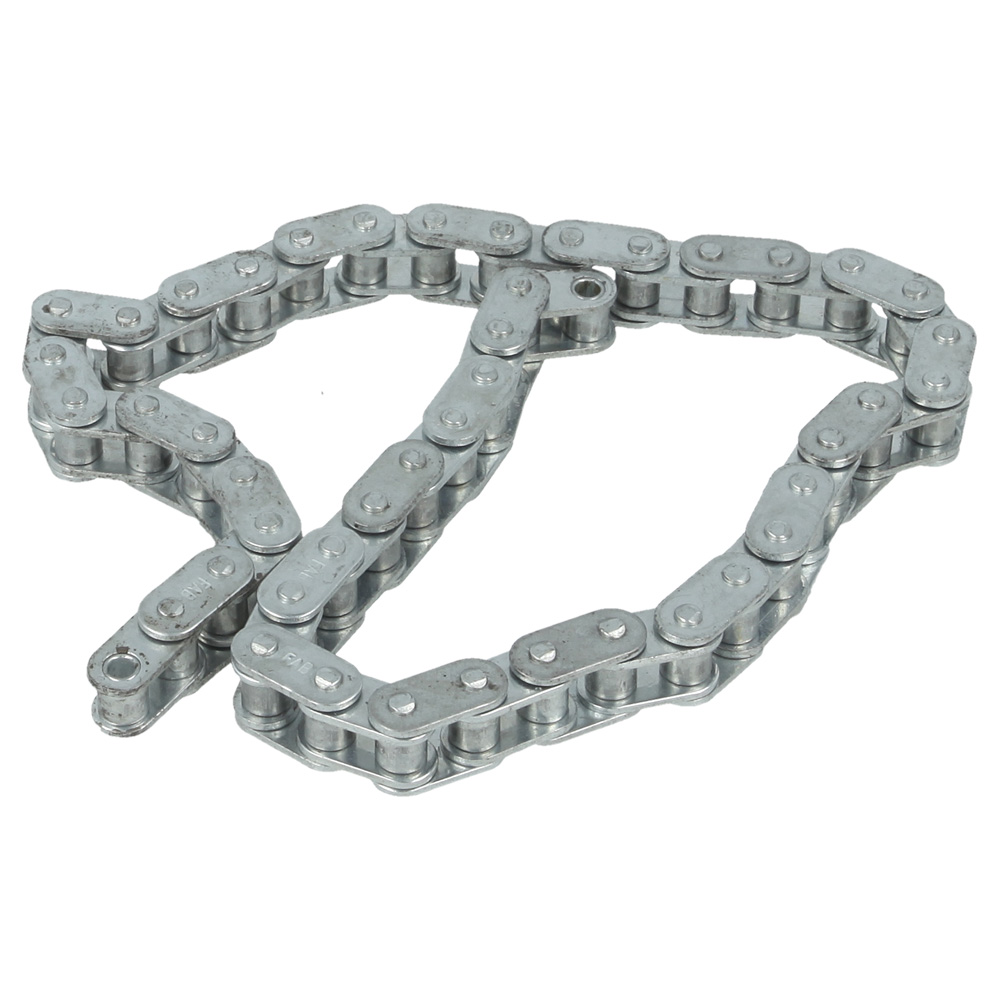

3	MO187000354/1 Available to backorder	Chain 45 links	£24.96 £20.80

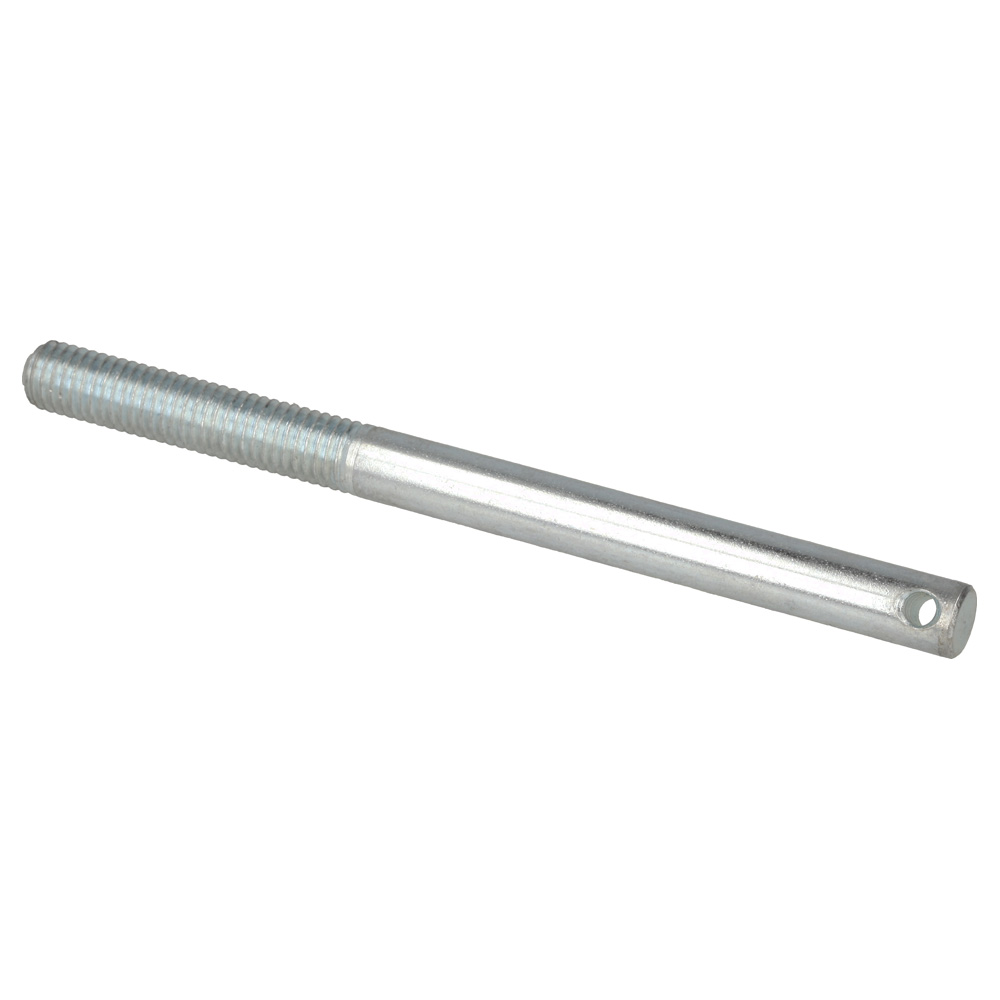

4	MO1134-3550-01 Available to backorder	End Nipple L . 110 mm	£18.16 £15.13

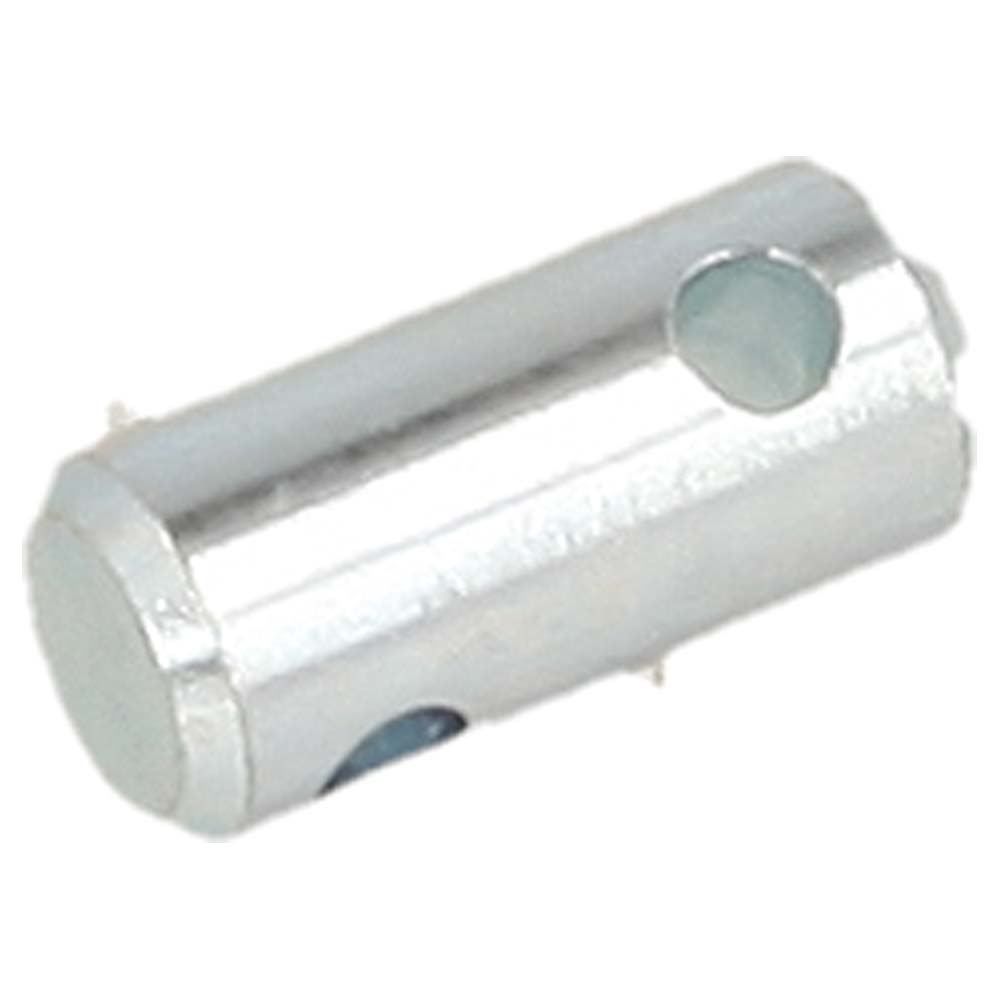

5	MO137510324/1 Available to backorder	Connection Nipple	£6.62 £5.52
6	MO187060100/1 In stock	Chain Lock	£6.76 £5.63

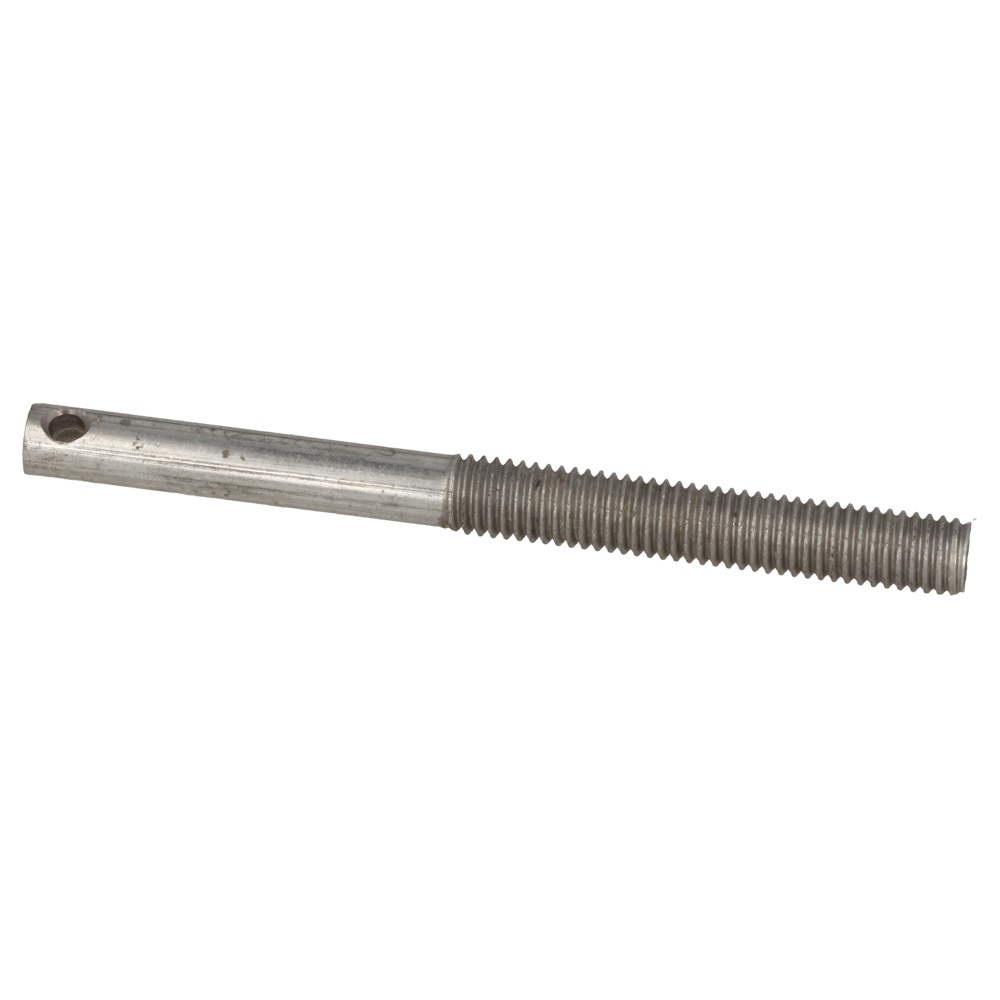

7	MO1134-3550-02 Available to backorder	End Nipple L . 90 mm	£17.95 £14.96
8	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
11	MO1134-0041-02 In stock	Bushing	£9.72 £8.10
12	MO112521360/0 In stock	Washer	£1.55 £1.29
13	MO112794900/0 Available to backorder	Screw	£1.69 £1.41
14	MO9897-1040-12 Available to backorder	Screw	£3.24 £2.70
16	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
17	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
18	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
19	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
20	MO9739-1031-22 In stock	Nut	£1.97 £1.64
21	MO1137-0066-01 Available to backorder	Steering Column Cover	£147.80 £123.17
22	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
23	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
24	MO1137-0044-01 Available to backorder	Steering Column Assy	£76.39 £63.66
25	MO9549-0017-00 Available to backorder	Ball Bearing	£11.82 £9.85
26	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
27	MO1137-0045-01 Available to backorder	Steering Rod	£50.68 £42.23
28	MO137038014/0 Available to backorder	Bushing	£12.38 £10.32
29	MO1134-4118-01 Available to backorder	Coupling	£22.10 £18.42
30	MO9595-0256-01 Available to backorder	Locating Pin	£2.12 £1.77
31	MO9695-0011-00 Available to backorder	Washer	£2.12 £1.77
42	MO187305501/1 Available to backorder	Steering Booster Incl. pos 43	£675.71 £563.09
43	MO1139-2106-01 Available to backorder	Pinion (Steering Booster)	£147.80 £123.17
44	MO1139-2124-01 Available to backorder	Seal Kit-Steering Booster	£161.89 £134.91
45	MO9939-0612-16 Available to backorder	Screw	£1.97 £1.64
47	MO1134-7073-01 Available to backorder	Hydraulic Coupling 90	£39.42 £32.85
48	MO1137-0195-02 Available to backorder	Hydraulic Hose L . 1740 mm	£95.74 £79.78
49	MO1134-6323-01 Available to backorder	Banjo Bolt 3.8	£9.14 £7.62
50	MO1137-0214-03 Available to backorder	Hydraulic Hose L . 2050 mm	£100.66 £83.88
51	MO1134-4948-02 Available to backorder	Washer	£2.12 £1.77
52	MO1134-4282-01 Available to backorder	Hydraulic Nipple	£45.04 £37.53
53	MO1137-0070-01 Available to backorder	Steering Tube-Inner Assy	£73.20 £61.00
54	MO1134-5177-01 Available to backorder	Slide	£13.16 £10.97
55	MO9710-0631-12 Available to backorder	Nut	£10.01 £8.34
57	MO337394201/0 Available to backorder	Wing Nut	£13.24 £11.03
59	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
60	MO112292102/0 In stock	Nut	£1.69 £1.41
61	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
62	MO1134-3817-02 Available to backorder	Spring L . 33 mm	£12.25 £10.21
64	MO9404-0028-01 Available to backorder	O-Ring	£5.22 £4.35
70	MO387106407/1 Available to backorder	Steering Chain Assy Incl. pos 1 - 6	£302.66 £252.22
72	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
73	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
74	MO112793102/0 In stock	Screw	£1.55 £1.29
75	MO337580550/0 Available to backorder	Steering Plate	£8.74 £7.28
76	MO337961200/0 Available to backorder	Steering Wheel [Black]	£344.89 £287.41
