PARK 540 DPX - 2014-2015 - 13-6319-31 - Stiga Front Mower Hydraulic Lift Diagram

Name: PARK 540 DPX - 2014-2015 - 13-6319-31 - Stiga Front Mower Hydraulic Lift Diagram
SKU: park_540_dpx_13_6319_31_hydraulic_lift-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 540 DPX - 2014-2015 - 13-6319-31 - Stiga Front Mower Hydraulic Lift Diagram

Description

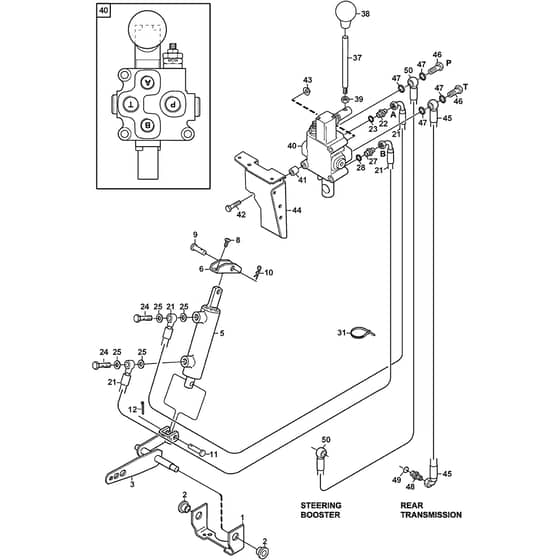

Stiga PARK 540 DPX Parts Diagram

Product Name - PARK 540 DPX

Model Year - 2014-2015

Model Type - P 901 CH D

Art.N - 13-6319-31

Engine Model - Hatz 1B50V Diesel

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-4117-01 Available to backorder	Bracket	£30.97 £25.81
2	MO1134-2684-01 Available to backorder	Bearing	£6.76 £5.63
3	MO387256051/0 Available to backorder	Lift Arm Assy	£122.46 £102.05
5	MO1137-0071-01 Available to backorder	Hydraulic Cylinder	£358.98 £299.15
6	MO1134-4815-01 Available to backorder	Cylinder Bracket	£57.71 £48.09
8	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
9	MO1134-4816-01 Available to backorder	Pin Ø 10 x 29	£13.16 £10.97
10	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
11	MO1134-4817-01 Available to backorder	Pin Ø 10 x 34	£12.67 £10.56
12	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
21	MO1137-0193-01 Available to backorder	Hydraulic Hose	£91.51 £76.26
24	MO1134-4826-01 Available to backorder	Banjo Bolt	£15.48 £12.90
25	MO1134-4947-01 Available to backorder	Washer	£5.35 £4.46
27	MO1134-4824-01 Available to backorder	Adapter 1.4" x 1.8"	£11.53 £9.61
28	MO1134-4948-01 Available to backorder	Washer 1.4"	£2.68 £2.23
31	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
37	MO1134-6345-01 Available to backorder	Lever	£80.76 £67.30
38	MO1134-2551-01 Available to backorder	Knob	£11.18 £9.32
39	MO112154220/0 Available to backorder	Nut	£1.55 £1.29

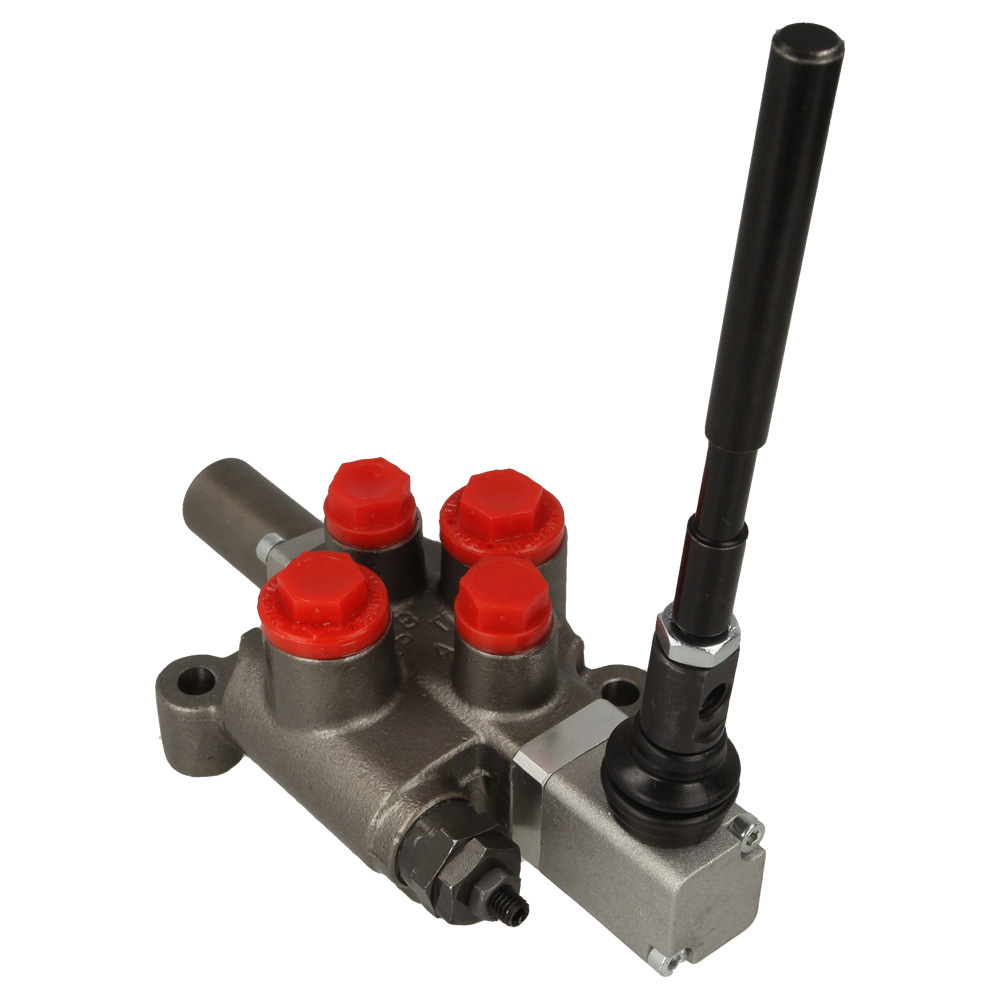

40	MO1134-7743-01 Available to backorder	Hand Operated Valve Incl. pos 37-38-39	£464.54 £387.12
42	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
43	MO112292102/0 In stock	Nut	£1.69 £1.41
44	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
45	MO1134-4282-01 Available to backorder	Hydraulic Nipple 9.16" x 9.16"	£45.04 £37.53
46	MO1134-6323-01 Available to backorder	Banjo Bolt 3.8 3.8"	£9.14 £7.62
47	MO1134-4948-02 Available to backorder	Washer 3.8"	£2.12 £1.77
48	MO1137-0214-04 Available to backorder	Tube	£88.68 £73.90
49	MO9404-0028-01 Available to backorder	O-Ring	£5.22 £4.35
50	MO1137-0216-01 Available to backorder	Hydraulic Hose L.2050mm	£125.29 £104.41
