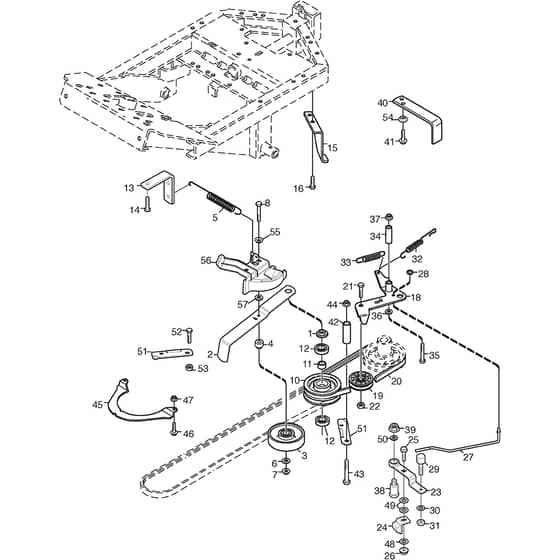

PARK 520 P - 2015-2020 - 2F6220610/S15 - Stiga Front Mower PTO Diagram

Name: PARK 520 P - 2015-2020 - 2F6220610/S15 - Stiga Front Mower PTO Diagram
SKU: park_520_p_2f6220610_s15_pto-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 520 P - 2015-2020 - 2F6220610/S15 - Stiga Front Mower PTO Diagram

Description

Stiga PARK 520 P Parts Diagram

Product Name - PARK 520 P

Model Year - 2015-2020

Model Type - P 901 CH

Art.N - 2F6220610/S15

Engine Model - B&S Intek 4185 AVS

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-5548-01 Available to backorder	Spacer	£13.93 £11.61
2	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
3	MO387605007/0 Available to backorder	Tension Roller Assy	£59.12 £49.27
4	MO1134-1888-04 Available to backorder	Spacer	£9.00 £7.50
5	MO1134-5111-01 Available to backorder	Spring	£18.10 £15.08
8	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
10	MO387605002/0 Available to backorder	Centre Belt Pulley	£83.06 £69.22
11	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
12	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
13	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
14	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
18	MO1134-2018-02 Available to backorder	Tension Arm	£39.42 £32.85
19	MO387605008/0 In stock	Tension Roller (Black)	£35.20 £29.33
20	MO1134-9173-01 In stock	Belt Replaced by Service Code. 1134-9173-01	£28.28 £23.57
21	MO112794300/0 Available to backorder	Screw	£1.82 £1.52
22	MO112295200/0 In stock	Nut	£1.40 £1.17
23	MO387318251/0 Available to backorder	Brake Arm	£30.97 £25.81
24	MO1134-4164-03 Available to backorder	Brake Pad	£30.97 £25.81
25	MO112818700/0 Available to backorder	Screw	£1.55 £1.29
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO137033100/0 Available to backorder	Brake Rod	£22.25 £18.54
28	MO112604897/0 Available to backorder	Starlock	£1.55 £1.29
29	MO1134-4170-01 Available to backorder	Nippel	£16.75 £13.96
30	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
31	MO112154510/0 In stock	Nut	£1.55 £1.29
32	MO4231-0013-00 In stock	Spring	£8.52 £7.10
33	MO1135-3307-01 Available to backorder	Spring	£23.30 £19.42
34	MO1134-1565-10 Available to backorder	Spacer	£8.23 £6.86
35	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
37	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
38	MO1134-4163-02 Available to backorder	Shoulder Bolt	£10.27 £8.56
40	MO1134-3958-01 Available to backorder	Belt Guide	£17.04 £14.20
41	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
42	MO1134-0041-03 Available to backorder	Bushing	£11.27 £9.39
43	MO112794950/0 Available to backorder	Screw	£3.94 £3.28
44	MO9739-1031-22 In stock	Nut	£1.97 £1.64
45	MO1134-3654-01 Available to backorder	Guard	£35.05 £29.21
46	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
47	MO112292102/0 In stock	Nut	£1.69 £1.41
48	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
49	MO112521360/0 In stock	Washer	£1.55 £1.29
51	MO337546547/0 Available to backorder	Plate	£6.76 £5.63
52	MO112793102/0 In stock	Screw	£1.55 £1.29
53	MO112293201/0 In stock	Nut	£1.69 £1.41
54	MO325160039/0 Available to backorder	Spacer	£1.55 £1.29
55	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
56	MO337600000/1 Available to backorder	Protection	£7.61 £6.34
57	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
