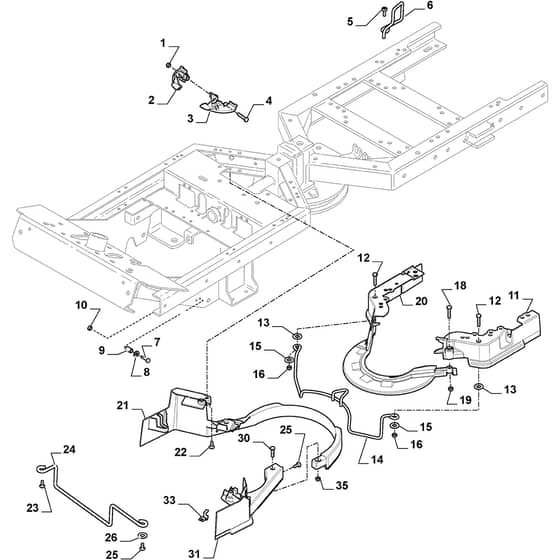

PARK 520 P - 2015-2020 - 2F6220610/S15 - Stiga Front Mower Belt Protection Diagram

Description

Stiga PARK 520 P Parts Diagram

Product Name - PARK 520 P

Model Year - 2015-2020

Model Type - P 901 CH

Art.N - 2F6220610/S15

Engine Model - B&S Intek 4185 AVS

	Part No.	Details
2	MO337600010/0 Available to backorder	Protection	£4.08 £3.40
3	MO337600011/0 Available to backorder	Protection	£3.92 £3.27
5	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
7	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
8	MO112523050/0 In stock	Washer	£1.57 £1.31
9	MO1134-1565-14 Available to backorder	Spacer	£1.84 £1.53
10	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO337060001/1 Available to backorder	Belt Cover	£6.90 £5.75
12	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
13	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
14	MO337785100/0 Available to backorder	Support	£56.32 £46.93
15	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
18	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
20	MO337060000/2 Available to backorder	Belt Cover	£7.46 £6.22
