PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Transmission Diagram

Name: PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Transmission Diagram
SKU: park_520_l_13_6311_32_transmission-group
Price: 1.16 GBP
Availability: InStock

Part No. park_520_l_13_6311_32_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Transmission Diagram

Description

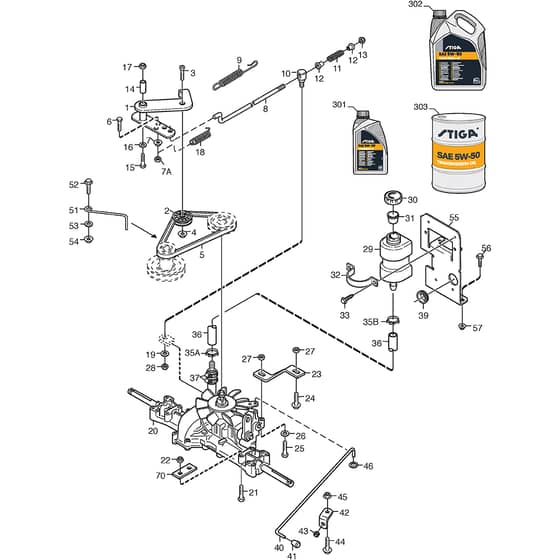

Stiga PARK 520 L Parts Diagram

Product Name - PARK 520 L (ISO)

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6311-32

Engine Model -

	Part No.	Details
1	MO387205001/0 Available to backorder	Tension Arm	£45.04 £37.53
2	MO387605028/0 In stock	Tension Roller	£44.70 £37.25
3	MO9924-1035-16 Available to backorder	Screw	£5.60 £4.67
4	MO112295200/0 In stock	Nut	£1.39 £1.16
5	MO1134-9058-01 In stock	Drive Belt Replaced by Service Code. 1134-9058-01	£19.50 £16.25
6	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
7	MO112292102/0 In stock	Nut	£1.70 £1.42
8	MO1134-3377-02 Available to backorder	Control Rod	£16.46 £13.72
9	MO4231-0013-00 In stock	Spring	£8.53 £7.11
10	MO1134-4171-01 Available to backorder	Pivot Pin	£7.96 £6.63
11	MO1134-4183-01 Available to backorder	Spring	£8.22 £6.85
12	MO1134-3456-01 Available to backorder	Bushing	£5.76 £4.80
14	MO1134-1565-08 Available to backorder	Spacer	£8.66 £7.22
16	MO112523060/0 In stock	Washer	£1.55 £1.29
18	MO1134-6414-01 In stock	Spring	£5.34 £4.45
19	MO112523040/0 In stock	Washer	£1.55 £1.29
20	MO1137-0123-01 Available to backorder	Transaxle K46Ci Kanzaki K46CI	£1,554.77 £1,295.64
21	MO9960-0860-12 Available to backorder	Screw L . 60 mm	£1.97 £1.64
21	MO9997-0870-16 Available to backorder	Screw L . 70 mm	£2.11 £1.76
23	MO1134-3913-01 Available to backorder	Strut	£17.17 £14.31
24	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
25	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
26	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
27	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
28	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
303	MO1111-9300-01 Available to backorder	Transmission Oil Sae 5W-50 60L	£945.30 £787.75
