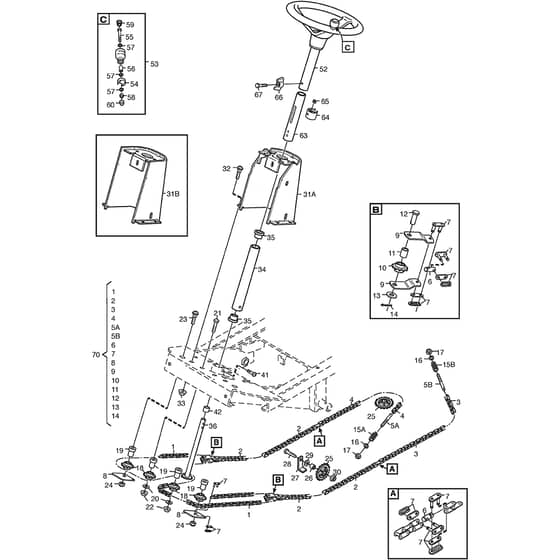

PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Steering 02 Diagram

Description

Stiga PARK 520 L Parts Diagram

Product Name - PARK 520 L (ISO)

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6311-32

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO187000355/0 Available to backorder	Chain	£32.38 £26.98
2	MO1134-6374-09 Available to backorder	Chain 35 länk	£10.28 £8.57
3	MO187000352/1 In stock	Chain 41 länk	£27.17 £22.64

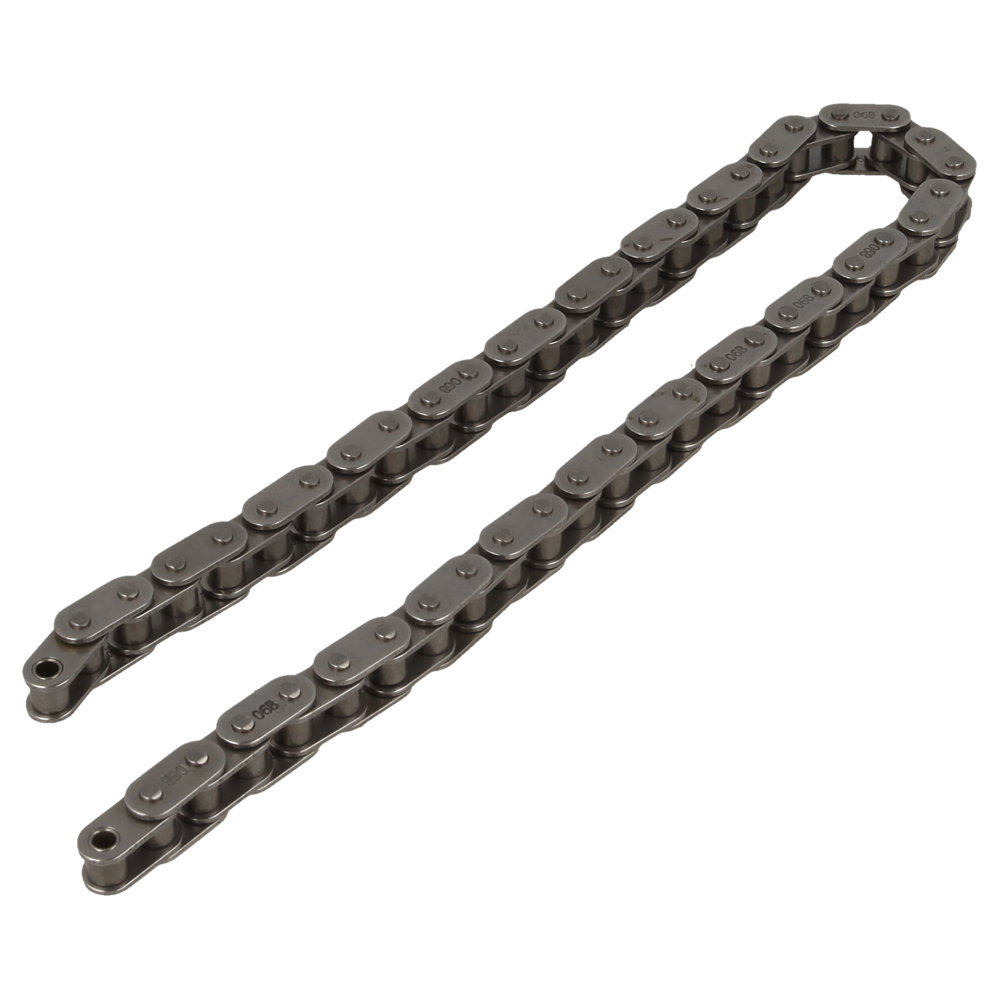

4	MO1134-6374-05 Available to backorder	Chain 47 länk	£14.48 £12.07
5	MO1134-3550-02 Available to backorder	End Nipple L . 90 mm	£17.95 £14.96
5	MO1134-3550-01 Available to backorder	End Nipple L . 110 mm	£18.16 £15.13
6	MO137510324/1 Available to backorder	Connection Nipple	£6.62 £5.52
7	MO187060100/1 In stock	Chain Lock	£6.76 £5.63
8	MO1134-5652-01 Available to backorder	Attachment	£5.06 £4.22
9	MO1134-5651-01 Available to backorder	Bracket	£12.20 £10.17
11	MO1134-0041-02 In stock	Bushing	£9.72 £8.10
12	MO1134-4817-01 Available to backorder	Pin	£12.67 £10.56
14	MO9599-0054-02 Available to backorder	Split Pin	£1.97 £1.64
15	MO1134-3817-02 Available to backorder	Spring L . 33 mm	£12.25 £10.21
15	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
18	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
19	MO1134-5653-01 Available to backorder	Spacer	£10.56 £8.80
21	MO112692395/2 In stock	Screw	£3.24 £2.70
23	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
24	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
25	MO1134-3547-01 In stock	Sprocket	£12.67 £10.56
26	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
27	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
28	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
29	MO112521360/0 In stock	Washer	£1.55 £1.29
30	MO9739-1031-22 In stock	Nut	£1.97 £1.64
31	MO1137-0066-01 Available to backorder	Steering Column Cover	£147.80 £123.17
32	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
33	MO112293201/0 In stock	Nut	£1.69 £1.41
34	MO1134-1305-03 Available to backorder	Steering Column.Lower	£43.64 £36.37
35	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
36	MO1137-0120-02 Available to backorder	Steering Rod Assy	£218.70 £182.25
41	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
42	MO1134-2837-03 Available to backorder	Spacer	£11.06 £9.22
52	MO1134-5173-02 Available to backorder	Stering Wheel	£165.06 £137.55
54	MO1134-3769-01 Available to backorder	Knob Holder	£43.64 £36.37
55	MO9997-0870-16 Available to backorder	Screw	£2.12 £1.77
56	MO1134-1565-06 Available to backorder	Spacer	£10.98 £9.15
57	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
58	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
59	MO9403-0062-01 Available to backorder	Plug	£1.40 £1.17
60	MO118203854/0 Available to backorder	Ring Nut	£1.55 £1.29
63	MO1137-0070-01 Available to backorder	Steering Tube-Inner Assy	£73.20 £61.00
64	MO1134-5177-01 Available to backorder	Slide	£13.16 £10.97
65	MO9710-0631-12 Available to backorder	Nut	£10.01 £8.34
66	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
67	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
70	MO387106404/0 Available to backorder	Steering Chain Assy Inkl. pos 1-14	£235.52 £196.27
