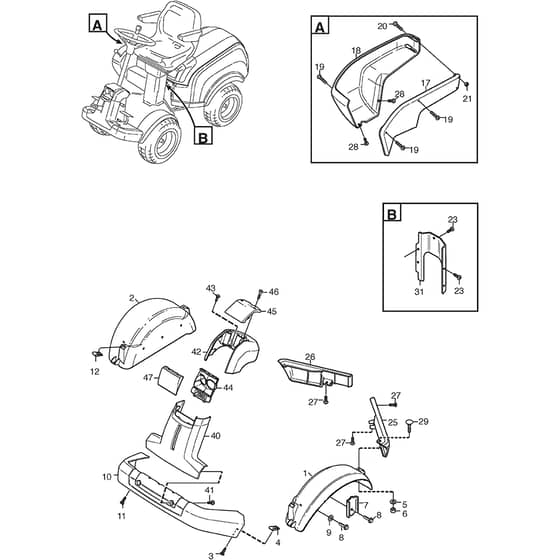

PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Body Works 01 Diagram

Name: PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Body Works 01 Diagram
SKU: park_520_l_13_6311_32_body_works_01-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 520 L - 2014 - 13-6311-32 - Stiga Front Mower Body Works 01 Diagram

Description

Stiga PARK 520 L Parts Diagram

Product Name - PARK 520 L (ISO)

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6311-32

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0048-01 Available to backorder	Mud Guard. Front-Lh	£115.99 £96.66
2	MO1137-0048-02 Available to backorder	Mud Guard. Front-Rh	£109.49 £91.24
3	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
4	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
5	MO112523040/0 In stock	Washer	£1.49 £1.24
6	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
7	MO1137-0088-01 Available to backorder	Support Plate	£2.26 £1.88
8	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
9	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
47	MO1137-0054-01 Available to backorder	Lamp Glass	£8.02 £6.68
