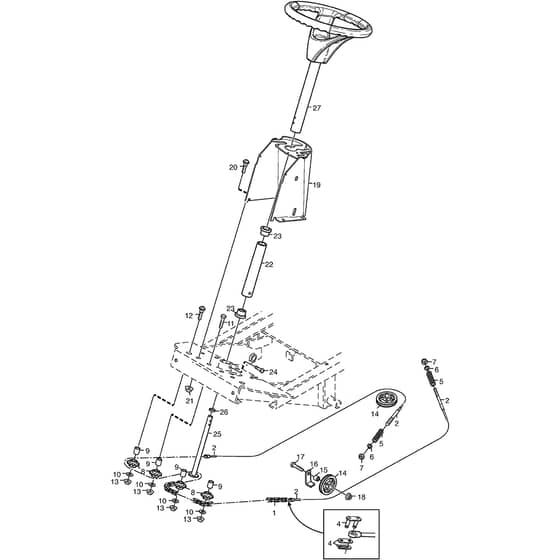

PARK 520 L - 2014 - 13-6311-12 - Stiga Front Mower Steering Diagram

Description

Stiga PARK 520 L Parts Diagram

Product Name - PARK 520 L

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6311-12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO187000351/1 In stock	Chain	£35.20 £29.33

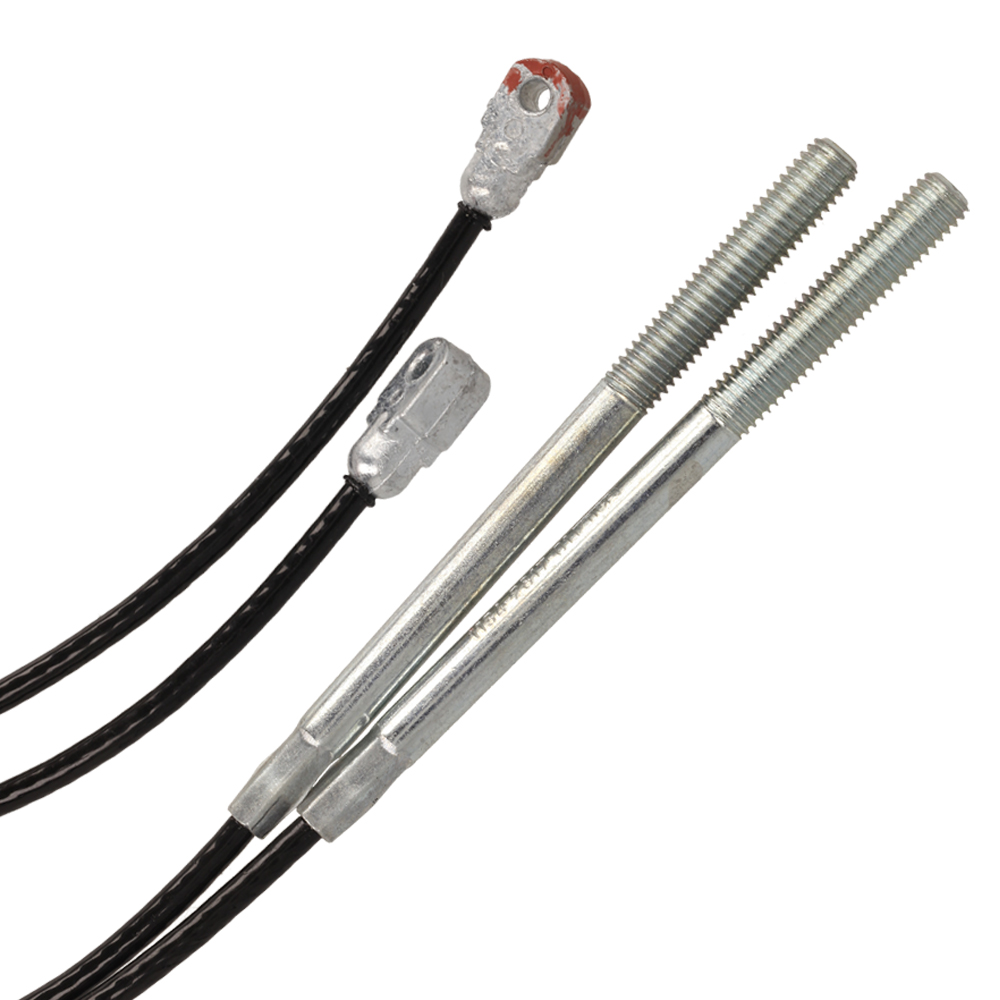

2	MO1134-9084-01 Available to backorder	Steering Wire Sats võ+h÷.kit L+R	£54.90 £45.75
4	MO187060100/1 In stock	Chain Lock	£6.76 £5.63
5	MO1134-3817-01 In stock	Spring L . 58 mm	Was £12.67 £10.56 Special Price £7.94 £6.62
6	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
8	MO1134-2816-01 In stock	Sprocket	£10.36 £8.63
9	MO1134-0041-02 In stock	Bushing	£9.72 £8.10
10	MO112521360/0 In stock	Washer	£1.55 £1.29
11	MO9997-1050-16 Available to backorder	Screw	£2.53 £2.11
12	MO9897-1040-12 Available to backorder	Screw	£3.24 £2.70
14	MO1134-9025-01 Available to backorder	Steering Pulley Sats 2 st.kit of 2	£20.69 £17.24
15	MO1134-0041-01 Available to backorder	Bushing	£8.94 £7.45
16	MO1134-0046-00 Available to backorder	Wire Clamp	£1.97 £1.64
17	MO9997-1030-16 Available to backorder	Screw	£2.68 £2.23
18	MO9739-1031-22 In stock	Nut	£1.97 £1.64
19	MO1134-5349-01 Available to backorder	Steering Console (Yellow) 1-00	£104.87 £87.39
20	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
21	MO112293201/0 In stock	Nut	£1.69 £1.41
22	MO1134-1305-05 Available to backorder	Steering Column.Lower	£44.56 £37.13
23	MO1134-1901-01 Available to backorder	Bearing	£11.96 £9.97
24	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
25	MO1137-0079-02 Available to backorder	Steering Rod Assy	£50.68 £42.23
26	MO1134-2837-01 Available to backorder	Spacer	£9.16 £7.63
27	MO1134-5496-03 Available to backorder	Steering Wheel	£134.76 £112.30
