PARK 520 L - 2014 - 13-6311-12 - Stiga Front Mower Body Works 01 Diagram

Description

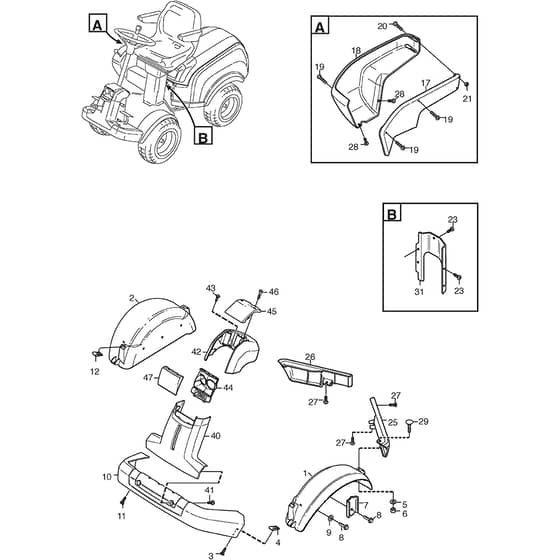

Stiga PARK 520 L Parts Diagram

Product Name - PARK 520 L

Model Year - 2014

Model Type - P 901 CH

Art.N - 13-6311-12

Engine Model -

	Part No.	Details
1	MO1137-0048-01 Available to backorder	Mud Guard. Front-Lh	£115.98 £96.65
2	MO1137-0048-02 Available to backorder	Mud Guard. Front-Rh	£115.42 £96.18
3	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
4	MO1134-4176-01 Available to backorder	Clips	£4.78 £3.98
5	MO112523040/0 In stock	Washer	£1.55 £1.29
6	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
7	MO1137-0088-01 Available to backorder	Support Plate	£2.24 £1.87
8	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
9	MO112523060/0 In stock	Washer	£1.55 £1.29
10	MO1137-0049-01 Available to backorder	Front Bumper	£43.63 £36.36
17	MO1134-4360-01 Available to backorder	Cover-Inner	£64.75 £53.96
18	MO1134-3979-01 Available to backorder	Cover-Outer	£102.06 £85.05
47	MO1137-0054-01 Available to backorder	Lamp Glass	£8.02 £6.68
