PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower PTO Diagram

Name: PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower PTO Diagram
SKU: park_520_dp_2f6226281_s16_pto-group
Price: 1.22 GBP
Availability: InStock

Part No. park_520_dp_2f6226281_s16_pto-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

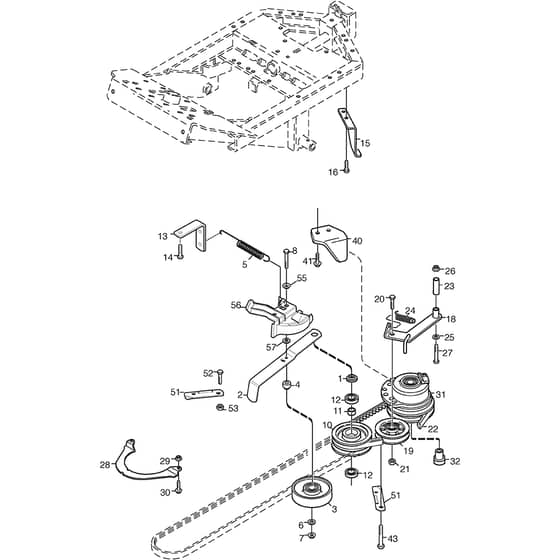

PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower PTO Diagram

Description

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2016-2017

Model Type - P 901 CH D

Art.N - 2F6226281/S16

Engine Model - Hatz 1B50V Diesel

	Part No.	Details
1	MO1134-5548-01 In stock	Spacer	£13.94 £11.62
2	MO1137-1124-01 Available to backorder	Tension Wheel Arm	£81.66 £68.05
3	MO387605007/0 Available to backorder	Tension Roller Assy	£59.12 £49.27
4	MO1134-1888-04 Available to backorder	Spacer	£9.01 £7.51
5	MO1134-5111-01 Available to backorder	Spring	£18.08 £15.07
8	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
10	MO387605002/0 In stock	Centre Belt Pulley	£83.06 £69.22
11	MO1134-0051-09 Available to backorder	Spacer	£13.66 £11.38
12	MO119216056/0 In stock	Ball Bearing	£22.25 £18.54
13	MO1134-5112-01 Available to backorder	Spring	£25.98 £21.65
14	MO9945-0816-16 Available to backorder	Screw	£2.24 £1.87
16	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
18	MO1134-3658-02 Available to backorder	Tension Arm	£89.39 £74.49
19	MO387605009/0 In stock	Tension Wheel	£50.68 £42.23
20	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
21	MO9739-1031-22 In stock	Nut	£1.97 £1.64
22	MO1134-9047-01 In stock	V-Belt Replaced by Service Code. 1134-9047-01	£44.45 £37.04
23	MO1134-1565-10 Available to backorder	Spacer	£8.22 £6.85
24	MO1134-3379-01 In stock	Spring	£17.87 £14.89
26	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
27	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
28	MO1134-3654-01 Available to backorder	Guard	£35.06 £29.22
29	MO112292102/0 In stock	Nut	£1.70 £1.42
30	MO9959-0612-16 Available to backorder	Screw	£1.46 £1.22
31	MO1134-7526-01 Available to backorder	Magnet Clutch	£285.73 £238.11
32	MO1134-5016-01 Available to backorder	Bushing	£29.57 £24.64
40	MO1134-4924-01 Available to backorder	Strut	£46.48 £38.73
43	MO9959-1025-16 Available to backorder	Screw	£2.69 £2.24
51	MO337546547/0 Available to backorder	Plate	£6.77 £5.64
52	MO112793102/0 In stock	Screw	£1.55 £1.29
53	MO112293201/0 In stock	Nut	£1.70 £1.42
54	MO325160039/0 Available to backorder	Spacer	£1.63 £1.36
55	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
56	MO337600000/1 Available to backorder	Protection	£7.62 £6.35
57	MO112523060/0 In stock	Washer	£1.55 £1.29
