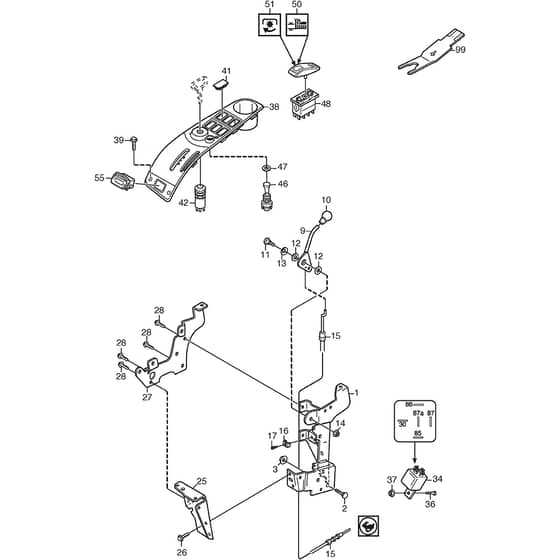

PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Hand Controls Diagram

Description

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2016-2017

Model Type - P 901 CH D

Art.N - 2F6226281/S16

Engine Model - Hatz 1B50V Diesel

Be the first to review this product

0 product questions

	Part No.	Details
2	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
3	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
9	MO1134-4077-02 Available to backorder	Lever	£26.33 £21.94
10	MO1134-4078-01 Available to backorder	Knob	£5.48 £4.57
11	MO1134-0240-00 In stock	Screw	£8.80 £7.33
12	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
13	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
14	MO112155000/0 In stock	Nut	£1.55 £1.29
15	MO187000203/0 Available to backorder	Throttle Cable	£26.04 £21.70
16	MO1137-0115-01 Available to backorder	Wire Clamp	£2.26 £1.88
17	MO9943-0516-16 Available to backorder	Screw	£1.22 £1.02
25	MO1134-6328-01 Available to backorder	Panel Bracket-Front	£20.56 £17.13
27	MO1134-6327-01 Available to backorder	Front Plate	£21.47 £17.89
28	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
34	MO1134-2871-03 Available to backorder	Relay	£43.64 £36.37
36	MO112789000/0 Available to backorder	Screw	£1.55 £1.29
37	MO9739-0531-22 Available to backorder	Nut	£2.12 £1.77
38	MO1134-6096-09 Available to backorder	Dashboard 4WD models	£114.29 £95.24
38	MO1134-6096-07 Available to backorder	Dashboard	£100.39 £83.66
39	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
41	MO1134-4129-01 Available to backorder	Cover	£5.76 £4.80
42	MO118450079/0 Available to backorder	Switch. Ignition Key Included	£154.86 £129.05
46	MO9400-0296-01 Available to backorder	Switch	£32.38 £26.98
47	MO9699-0090-02 Available to backorder	Washer	£1.97 £1.64
48	MO9400-0282-01 In stock	Switch	£75.31 £62.76
50	MO9400-0280-03 In stock	Switch Cover-Height Adjust	£17.87 £14.89
51	MO9400-0343-01 Available to backorder	Switch Cover-Pto	£8.87 £7.39
55	MO9400-0384-01 Available to backorder	Hour Meter	£83.81 £69.84
99	MO9400-0290-01 Available to backorder	Tool Tillbehör.Accessory	£32.38 £26.98
