PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Frame Diagram

Name: PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Frame Diagram
SKU: park_520_dp_2f6226281_s16_frame-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Frame Diagram

Description

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2016-2017

Model Type - P 901 CH D

Art.N - 2F6226281/S16

Engine Model - Hatz 1B50V Diesel

Be the first to review this product

0 product questions

	Part No.	Details
1	MO387800011/0 Available to backorder	Frame Front	£837.60 £698.00
2	MO1137-1119-02 Available to backorder	Fork	£168.92 £140.77
3	MO1134-0031-00 Available to backorder	Pivot Shaft Stop	£24.36 £20.30
4	MO9595-0262-00 Available to backorder	Locating Pin	£1.69 £1.41
6	MO9501-0504-01 Available to backorder	Grease Nipple M6 90 90°	£3.24 £2.70
7	MO1134-6046-01 Available to backorder	Frame-Rear (Park Diesel)	£598.28 £498.57
8	MO1134-5705-01 Available to backorder	Spacer	£22.81 £19.01
9	MO9547-0001-00 Available to backorder	Bearing	£29.56 £24.63
10	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
11	MO1134-5988-01 Available to backorder	Centre Shaft	£22.38 £18.65
12	MO1134-2171-01 Available to backorder	Spring	£19.30 £16.08
13	MO112521360/0 In stock	Washer	£1.55 £1.29
14	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
16	MO1134-6586-01 Available to backorder	Floor Plate	£168.92 £140.77
17	MO114369182/3 Available to backorder	Label	£63.35 £52.79
18	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
19	MO1134-5944-01 Available to backorder	Tank Shelf Assy	£274.51 £228.76
20	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
21	MO9959-0820-16 In stock	Screw	£1.55 £1.29
22	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
24	MO387457003/0 Available to backorder	Rear Bumper	£225.24 £187.70
25	MO1134-4100-01 Available to backorder	Plug	£4.37 £3.64
26	MO1134-0240-00 In stock	Screw	£8.80 £7.33
27	MO1134-4242-01 Available to backorder	Washer	£4.37 £3.64
28	MO9665-0002-00 Available to backorder	Washer	£2.26 £1.88
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO9943-0516-16 In stock	Screw	£1.22 £1.02

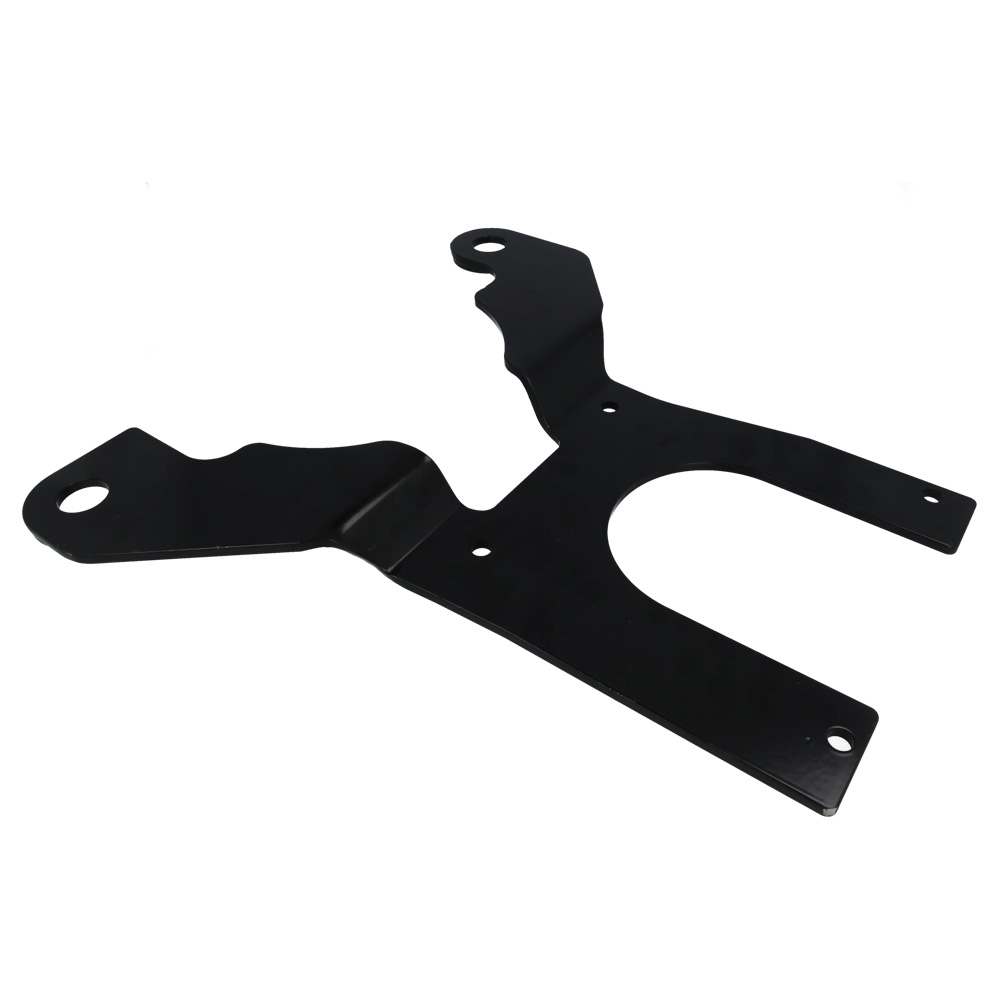

40	MO387547037/0 Available to backorder	Engine Bracket	£147.80 £123.17
41	MO387785261/0 Available to backorder	Engine Support	£114.02 £95.02

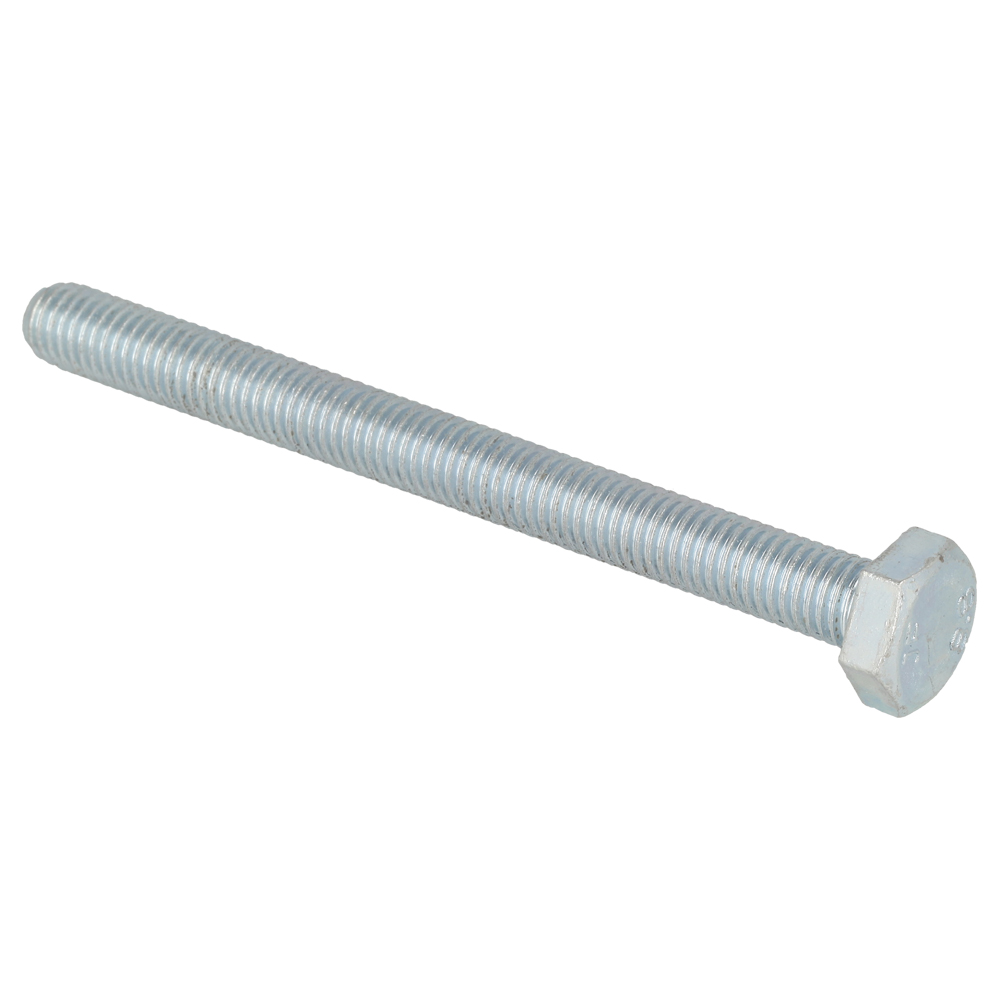

42	MO9997-1011-06 Available to backorder	Screw	£10.98 £9.15
44	MO322672201/0 Available to backorder	Washer	£6.04 £5.03

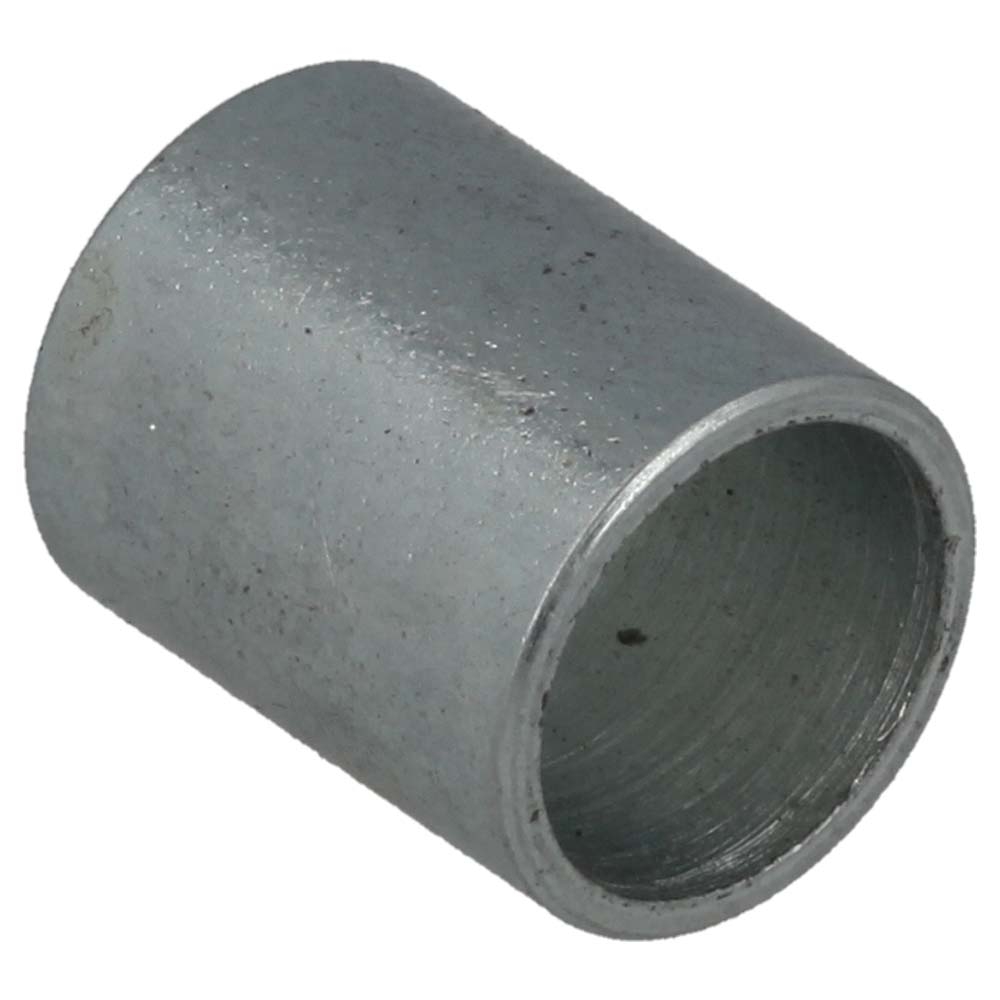

45	MO1134-4919-01 In stock	Spacer	£9.28 £7.73
46	MO9739-1031-22 In stock	Nut	£1.97 £1.64
47	MO1134-4915-01 Available to backorder	Support Cup	£14.35 £11.96

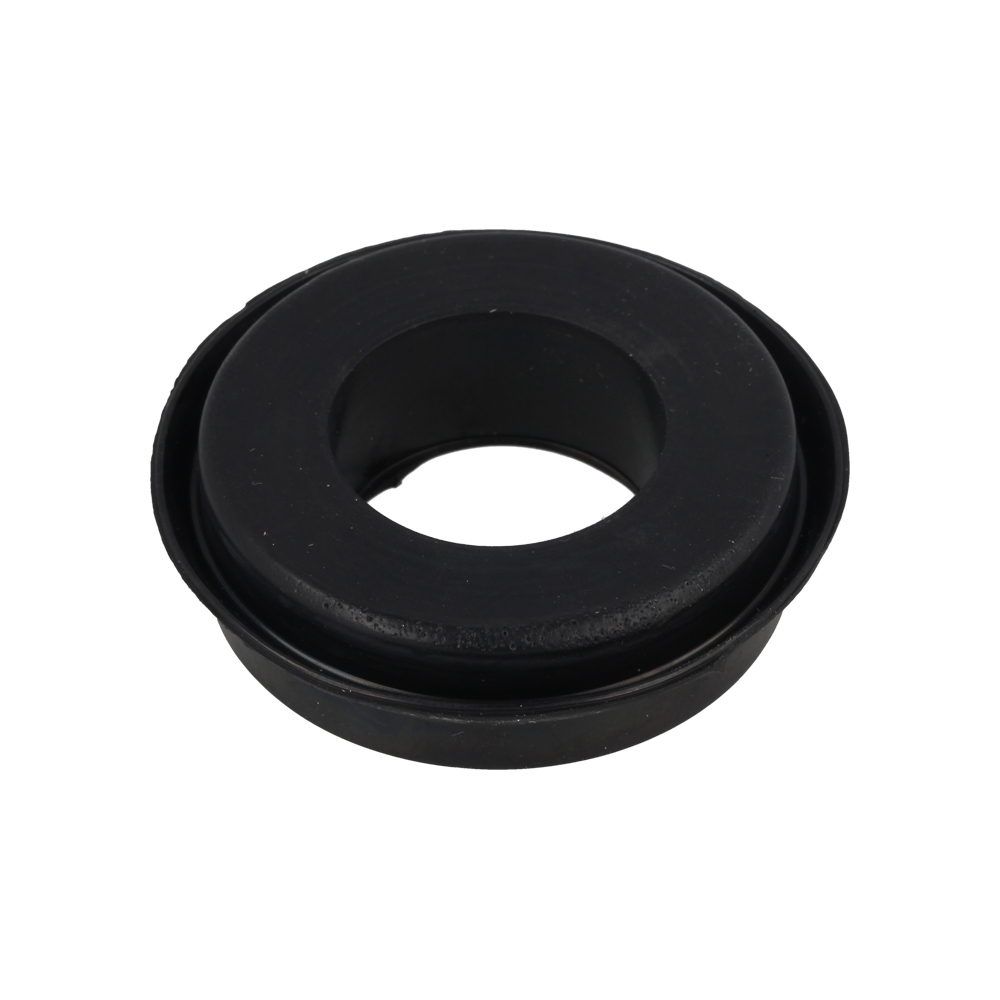

48	MO1134-4920-01 In stock	Vibration Absorber	£34.96 £29.13

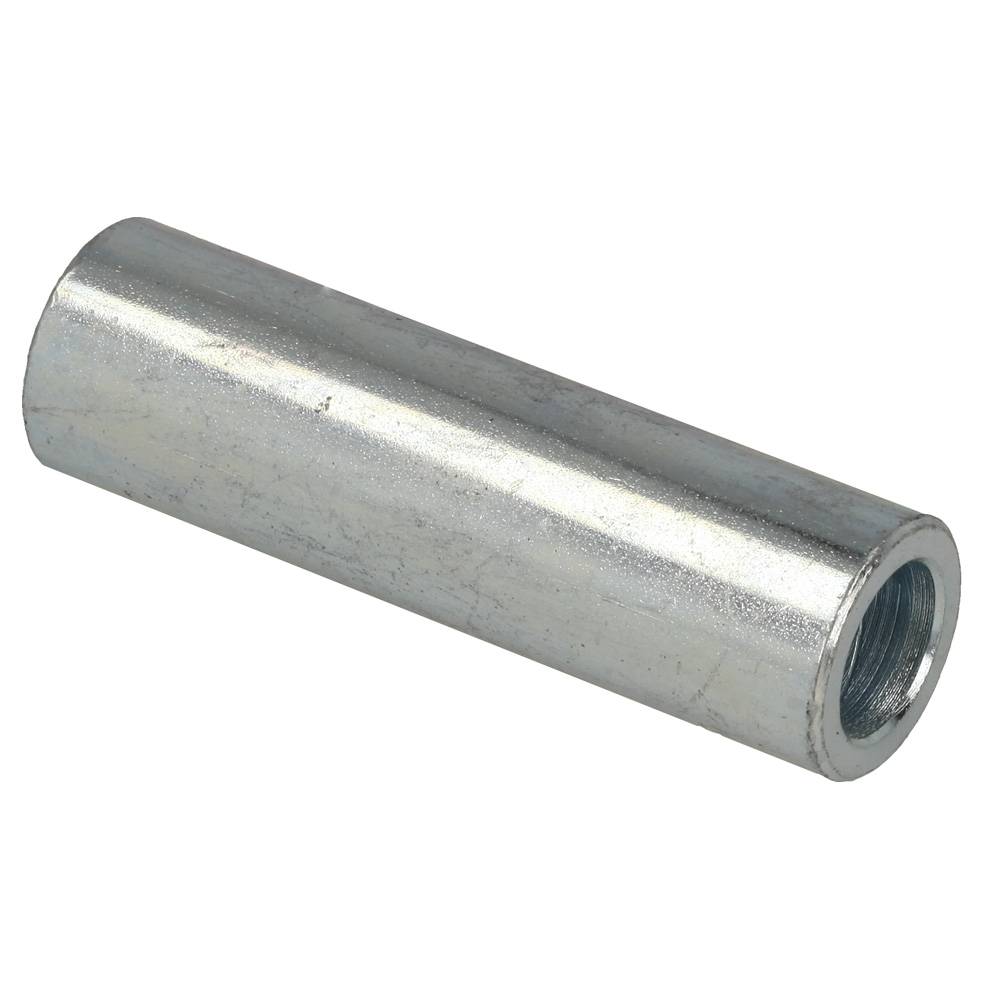

49	MO1134-0041-03 Available to backorder	Bushing L . 55 mm	£11.27 £9.39
50	MO1134-6887-01 Available to backorder	Collar L . 51.2 mm	£8.87 £7.39
51	MO9731-1031-22 Available to backorder	Nut	£2.04 £1.70
52	MO9699-0030-02 In stock	Washer	£1.97 £1.64
