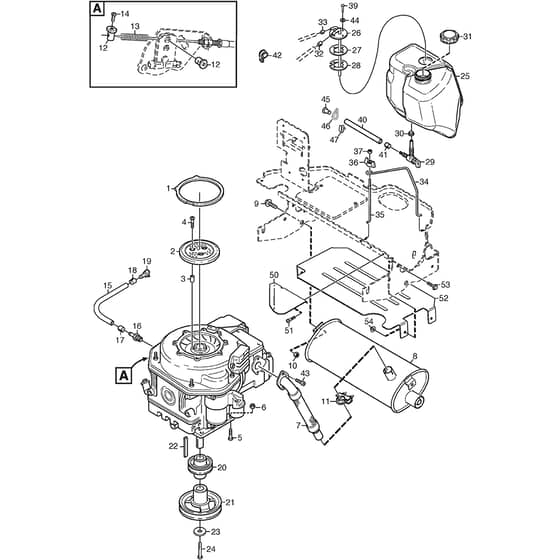

PARK 520 DP - 2016-2017 - 2F6226281/S16 - Stiga Front Mower Engine Diagram

Description

Stiga PARK 520 DP Parts Diagram

Product Name - PARK 520 DP

Model Year - 2016-2017

Model Type - P 901 CH D

Art.N - 2F6226281/S16

Engine Model - Hatz 1B50V Diesel

	Part No.	Details
1	MO1134-6463-01 Available to backorder	Seal Ring	£19.42 £16.18
2	MO1134-4962-01 Available to backorder	Fan Cover	£78.85 £65.71
4	MO112727793/0 Available to backorder	Screw	£1.55 £1.29
5	MO112794900/0 Available to backorder	Screw	£1.79 £1.49
6	MO9731-1031-22 Available to backorder	Nut	£2.22 £1.85
7	MO1134-6012-01 Available to backorder	Exhaust Pipe	£408.22 £340.18
8	MO187751507/0 Available to backorder	Muffler Assy	£344.90 £287.42
10	MO112154220/0 Available to backorder	Nut	£1.63 £1.36
11	MO9578-0011-01 Available to backorder	Tube Clamp	£14.22 £11.85
12	MO1134-6118-01 Available to backorder	Cable Nipple	£15.06 £12.55
13	MO1134-6126-01 Available to backorder	Spring	£12.53 £10.44
14	MO112788512/0 Available to backorder	Screw	£1.55 £1.29
15	MO1134-5827-04 Available to backorder	Oil Drain Assy Incl. pos 16 - 19	£33.79 £28.16
16	MO1134-5825-01 Available to backorder	Nipple	£70.38 £58.65
17	MO9578-0023-04 Available to backorder	Hose Clamp	£6.05 £5.04
18	MO1134-3499-02 Available to backorder	Hose Clamp	£3.25 £2.71
19	MO1134-5826-01 Available to backorder	Plug	£23.84 £19.87
20	MO1134-6139-01 Available to backorder	Engine Belt Pulley	£85.87 £71.56
21	MO1137-0208-01 Available to backorder	Engine Pulley	£43.63 £36.36
22	MO9600-0251-01 Available to backorder	Key	£6.46 £5.38
23	MO1134-5017-02 Available to backorder	Washer	£2.82 £2.35
24	MO112737315/0 Available to backorder	Screw L . 64 mm	£7.18 £5.98
25	MO1134-5938-02 Available to backorder	Fuel Tank	£257.34 £214.45
26	MO1134-6130-01 Available to backorder	Fuel Connection	£38.18 £31.82
27	MO1134-6136-01 Available to backorder	Sealing	£13.50 £11.25
28	MO337207611/0 Available to backorder	Flange	£41.22 £34.35
29	MO118563206/0 In stock	Fuel Shut-Off Valve	£23.65 £19.71
30	MO337260156/0 In stock	Grommet	£9.01 £7.51
31	MO125795001/1 In stock	Fuel Tank Cap	£7.97 £6.64
33	MO9578-0023-07 Available to backorder	Hose Clamp	£4.08 £3.40
34	MO1134-5942-01 Available to backorder	Tank Loop	£9.17 £7.64
35	MO1134-5996-01 Available to backorder	Tank Loop	£6.64 £5.53
36	MO1134-4481-02 Available to backorder	Wing Nut	£5.76 £4.80
37	MO112154510/0 In stock	Nut	£1.55 £1.29
38	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
39	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
40	MO1134-2975-15 Available to backorder	Fuel Tube Cutting length 0.36 mt	£16.10 £13.42
41	MO9578-0023-02 Available to backorder	Hose Clamp	£6.46 £5.38
42	MO1134-0994-02 Available to backorder	Tube Clamp	£6.77 £5.64
43	MO112760515/0 Available to backorder	Screw	£1.63 £1.36
44	MO112530060/0 Available to backorder	Spring Washer	£1.46 £1.22
45	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
46	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
47	MO133320506/0 Available to backorder	Fairlead	£1.39 £1.16
50	MO1134-6234-01 Available to backorder	Heat Deflector	£17.54 £14.62
51	MO9943-0516-16 In stock	Screw	£1.26 £1.05
52	MO1134-6251-01 Available to backorder	Heat Deflector	£38.00 £31.67
53	MO9959-0612-16 Available to backorder	Screw	£1.46 £1.22
54	MO112292102/0 In stock	Nut	£1.70 £1.42
